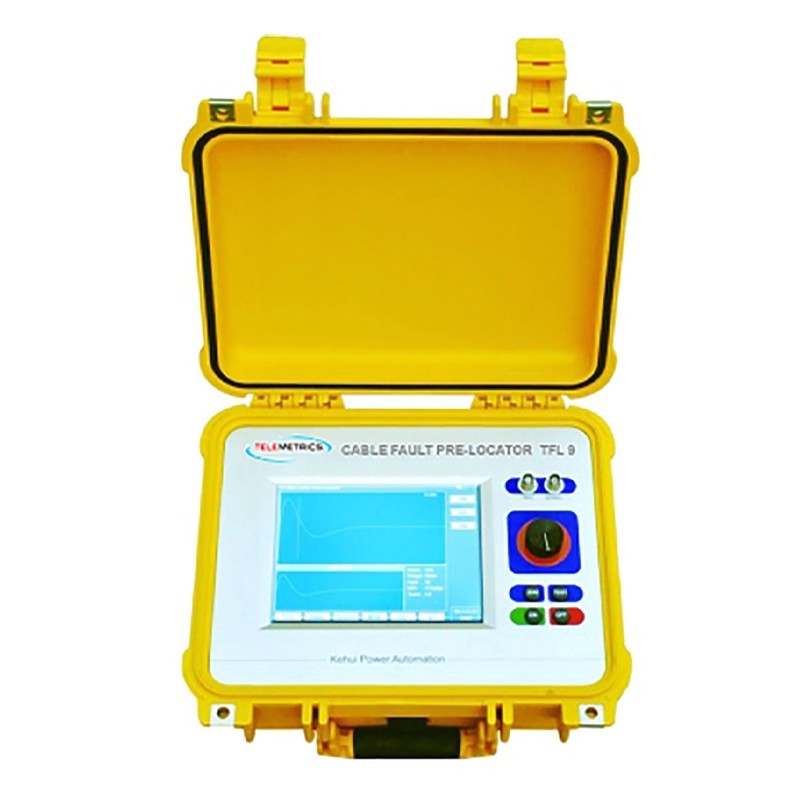

Motwane TFL 9 Cable Fault Pre locator
Specifications
| Country of Origin | India |
|---|---|
| Display | 8.4 inches / 640x480dots / Touch screen and Color LCD |
| Measuring range | 0 – 64km |
| Brand | Motwane |
| Operating Temperature | -20 ~ +50 °C |
| Dimensions | 330mm × 305mm ×152mm |
| Storage Temperature | -40 ~ +60 °C |
| Model | TFL 9 |
| Languages | English |
| Weight | 3 kg approx |
| Output Impedance | 5 - 80 Ohm |
| Sampling rate | 200MHz |
| Charging Voltage (V) | Input - 110 – 265V AC Output - 8.4V±10%DC |
| Type of Protection | IP 54 Splash proof and dust protected |
| Voltage of Transmitting Pulse | 30V |
| Width of Transmitting Pulse | 40nS – 7us |
| Voltage Withstand | 400V AC (50/60Hz) |
| Number of Echograms Memories | Greater than 100 |
| ICM Mode | Less than ±4m when detecting range Less than 4 km / Less than ±16m when detecting range Greater than 4Km |
| Location Error | TDR and MIM mode |
| Propagation velocity | 90-300m/μs |
| Operation time of rechargeable batteries | Approx. 5 h |
Key Features
- Pulse Reflection Method
- Multiple Impulse Method
- Impulse Current Method
- Interactive menu-guidance
- Touch screen and color LCD
- Measuring range up to 64km
- Host and slave USB port for communication
- Memory no less than100records
Product Description
TFL 9 Power Cable Fault Locator is a portable, easy to use cable fault pre-location instrument. It uses the time domain reflection (TDR), multiple impulse method (MIM), and Impulse current method (ICM) on low, medium and high voltage cables. Its measuring ranges enable pre-location on cable lengths from 0 m to 64km. TFL 9 is operated via function keys and touch screen, it is fully menu guided. This instrument is supplied with rechargeable lithium cell batteries.
Application
It is used for pre-location of short circuit, open circuit fault distance in TDR mode and low insulation / high resistance / flashing / intermittent fault in ICM / MIM mode with the help of suitable surge tester in power transmission and distribution network cables.
Standard Accessories
- Current Coupler
- Coupler Cable
- Charger
- Testing Cable
- Carrying case
- Instruction / User Manual
Available on EnvMart, these Cable Trackers are designed for precise wire tracing and continuity testing in electrical installations. Motwane Cable Trackers are known for their accuracy and efficiency, making them essential tools for electricians, telecom technicians, and network engineers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features an 8.4-inch touch screen display with a resolution of 640x480 dots.
This unit weighs approximately 3 kg.
The operating temperature range is from -20 to +50 °C.
It uses the time domain reflection (TDR), multiple impulse method (MIM), and impulse current method (ICM) for fault detection.
The charging voltage input range is 110 to 265V AC.
The TFL 9 has an IP 54 rating, making it splash proof and dust protected.
It has greater than 100 echogram memories for storing data.
The sampling rate of the TFL 9 is 200 MHz.
Included accessories are a current coupler, coupler cable, charger, testing cable, carrying case, and instruction manual.
The TFL 9 can withstand voltages up to 400V AC at 50/60Hz.
