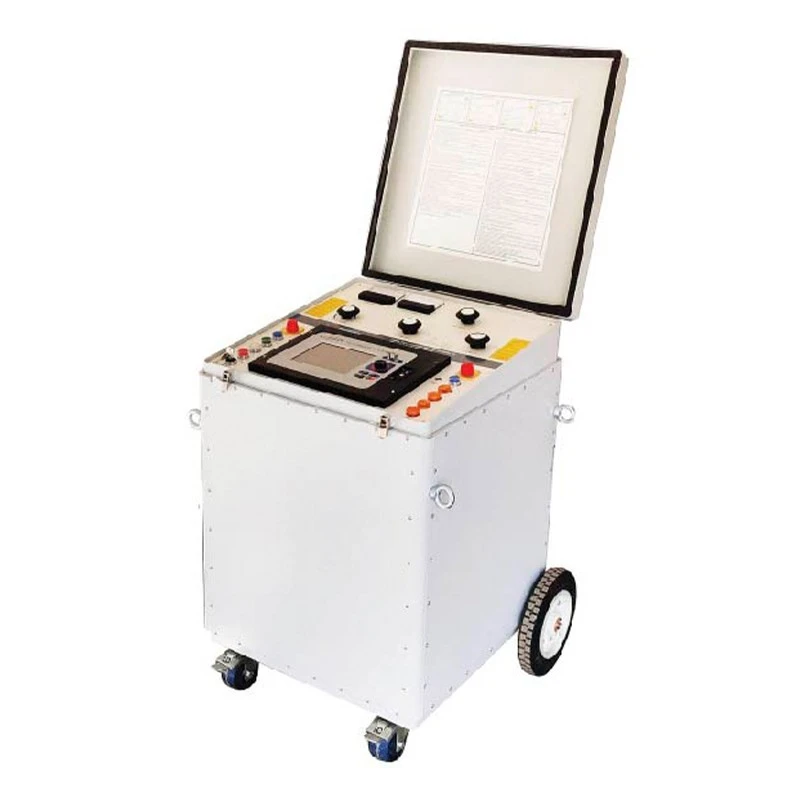

Motwane COMPAC 32 Cable Fault Locating System
Specifications
| Country of Origin | India |
|---|---|
| Display | 8.4 inches / 640x480dots / Touch screen and Color LCD |
| Measuring range | 0-64km |
| Brand | Motwane |
| Operating Temperature | -20~+50°C 0 Deg C ~ 55 Deg C |
| Dimensions | 600(L) x 600(W) x 1000(H) mm with Rubber wheels |
| Storage Temperature | -40~+60°C -5 Deg C ~ 60 Deg C |
| Protection Type | Over current tripping |
| Current | 60 mA |
| Model | COMPAC 32 |
| WORKING Voltage (V) | 32 kV max |
| Weight | 180 Kg Approx. |
| Operating Mode | Surge / MIM / DC/Proof Test / Pre-location |
| Indication | Analog moving coil meter for output voltage (kV) Indication Analog moving coil meter for output leakage current (mA) Indication Leakage current trip lamp indication ON/OFF lamp indication Respective mode select lamp indication Analog moving coil meter for output voltage (kV) Indication Over Heat indication Visual lamp indication of ARC/SIM |
| Protection Class | IP 54 (Top & Back Flaps Closed) |
| Sampling rate | 100MHz (10ns) |
| Charging Voltage (V) | Input - 110 265V AC Output - 8.4V±10%DC |
| Safety Protection | Variac Zero inter-lock Output cable plugs inter-lock HV Switch inter-lock Mode Switch inter-lock Over Heat protection Emergency OFF switching |
| Impulse Mode | Single and Auto |
| Auto Impulse Sequence | 1.5 / 3 and 6 seconds intervals or as per customer request |
| Earth Discharge | Soft automatic discharge through in-built solenoid |
| Over Load Protection | Input current Limiter switch Fast blow fuse in mains and controlled supply |
| Burn Current | 60 mA |
| Voltage of Transmitting Pulse | 30V |
| ICM Mode | Less than +4m when detecting range ≤4 km ≤±16m when detecting range Greater than 4Km |
| Location Error | TDR and MIM mode |
| Propagation velocity | 90-300m/μs |
| Operation time of rechargeable batteries | Approx. 5 h |
| Surge Mode - Width of transmitting pulse | 40 ns-3.56 µs |
| Surge Mode - Output Ranges | 0-8 / 16 / 32 kV selectable & continuously variable |
| Surge Mode - Voltage withstand | 400V AC (50/60Hz) |
| Surge Mode - Output Energy | 1000 Joules full energy at each range |
| Surge Mode - Output impedance | 580 Ohm |
| Number of Echograms | Greater than 100 Memories |
| ARC/SIM Mode Applications | Pre-location of high resistance intermittent faults |
| ARC Stabilization Time | 20 ms approx |
| HV DC Test Mode Output Voltage Ranges | 32 kV continuously variable |
| Surge Carrying Capacity | 1000 Joules Max (optional 2000J) |
| Output/Proof Test Current | 5 / 10 / 20 mA |
| General Specification Power Supply | 230V AC±10% 50/60 Hz Single phase |
| Sheath Faults Output Voltage (V) | 0-8 kV continuously variable |
Key Features
- Operating Mode Surge, Arc / SIM, DC / Proof Test/ Pre-location and Sheath Fault
- Pin-point location of cable faults in Low, Medium and High voltage cables by acoustic method.
- Perform DC / Proof test up to 32 kV.
- DC Test Current 10/20mA.
- Burn test up to 32 kV - 60mA for short period.
- Surge Output voltage selectable in three ranges 8, 16 and 32 kV continuously variable.
- Full energy delivering capacity at each select range.
- High Surge energy of 1000 Joules (optional 2000J)
- LT Range 0-4kV - 1000 Joules (optional 2000J)
- Single Impulse and 1.5, 3 and 6 seconds intervals or as per sequence customer request.
- Pre-location of cable faults distance with TDR, ICM, SIM/MIM & Decay mode.
- Big LCD touchscreen color display.
- Maximum measuring pre-location range up to 64km.
- Sheath fault location up to 8kV – 60mA.
Product Description
The Cable Fault Locating System COMPAC 32 is a system to provide quick, effective, accurate, and safe fault location. It is specifically designed for service, industrial, and power utility companies. It is a multi-functional system in a trolley mounting design. The system includes an HV surge tester, DC high voltage test set, arc reflection, and burn/proof test for cable fault location of short circuit, open circuit, high resistance, intermittent, and sheath faults. After identifying the type of fault, pre-location of the fault can be determined using the latest pre-location methods such as TDR, MIM, and ICM.
Application
The Cable Fault Locating System COMPAC 32 is used to perform DC high pot test, Pre-location of fault distance with the help of pre-locator unit and Pin-point underground cable fault in acoustic method with the help of suitable Surge wave receiver and Pin-point sheath faults in power transmission and distribution networks or service provider companies.
Standard Accessories:
- HV Output Cable 10 sq mm single core screen cable 15-meter length with heavy duty clamp wound on cable drum
- Hard discharge rod
- Instruction/Operating Manual
- Mains supply 1.5 sq. mm 3 core cable 15-meter length wound on cable drum
- Printer Software CD for Pre-locator
- Raxin Cover
- Yellow/Green 10 sq mm earthing cable 15-meter length with heavy duty clamp wound on cable drum
- For TDR single core shielded cable 15-meter length wound on cable drum
Available on EnvMart, these Cable Trackers are designed for precise wire tracing and continuity testing in electrical installations. Motwane Cable Trackers are known for their accuracy and efficiency, making them essential tools for electricians, telecom technicians, and network engineers.
