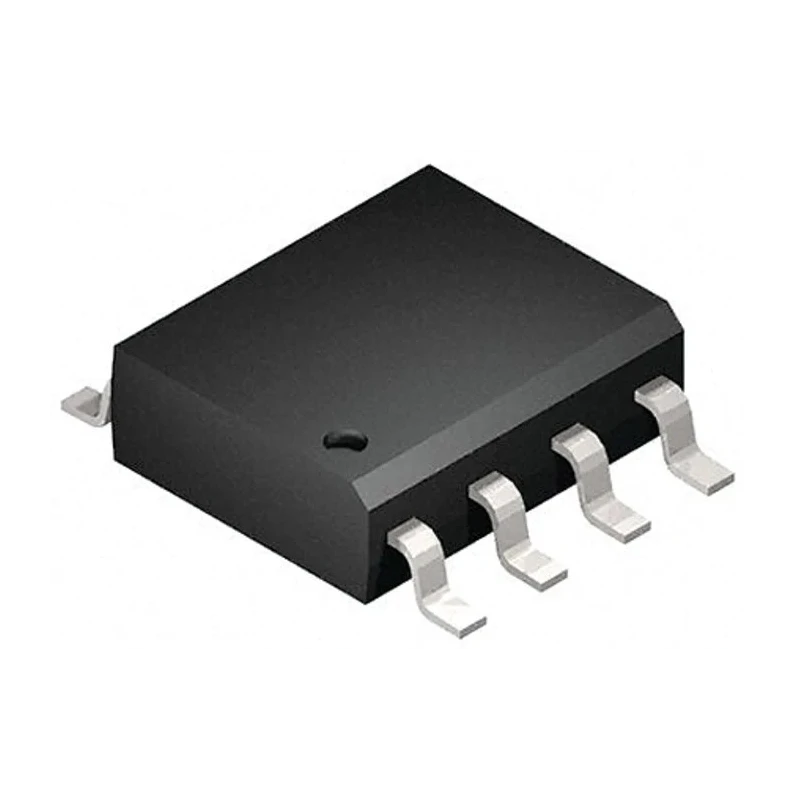

onsemi Logic Level Translator Uni-Directional ECL to LVCMOS/LVTTL 8-Pin SOIC MC100EPT21DG

onsemi MC100EPT21DG is a uni-directional Logic Level Translator integrated circuit that interfaces differential Emitter Coupled Logic (ECL) families including LVPECL, LVDS, and CML signals with TTL and CMOS logic levels such as LVTTL and LVCMOS. Packaged in a compact 8-pin SOIC surface mount form factor measuring 5mm in length and 1.5mm in height, this IC provides reliable signal translation for complex electronic designs.

This device supports a maximum propagation delay time of 2 nanoseconds under typical load conditions, ensuring high-speed communication suitable for data conversion and timing-critical applications. The supply voltage range of 3V to 3.6V and output drive capability of 24mA (low-level) and -3mA (high-level) allow it to be integrated into various voltage domains and systems.

Designed to operate over a broad industrial temperature range from -40°C to 85°C, the MC100EPT21DG excels in diverse environments including telecommunications, computing, instrumentation, and embedded controls. The IC contains two elements per chip, enabling multiple signal paths or channel usage.

Mounting is surface mount technology (SMT) friendly, facilitating assembly on modern printed circuit boards (PCB) with small footprint requirements. Although it lacks automotive-specific certifications, it is widely used in industrial and commercial electronic circuit designs requiring fast and precise logic level translation.

Uni-directional logic level translation between ECL families and LVTTL/LVCMOS. High-speed operation with 2ns propagation delay time. Compact 8-pin SOIC surface mount package. Wide supply voltage range of 3V to 3.6V. Operating temperature from -40°C to 85°C.

Suitable for telecommunications, industrial, and computing applications. Includes 2 logic elements for multiple channel usage. Output drive currents optimized for TTL/CMOS logic. Designed for SMT PCB mounting with small form factor.
