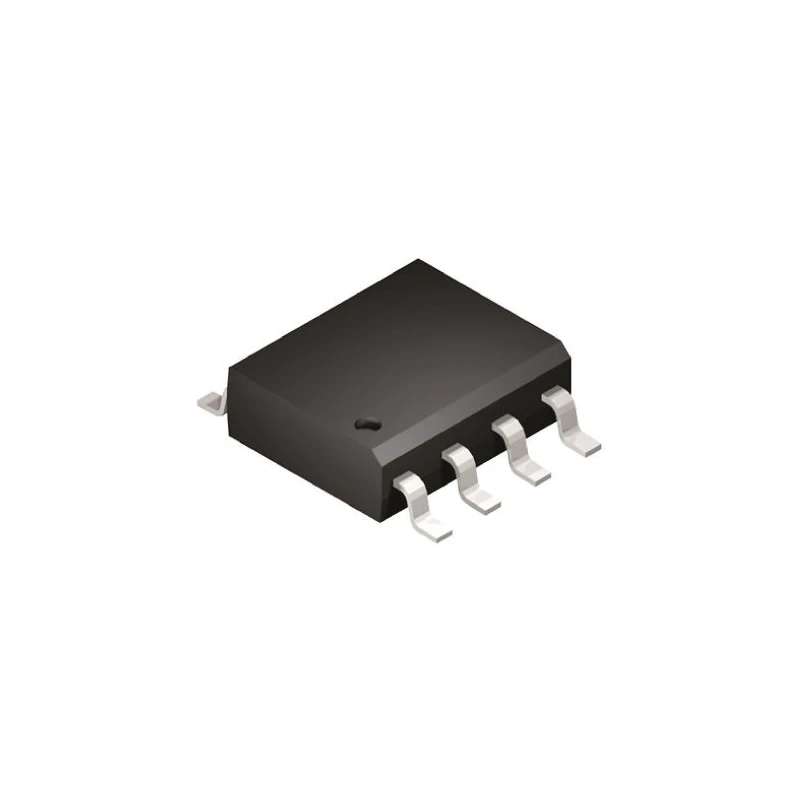

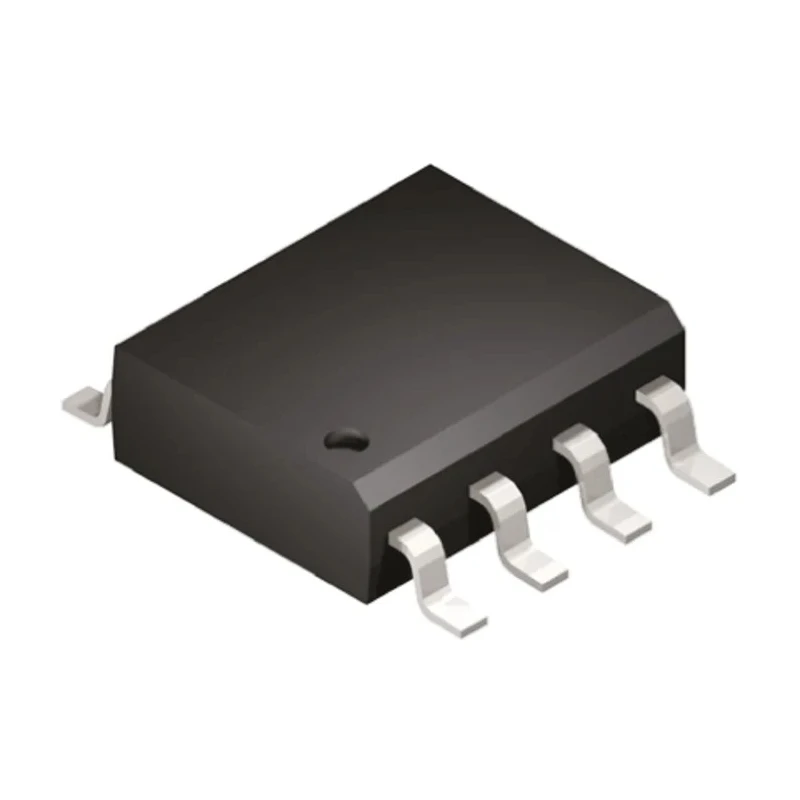

onsemi Logic Level Translator Uni-Directional 2 Elements TTL to PECL 3-3.6V Surface Mount SOIC 8-Pin MC100EPT20DG

onsemi MC100EPT20DG is a high-performance uni-directional logic level translator designed to interface signals between TTL, CMOS, and PECL logic families. This device integrates 2 translator elements within an 8-pin SOIC surface mount package, making it ideal for compact electronic circuit designs.

Operating with a minimum supply voltage of 3 V and maximum of 3.6 V, it provides robust differential outputs with maximum output currents of 50 mA (low level) and 100 mA (high level). Its maximum propagation delay time of 2 nanoseconds ensures fast signal transitions, suitable for high-speed digital applications.

The device supports industrial operating temperature ranges from -40°C to 85°C, ensuring reliability in harsh environments. The 5 mm length and 1.5 mm height footprint facilitate easy integration on densely populated printed circuit boards.

The MC100EPT20DG is commonly used in industrial, electronics manufacturing, and laboratory setups where precise logic level translation with differential output is needed. It supports ECL logic levels and is compatible with various logic interface standards.

Package contents include the onsemi MC100EPT20DG translator IC in an 8-pin SOIC package, surface mount ready for PCB assembly. This translator IC supports uni-directional translation from TTL and CMOS to PECL levels. Compact 8-pin SOIC surface mount package for efficient PCB space utilization.

High-speed operation with a maximum propagation delay of 2 ns. Wide operating temperature range from -40°C to 85°C suitable for industrial use. Maximum supply voltage rating of 3.6 V for flexible power applications. Designed to deliver up to 100 mA maximum high-level output current with differential output type.
