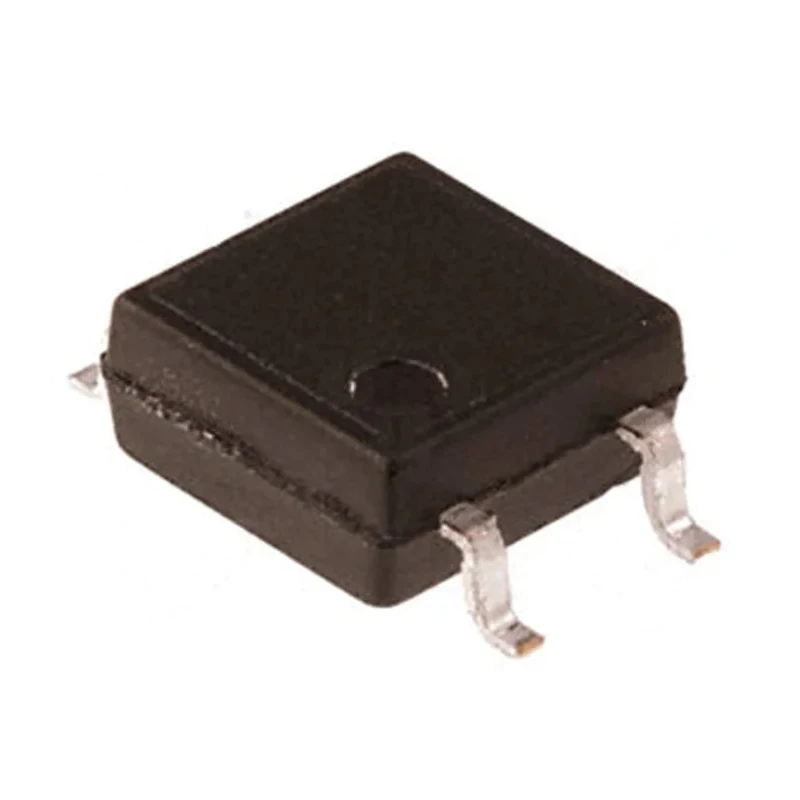

Texas Instruments 2-Element Uni-Directional ESD Protection Array 4-Pin SOP TPD2E001DZDR

Texas Instruments model TPD2E001DZDR is a 2-element uni-directional ESD protection array designed to protect sensitive electronic components from damaging electrostatic discharges. This device features a complex diode configuration and is packaged in a 4-pin SOP surface mount package, suitable for compact PCB layouts.

Operating over a wide temperature range of -40°C to 85°C, this protection array ensures stable performance in diverse industrial and commercial environments. Its minimum breakdown voltage is 11 volts, with a clamping voltage rated at 100 volts to effectively suppress transient voltage spikes.

The unit features a low maximum reverse leakage current of 1 nanoampere, minimizing power consumption during normal operation. It conforms to the automotive standard AEC-Q100, assuring high reliability for automotive electronics and other critical applications.

Its compact dimensions - 3.04 mm in length, 1.4 mm in width, and 1.07 mm in height - enable easy integration into space-constrained designs. Each chip contains two elements, providing dual-line protection in a single small package.

This ESD protection array is ideal for safeguarding USB 3 interfaces and other high-speed data lines against electrostatic and transient voltage damage, improving device durability and system stability.

Uni-directional diode configuration suited for sensitive circuitry protection. Minimum breakdown voltage of 11 volts ensures reliable clamping performance. Surface mountable in a compact SOP package with 4 pins. Clamping voltage of 100 volts for effective transient suppression.

Operating temperature range from -40°C to 85°C for versatile use. Low maximum reverse leakage current of 1 nanoampere reduces power loss. Complies with automotive standard AEC-Q100 for high reliability. Dimensions are 3.04 mm length, 1.4 mm width, and 1.07 mm height.

Two elements per chip provide effective multiple line protection.

This product is widely used in industrial electronics, automotive applications, laboratory instrumentation, telecommunications, and commercial devices requiring high-performance electrostatic discharge protection.
