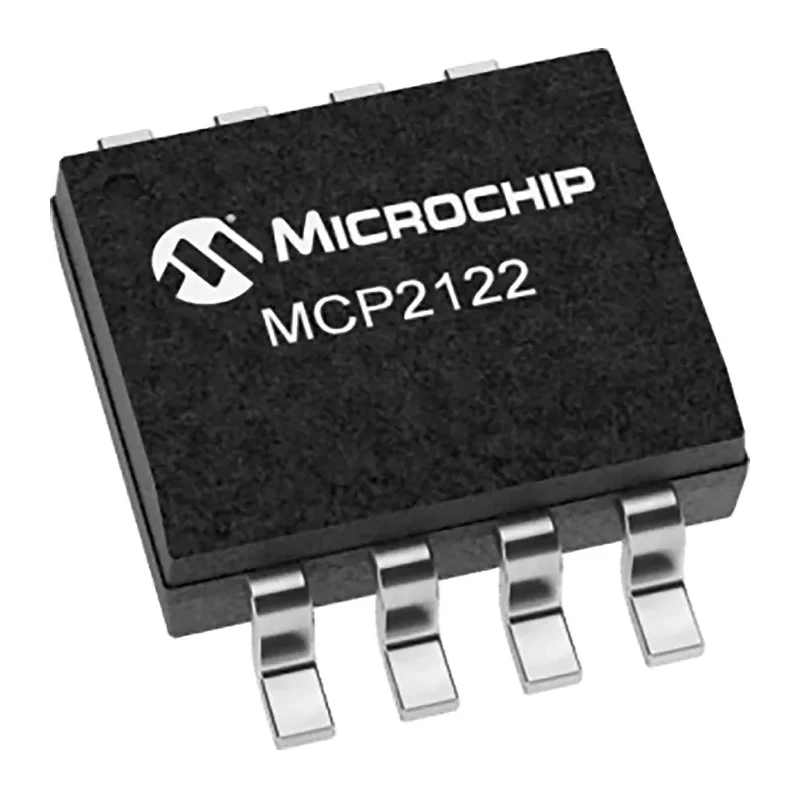

Microchip Data Acquisition IC Encoder/Decoder 8 to 16 Bit Resolution 115.2 kBd Data Rate SOIC 8-Pin MCP2122T-E/SN
Specifications
| Country of Origin | United States |
|---|---|
| Resolution | 8 to 16 Bit |
| Brand | Microchip |
| Height | 1.5mm |
| Length | 4.9mm |
| Model | MCP2122T-E/SN |
| Mount Type | Surface |
| Series | MCP2122 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Sub Type | Encoder/Decoder |
| Minimum Operating Temperature | -40°C |
| Additional Feature | Pinout compatible with HSDL-7000 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| UART to IrDA Standard Encoder/Decoder | Interfaces with IrDA Standard Compliant Transceiver |
| Baud Rates | Up to IrDA Standard 115.2 Kbaud Operation Transmit/Receive Formats (Bit Width) Supported: 1.63μs |
Key Features
- This IC converts serial data from UART bitstreams to IrDA standard bitstreams and vice versa accurately.
- It supports baud rates up to the IrDA standard 115.2 Kbaud for reliable communication.
- The device is pinout compatible with the HSDL-7000 for easy integration.
- It operates over a supply voltage range from 1.8V to 5.5V, suitable for varied power conditions.
- Operates efficiently in low-power mode consuming only 2 μA at 1.8V and 125°C.
- Designed to function from a temperature range of -40°C up to 125°C, ensuring robustness.
- Complies with the IrDA Standard Physical Layer Specification version 1.3 for interoperability.
- The package dimensions are compact with a height of 1.5mm and length of 4.9mm.
Product Description
The Microchip MCP2122T-E/SN is a highly efficient Data Acquisition IC designed for encoding and decoding serial data streams between UART and IrDA standard bitstreams. It supports resolutions from 8 to 16 bits and operates at data rates as high as 115.2 kBd, making it suitable for high-speed communication needs in industrial, automotive, and telecommunications applications.
This device requires an input clock that is 16 times the needed baud rate and is pinout compatible with the HSDL-7000, enabling hassle-free upgrades or replacements. It operates on a wide voltage range from 1.8V to 5.5V and maintains a low power profile with just 2 μA consumption in low-power mode, even at elevated temperatures up to 125°C.
Manufactured in the United States, this IC complies fully with the IrDA Standard Physical Layer Specification version 1.3, ensuring compatibility with IrDA compliant transceivers. It features an 8-pin SOIC package with compact dimensions and a low profile height of 1.5mm, optimizing space efficiency on circuit boards.
The MCP2122T-E/SN operates reliably across a wide temperature range from -40°C to 125°C, making it suitable for harsh industrial environments and automotive systems. Its robust design is also lead-free, supporting environmental safety standards.
Typical applications include industrial data logging, wireless communication devices, and embedded systems requiring reliable serial-to-infrared data conversion. This product integrates seamlessly into systems that demand precision encoding and decoding of UART and IrDA bitstreams with minimal power consumption.
Converts serial UART data to IrDA standard bitstreams and vice versa. Pinout compatible with HSDL-7000 for easy system integration. Data rates up to 115.2 kBd for high-speed communication. Wide supply voltage range from 1.8V to 5.5V supports diverse applications.
Low power consumption of 2 μA in standby mode at elevated temperatures. Operational temperature range from -40°C to 125°C ensures durability. Compact 8-pin SOIC package with 1.5mm height and 4.9mm length. Complies with IrDA Standard Physical Layer Specification v1.3.
Explore the full range of Data Acquisition ICs at EnvMart for comprehensive solutions tailored to your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports data rates up to 115.2 kBd, making it suitable for high-speed communication needs.
It operates over a supply voltage range from 1.8V to 5.5V, accommodating various power conditions.
This unit functions reliably across a temperature range from -40°C to 125°C, suitable for harsh environments.
The MCP2122T-E/SN supports resolutions from 8 to 16 bits.
Yes, it is pinout compatible with the HSDL-7000, facilitating easy integration into existing systems.
The package dimensions are 4.9mm in length and 1.5mm in height, allowing for compact design.
It comes in an 8-pin SOIC package, which is suitable for surface mounting.
In low-power mode, it consumes only 2 μA at 1.8V, optimizing energy efficiency.
It complies with the IrDA Standard Physical Layer Specification version 1.3 for interoperability with IrDA compliant transceivers.
Typical applications include industrial data logging, wireless communication devices, and embedded systems requiring reliable serial-to-infrared data conversion.
The device requires an input clock that is 16 times the needed baud rate for operation.
This product is manufactured in the United States.
