Renesas Electronics Programmable Timer Circuit Surface Mount 28-Pin PLCC 4.5-5.5V CS82C54-10Z96

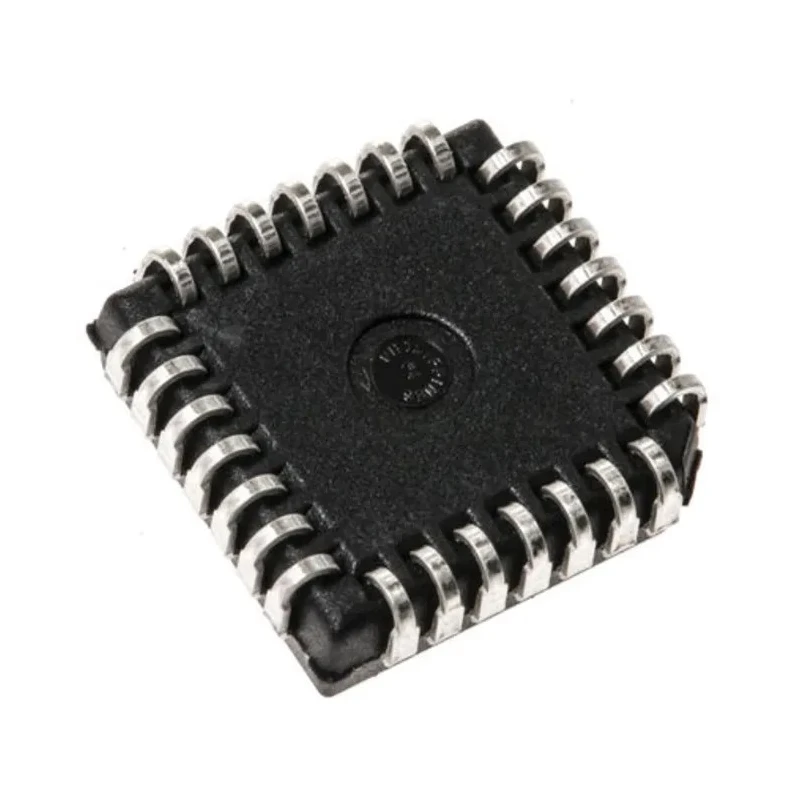

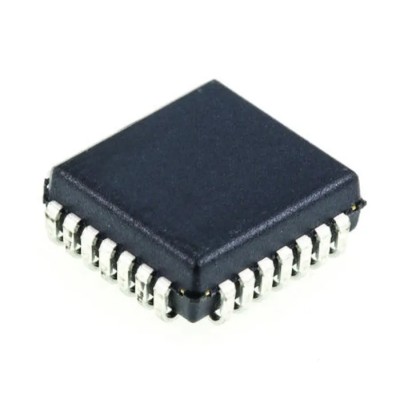

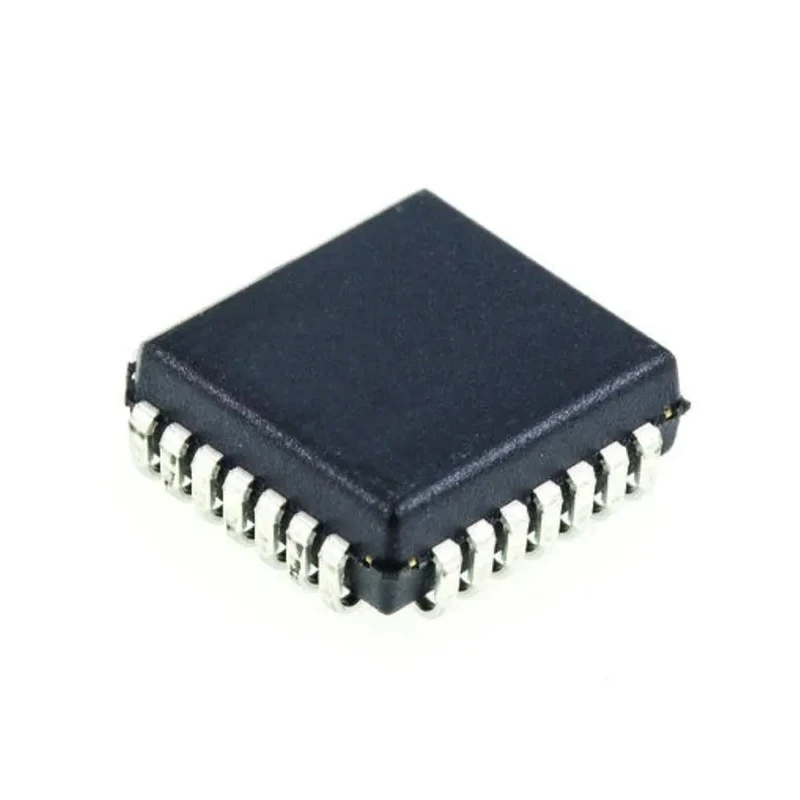

Renesas Electronics CS82C54-10Z96 Programmable Timer Circuit is a high quality, surface mount electronic component featuring a 28-pin PLCC package. It includes one independent internal timer ideal for interval timing applications within industrial, laboratory, and embedded system environments. Operating at a minimum supply voltage of 4.5 V up to a maximum of 5.5 V, it provides reliable performance in standard operating temperature ranges from 0°C to 70°C.

This timer supports clock input frequencies from 8 MHz to 12 MHz, enabling flexible timing and frequency control suitable for precision electronic timing applications. With six programmable counter modes and the ability to count in binary or BCD formats, it provides versatile functionality compatible with TTL logic levels. The device features a status read back command to monitor timer states and ensure accurate timing operations.

The compact 28-pin PLCC package measures 11.58 mm in length and 3.69 mm in height allowing integration into densely packed electronic assemblies. The product is RoHS compliant ensuring it meets environmental standards for hazardous substance reduction, making it suitable for contemporary manufacturing standards.

Typical applications include use in industrial electronics, embedded system designs, laboratory instruments, and manufacturing process controls requiring precise timing and interval measurement.

Contains one independent 16-bit timer for precise interval measurement. Supports 8 MHz to 12 MHz clock input frequency for flexible timing applications. Offers six programmable counter modes for versatile functionality. Features status read back command for monitoring timer status.

Supports binary or BCD counting, compatible with TTL logic levels. Operates with a single 5 V power supply ensuring low power consumption. Designed to operate within 0°C to 70°C temperature range for standard environmental conditions.

Complies with RoHS standards for environmental safety. Compact package size of 11.58 mm length by 3.69 mm height.

This Renesas Electronics programmable timer circuit offers dependable performance for electronic timing needs in a variety of industrial, laboratory, and embedded electronic applications. Browse EnvMart’s extensive Semiconductor catalog for related Timer Circuits and electronic components.
