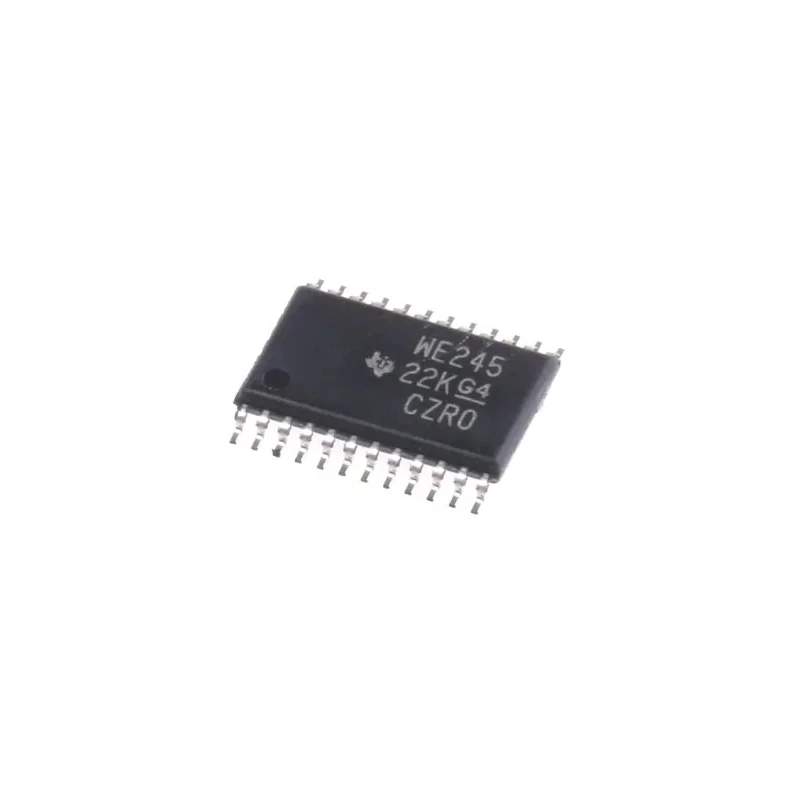

Texas Instruments Voltage Level Shifter Bus Transceiver Bi-Directional 1 Level Translator 24-Pin TSSOP SN74AVC8T245PW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.15mm |
| Length | 7.8mm |
| Model | SN74AVC8T245PW |
| Mount Type | Surface |
| Output type | 3 State |
| Series | SN74AVC8T245 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 24 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | AVC |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 1.2V |
| Maximum High Level Output Current | -12mA |
| Maximum Propagation Delay Time @ CL | 3.8ns |
| Direction Type | Bi-Directional |
| Maximum Low Level Output Current | 12mA |
| Translation | Level Translator |
Key Features
- Supports bi-directional voltage level shifting for seamless signal interfacing.
- Operates at a minimum supply voltage of 1.2V and maximum of 3.6V.
- Maximum propagation delay time of 3.8 nanoseconds ensures fast signal processing.
- Features a 3-state output type for flexible bus control.
- Compact 24-pin TSSOP surface-mounted package with 7.8mm length and 1.15mm height.
- Rated for operation in temperatures from -40°C to 85°C, suitable for industrial environments.
- Maximum low-level output current of 12mA and maximum high-level output current of -12mA.
- Designed without automotive standard certification, targeting general semiconductor applications.
Product Description
Texas Instruments SN74AVC8T245PW is a voltage level shifter bus transceiver designed for efficient bi-directional voltage translation between different logic voltage levels. It supports a single level translator function and comes in a compact 24-pin Thin Shrink Small-Outline Package (TSSOP), facilitating space-saving surface mounting.
The device operates across a supply voltage range from 1.2V to 3.6V, allowing compatibility with a wide spectrum of digital logic circuits. Its maximum propagation delay time of 3.8 nanoseconds enables high-speed switching suitable for various industrial and electronic applications. Output circuitry includes a 3-state output capability which supports flexible bus communication.
Operating temperature ranges from -40°C to 85°C make this device suitable for demanding environments, including industrial control systems, consumer electronics, and embedded applications.
The SN74AVC8T245PW provides a maximum low-level output current of 12mA and a maximum high-level output current of -12mA, ensuring reliable interfacing with downstream components. It is not certified for automotive standards but meets general semiconductor quality requirements.
The compact TSSOP package measures 7.8mm in length and 1.15mm in height, supporting high-density PCB layouts and automated surface-mount technology assembly. Supports bi-directional voltage shifting for versatile logic level translation.
Compatible with supply voltages from 1.2V to 3.6V for broad application use. Fast 3.8 nanosecond maximum propagation delay optimizes performance. 3-state outputs enable bus control flexibility. Robust temperature rating from -40°C to 85°C for industrial reliability.
Compact 24-pin TSSOP package ideal for surface mounting on PCB. Maximum output currents of ±12mA for stable signal driving. Designed primarily for electronics manufacturing, industrial controls, and embedded systems.
This Texas Instruments SN74AVC8T245PW level shifter is widely used in semiconductor applications requiring reliable voltage translation for logic devices. It is suitable for industrial environments, electronics prototyping, and production of advanced digital systems.
Explore more semiconductor and translator IC options at EnvMart to enhance your electronic designs and manufacturing efficiency.
