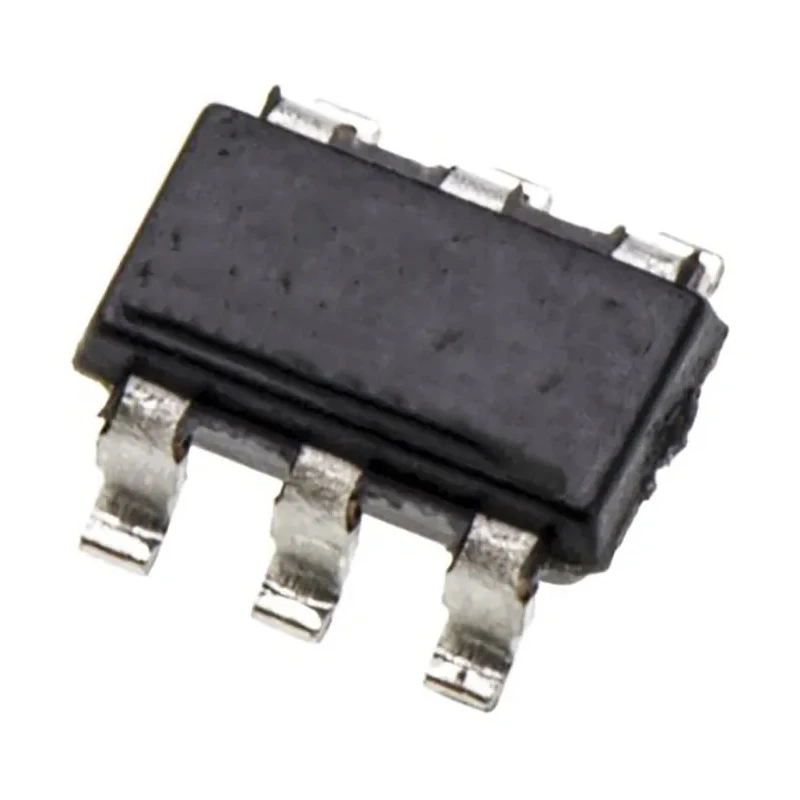

Maxim Integrated Voltage Current Sensing Amplifier Single Supply 1.7V-5.5V Low Power SOT-23 6-Pin MAX44284FAUT+T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 1.3mm |
| Length | 3mm |
| Model | MAX44284FAUT+T |
| Mount Type | Surface |
| Output type | Voltage |
| Series | MAX44284 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 6 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.7V |
| Supply Current | 41.5μA |
| GBP - Gain Bandwidth Product | 3kHz |
| CMRR - Common Mode Rejection Ratio | 91.3dB |
Key Features
- Operates with a single supply voltage range of 1.7V to 5.5V.
- Low supply current of only 41.5μA ensures energy efficient operation.
- High common-mode rejection ratio (CMRR) of 91.3dB for accurate sensing.
- Small 6-pin SOT-23 surface mount package with 3mm length and 1.3mm height.
- Temperature range from -40°C to +125°C supports automotive applications.
- Provides voltage output type suitable for signal processing.
- Optimized for use with small current-sense resistors enhancing power conversion efficiency.
- Four fixed gain options simplify amplifier design flexibility.
Product Description
Maxim Integrated MAX44284FAUT+T is a precision voltage current sensing amplifier optimized for single supply operation between 1.7V and 5.5V. Packaged in a compact 6-pin SOT-23 format, it features ultra-low quiescent current of 41.5μA and a wide input common-mode voltage range from -0.1V to +36V. The device offers four fixed gain options to simplify design and supports operation in extreme temperature conditions from -40°C to +125°C, making it suitable for automotive and industrial environments.
The amplifier's high common-mode rejection ratio of 91.3dB and low offset voltage (as low as 2μV) deliver highly accurate current measurements. Its low input bias current and extremely low input offset temperature coefficient support stable and precise sensing under varying conditions.
This amplifier is designed for a broad range of applications including current sensing in DC-DC converters, power management in portable battery-powered systems, medical pulse oximeters, infusion pumps, notebooks, smartphones, and tablets.
Operates from a single 1.7V to 5.5V power supply. Surface mount 6-pin SOT-23 package ensures compact PCB footprint. Suitable for use with small current-sense resistors to maximize power supply efficiency. Designed to meet the rigorous temperature requirements of automotive applications.
Extends battery life in portable systems via low supply current. Voltage output compatible with analog signal conditioning. Balanced gain and noise performance with 3kHz gain bandwidth product. Set contains one Maxim Integrated MAX44284FAUT+T current sensing amplifier in SOT-23 package.
These amplifiers are critical components in industrial, automotive, medical, and consumer electronic applications requiring precise current measurement and monitoring. Browse the Electronics & Electricals Semiconductor Current Sensing Amplifier category on EnvMart for related advanced amplifier ICs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a single supply voltage range of 1.7V to 5.5V.
It features a low supply current of only 41.5μA, ensuring energy-efficient operation.
The amplifier has a high common-mode rejection ratio (CMRR) of 91.3dB, which aids in accurate sensing.
The SOT-23 package has a length of 3mm and a height of 1.3mm.
This unit supports an operating temperature range from -40°C to +125°C, making it suitable for automotive applications.
It is a single-channel current sensing amplifier.
The MAX44284FAUT+T provides a voltage output type suitable for signal processing.
It is optimized for current sensing in DC-DC converters, power management in battery-powered systems, and medical devices like pulse oximeters.
The gain bandwidth product (GBP) is 3kHz, balancing gain and noise performance.
The amplifier offers four fixed gain options to simplify design flexibility.
It has a wide input common-mode voltage range from -0.1V to +36V.
This model features a surface mount design, suitable for compact PCB layouts.
