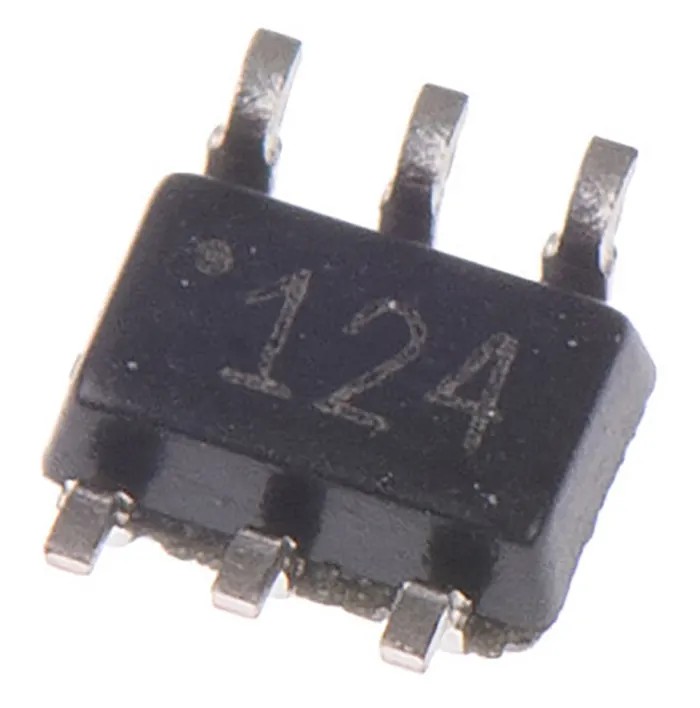

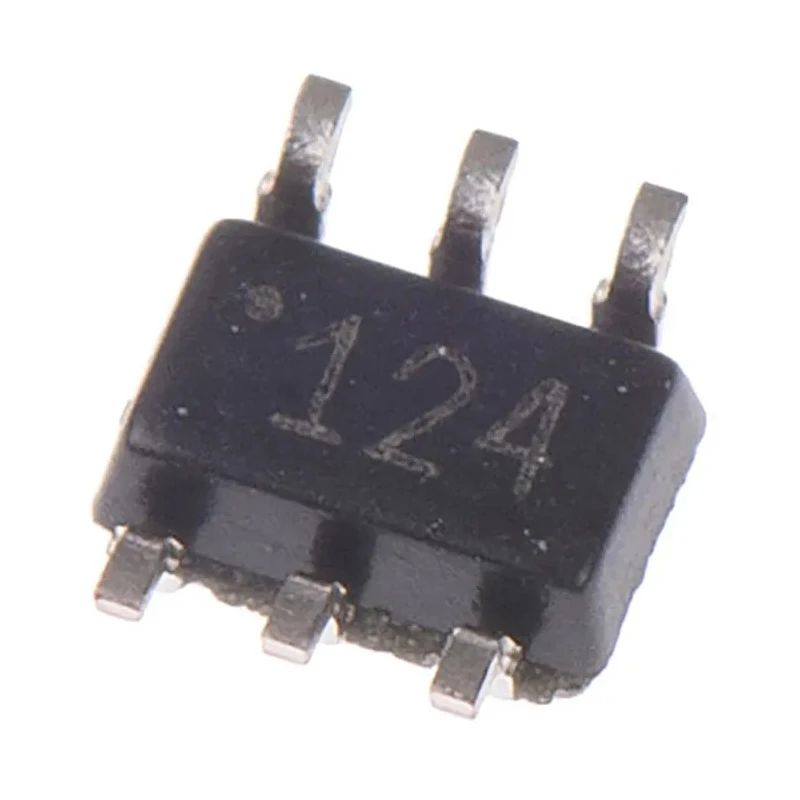

Texas Instruments Current Sensing Amplifier Single Channel 6-Pin SC-70 Package INA214AIDCKT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.9mm |
| Length | 2mm |
| Model | INA214AIDCKT |
| Mount Type | Surface |
| Series | INA214 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 709-9117Brand: Texas InstrumentsManufacturers Part No.: INA214AIDCKT |
| Pin Count | 6 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 26V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 100μA |
| GBP - Gain Bandwidth Product | 30kHz |
| CMRR - Common Mode Rejection Ratio | 105dB |
Key Features
- Operates with a minimum supply voltage of 2.7V and a maximum of 26V.
- Features a high common mode rejection ratio (CMRR) of 105 dB for accurate sensing.
- Consumes a low supply current of only 100 μA ensuring energy efficiency.
- Gain bandwidth product of 30 kHz for stable response in power monitoring.
- Qualified to automotive standard AEC-Q100 ensuring reliability in harsh environments.
- Compact dimensions measuring 2 mm in length and 0.9 mm in height.
- Designed for surface mount applications on PCBs with 6 pins arranged in an SC-70 package.
- Functional over a wide temperature range from -40°C to 125°C.
Product Description
Texas Instruments INA214AIDCKT Current Sensing Amplifier is a precision semiconductor device designed for accurate measurement of current flowing through a power rail. It operates as a single channel amplifier featuring analogue output proportional to voltage drop across very low-value resistors used in high-current power rails.
This component supports a supply voltage range from 2.7V to 26V, making it suitable for diverse electronic and power management applications where real-time system protection and feedback control are critical.
With a common mode rejection ratio of 105 dB and a gain bandwidth product of 30 kHz, INA214AIDCKT provides high accuracy and stability for current sensing tasks in automotive and industrial conditions. Its supply current is only 100 μA, ensuring low power consumption.
The device is built in a compact 6-pin SC-70 surface mount package of dimensions 2 mm length and 0.9 mm height. It is qualified to the automotive grade AEC-Q100 standard, guaranteeing dependable operation in extreme temperature ranges from -40°C to 125°C.
Typical industrial uses include current and power measurement for real-time system protection and control in automotive, manufacturing, and other engineering domains. Its miniature form factor and surface mount design facilitate integration into complex PCB layouts.
Operates on supply voltages between 2.7V and 26V. Offers high CMRR of 105 dB for noise reduction. Low supply current consumption of 100 μA for efficiency. Compact surface mount SC-70 package with 6 pins. Automotive standard AEC-Q100 compliance for robustness.
Functional temperature range from -40°C to 125°C. Gain bandwidth product rated at 30 kHz for response accuracy.
For engineers and designers seeking reliable current sensing solutions, this Texas Instruments INA214AIDCKT amplifier is an ideal choice. Explore EnvMart categories for more semiconductor amplifiers and related components.
