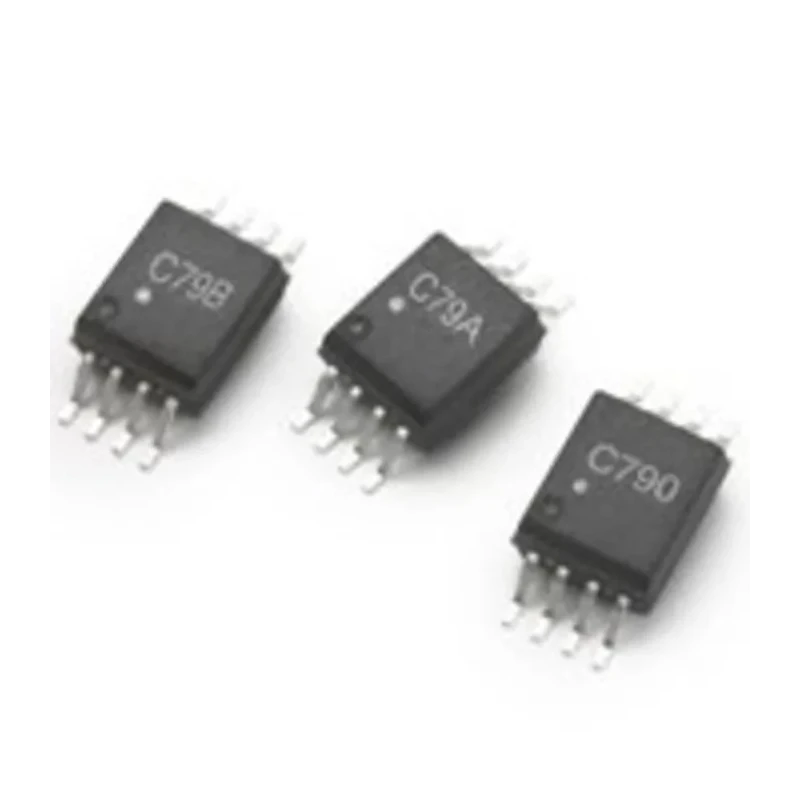

Broadcom Precision Miniature Isolation Amplifier 8-Pin SOP 4.5-5.5V ACPL-C79A-500E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 3.18mm |
| Length | 5.85mm |
| Model | ACPL-C79A-500E |
| Mount Type | Surface |
| Series | ACPL-C79A |
| Maximum Operating Temperature | 105°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Vos - Input Offset Voltage | 2 mV |
| Isolation Type | Precision Miniature Isolation Amplifiers |
Key Features
- Single channel isolation amplifier designed for current and voltage sensing applications.
- Offers a maximum supply voltage of 5.5 V and minimum of 4.5 V.
- Supports a high isolation voltage rating of 5000 Vrms for electrical safety.
- Input offset voltage is low at 2 mV, ensuring precise signal measurement.
- Operating temperature range from -40°C up to 105°C for wide environmental tolerance.
- Designed for surface mount with a compact SOP package and 8 pins.
- Provides excellent noise immunity with 15 kV/μs common-mode transient immunity.
- Features advanced sigma-delta A/D converter technology and differential output voltage.
Product Description
Broadcom ACPL-C79A-500E is a precision miniature isolation amplifier optimized for current sensing and voltage sensing in electronic power converters, particularly suited for motor drives and renewable energy systems. The single-channel amplifier supports a maximum supply voltage of 5.5 V and operates reliably across a temperature range of -40°C to 105°C. Its 8-pin SOP surface mount package ensures compact integration into electronic assemblies.
The device offers a high isolation voltage of 5000 Vrms, enabling electrical isolation between input and output for safety and signal integrity. It features a low input offset voltage of 2 mV and excellent linearity, facilitating accurate sensing of analog voltage drops across external resistors in power applications.
With 15 kV/μs common-mode transient immunity and advanced sigma-delta A/D converter technology, the ACPL-C79A-500E provides robust performance in electrically noisy environments. This isolation amplifier is ideal for industrial and renewable energy uses, such as motor control, power inverters, and isolated signal transmission in high-voltage systems.
Single channel isolation amplifier designed for precise analog signal sensing. Wide supply voltage range from 4.5 to 5.5 V for flexible power input. High isolation voltage of 5000 Vrms enables safe electrical isolation. Low input offset voltage and excellent linearity for accurate measurements.
Extensive operating temperature range from -40°C to 105°C for harsh environments. Compact 8-pin SOP surface mount package supports automated assembly. High common-mode transient immunity ensures stable operation in noisy conditions.
Ideal for motor drives, renewable energy, and power conversion applications. Explore more Semiconductor Isolation Amplifiers and other electronic components at EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.5 V.
It operates reliably within a temperature range of -40°C to 105°C.
This unit is a single-channel isolation amplifier.
The input offset voltage is low at 2 mV, which helps ensure precise signal measurement.
It has a high isolation voltage rating of 5000 Vrms, providing electrical safety.
It is designed in a compact 8-pin SOP surface mount package.
It is optimized for current and voltage sensing applications, particularly in motor drives and renewable energy systems.
It provides excellent noise immunity with a common-mode transient immunity of 15 kV/μs.
The height is 3.18 mm and the length is 5.85 mm.
The minimum supply voltage is 4.5 V, allowing for flexible power input.
This model belongs to the ACPL-C79A series of precision miniature isolation amplifiers.
The country of origin for this model is India.
