Vishay 100 V 6 A Schottky Barrier Rectifier Surface Mount TO-252 Package V6PW10HM3/I

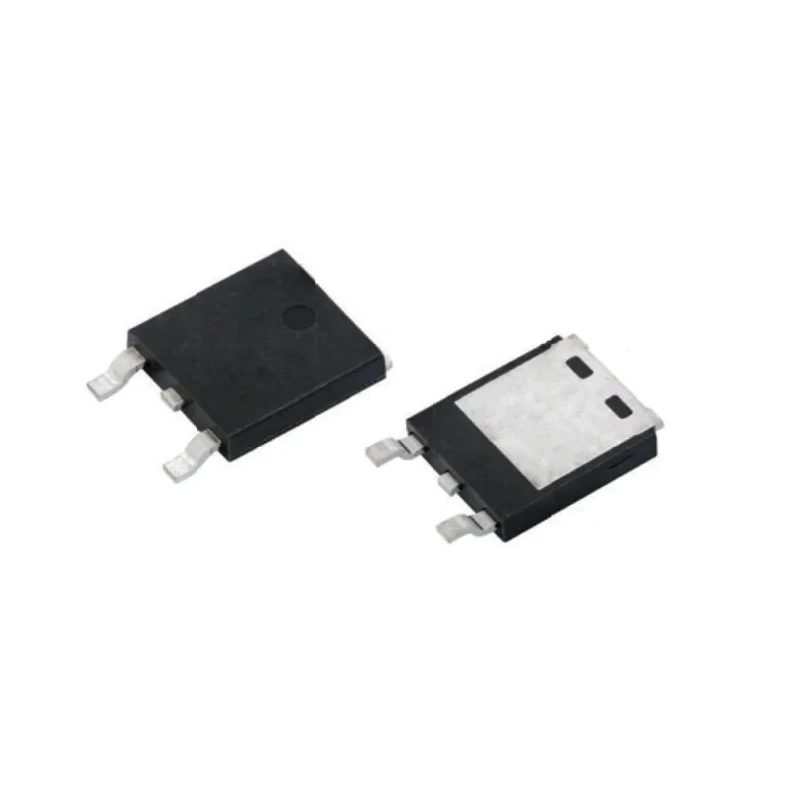

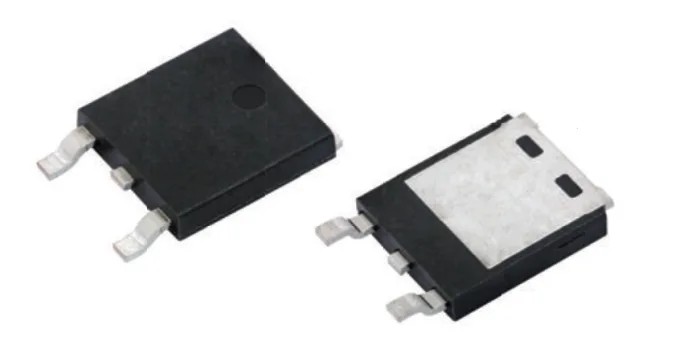

Vishay V6PW10HM3/I Schottky Barrier Rectifier is a high performance surface mount semiconductor device rated at 100 V maximum repetitive reverse voltage and capable of continuous forward currents up to 6 A. Housed in a TO-252 package with a low profile height of approximately 1.3 mm, it is optimized for applications requiring high efficiency rectification with minimal power dissipation.

This diode features trench MOS barrier Schottky technology which offers very low forward voltage drop, significantly reducing conduction losses and enhancing overall circuit efficiency. It operates reliably in demanding environments spanning temperatures from -40°C to 175°C, suitable for automotive and industrial applications.

The rectifier supports peak non-repetitive surge currents up to 100 A, making it robust against transient conditions commonly found in power conversion and protection circuits. Additionally, it complies with AEC-Q101 automotive standard, marking it fit for vehicle electronics use.

Typical applications include low voltage high frequency DC/DC converters, freewheeling diodes in motor control and switching power supplies, and polarity protection circuits. Its surface mount TO-252 package facilitates automatic placement and soldering during manufacturing, streamlining PCB assembly.

Certified RoHS compliant, the Vishay V6PW10HM3/I combines advanced semiconductor technology with industry-accepted form factors and standards ensuring compatibility with a broad range of electronic designs.

Surface mount design with TO-252 package for compact applications. Maximum continuous forward current of 6 amperes ensures robust performance. Peak reverse repetitive voltage of 100 volts for reliable blocking capability.

Low forward voltage drop of 0.58 volts reduces power loss and improves efficiency. Operates within temperature range from -40°C to 175°C for wide environmental suitability. Automotive grade AEC-Q101 certified for stringent automotive requirements.

Trench MOS Schottky technology enables high current density and low profile of 1.3 mm. High surge current capacity up to 100 amperes peak for transient tolerance. Complies with RoHS standards ensuring environmentally safe manufacturing.

Ideal for automated PCB placement in electronic assemblies.

Compatible with industrial, automotive, electronic manufacturing, and laboratory use cases, the Vishay V6PW10HM3/I provides reliable rectification and protection for modern power electronics. Browse similar Schottky Barrier Rectifiers and electronic components on EnvMart to find the best fit for your project.
