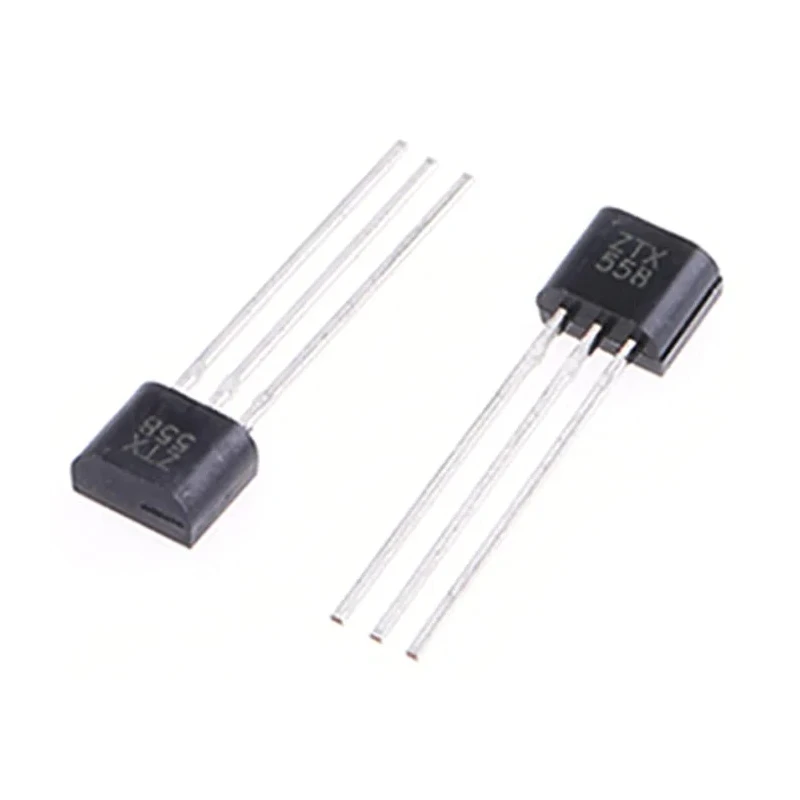

DiodesZetex PNP Transistor, Maximum DC Collector Current -200 mA, Maximum Collector Emitter Voltage -400 V, 3-Pin ZTX558
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Model | ZTX558 |
| Mount Type | Through Hole |
| Series | ZTX |
| Maximum Operating Temperature | 200°C |
| Package Type | TO-92 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -400V |
| Minimum DC Current Gain hFE | 100 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Base Voltage VCBO | 400V |
| Maximum Power Dissipation Pd | 1W |
| Maximum DC Collector Current Idc | -200mA |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 50MHz |
Key Features
- Suitable for high voltage switching applications.
- Through hole mount type ensures reliable mechanical stability.
- Single transistor configuration designed for PNP polarity.
- Maximum power dissipation of 1 watt enables efficient thermal performance.
- Wide operating temperature range from -55°C to 200°C for harsh environment use.
- High transition frequency of 50MHz offers good frequency response.
- Complies with RoHS environmental standards.
- Compact 3-pin TO-92 package supports easy PCB integration.
Product Description
DiodesZetex ZTX558 PNP Transistor is a high voltage, single transistor device packaged in the compact 3-pin TO-92 case designed for through-hole mounting applications. It delivers a maximum DC Collector Current of -200 mA and withstands a maximum Collector Emitter Voltage of -400 V, making it suitable for switching and amplification in high voltage circuits.
This transistor offers reliable performance with a maximum power dissipation of 1 watt and a minimum DC current gain (hFE) of 100, ensuring efficient signal amplification. Its transistor polarity is PNP, which is important for determining proper circuit integration.
The device supports a broad operating temperature range from -55°C to 200°C, which allows it to function reliably in demanding industrial, laboratory, and automotive applications. The maximum transition frequency of 50 MHz provides adequate speed for many switching and analog signal tasks.
Designed for through-hole mounting on printed circuit boards, the 3-pin TO-92 package is widely used in discrete semiconductor applications for ease of assembly and durability. The product complies with RoHS directives, underscoring its environmental compliance and suitability for modern electronics equipment.
High voltage PNP Transistor designed for switching and amplification. Maximum collector current: -200 mA and voltage: -400 V. Compact TO-92 3-pin package for through-hole mounting. Wide temperature range supports harsh industrial environments.
Compliant with RoHS environmental standards. Suitable for use in industrial, automotive, and laboratory electronics. Typical applications include power regulation, signal processing, and general purpose switching. Explore our expansive selection of semiconductors and electronic components for your projects and industrial needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC collector current for the ZTX558 transistor is -200 mA.
The maximum collector emitter voltage of the ZTX558 is -400 V.
This transistor operates within a temperature range of -55°C to 200°C.
The ZTX558 comes in a compact 3-pin TO-92 package designed for through-hole mounting.
The minimum DC current gain (hFE) for the ZTX558 is 100.
The maximum power dissipation of this model is 1 watt.
The maximum transition frequency of the ZTX558 is 50 MHz.
Yes, the ZTX558 complies with RoHS environmental standards.
The ZTX558 features a single transistor configuration designed for PNP polarity.
This model is suitable for high voltage switching and amplification in industrial, automotive, and laboratory applications.
The maximum emitter base voltage (VEBO) for the ZTX558 is 5V.
The maximum collector base voltage (VCBO) for the ZTX558 is 400 V.
