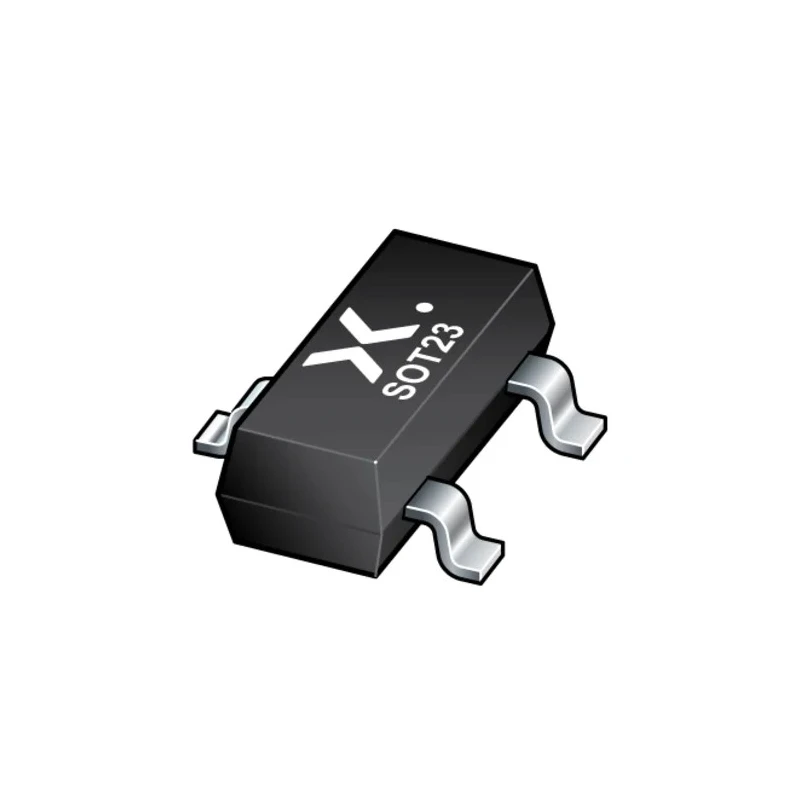

Nexperia Uni-Directional ESD Protection Diode 5 V, 4 A Peak Pulse, 3-Pin SOT-23 PESD5V0F2UTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.3mm |
| Length | 2.9mm |
| Model | PESD5V0F2UTR |
| Width | 1mm |
| Mount Type | Surface |
| Series | PESD5V0F2UT |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS, IEC 61000-4-2 |
| Pin Count | 3 |
| Clamping Voltage VC | 3.3V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 7.2V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Maximum Peak Pulse Current Ippm | 4A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Uni-directional diode type providing reliable ESD protection up to 8 kV.
- Maximum reverse stand-off voltage of 5 V with a minimum breakdown voltage of 7.2 V.
- Capable of handling peak pulse currents up to 4 A.
- Low clamping voltage of 3.3 V ensures effective suppression of voltage spikes.
- Compact SOT-23 plastic surface-mount package with dimensions 2.9 mm x 1 mm x 1.3 mm.
- Wide operating temperature range from -65 °C to 150 °C.
- Highly compliant with RoHS, IEC 61000-4-2, and automotive grade AEC-Q101 standards.
- Extremely low leakage current of 50 nA improves efficiency and reliability.
Product Description
Nexperia PESD5V0F2UTR is a Uni-Directional ESD Protection Diode designed in a compact 3-pin SOT-23 surface-mount package with 5 V maximum reverse stand-off voltage and 4 A peak pulse current capability. This diode effectively protects two high-speed data lines and sensitive semiconductor components from electrostatic discharges and transient voltage spikes, important in industrial, communications, automotive, and consumer electronics applications.
The diode features a low clamping voltage of 3.3 V at specified test current and ultra-low capacitance of 0.47 pF, minimizing signal distortion and supporting high-speed data integrity. Its broad temperature range from -65 °C to 150 °C and compliance with stringent RoHS and AEC-Q101 automotive standards ensure reliable performance even in harsh environments.
This product is ideal for industrial electronic circuits, telecommunication equipment, automotive electronics, and other sensitive devices requiring robust ESD protection. The small SOT-23 housing allows efficient PCB space utilization while providing superior transient voltage suppression.
Uni-directional diode offering ESD protection up to 8 kV. Maximum peak pulse current rating of 4 A for effective surge handling. Low clamping voltage reduces risk of damage to protected circuits. Compact surface-mount SOT-23 package suitable for dense PCB layouts.
Wide operating temperature range for versatile industrial use. Compliant with automotive standard AEC-Q101 for enhanced reliability. Low reverse leakage current improves overall power efficiency. Supports protection of high-speed data lines with minimal signal impact.
Set a new standard in electrostatic protection with Nexperia’s PESD5V0F2UTR diode. Utilize this device in manufacturing, laboratory equipment, automotive electronics, and communication systems to enhance product durability and reduce failures.
Explore more semiconductor solutions from EnvMart's extensive inventory of high-quality electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this diode is 5 V.
It is capable of handling peak pulse currents up to 4 A.
The clamping voltage is 3.3 V at the specified test current.
The dimensions of the SOT-23 package are 2.9 mm in length, 1 mm in width, and 1.3 mm in height.
The operating temperature range is from -65 °C to 150 °C.
This diode is compliant with RoHS, IEC 61000-4-2, and automotive standard AEC-Q101.
The minimum breakdown voltage is 7.2 V.
The maximum reverse leakage current is 50 nA.
It uses surface mounting as its mount type.
This model has a pin count of 3.
It is suitable for industrial electronic circuits, telecommunication equipment, automotive electronics, and other sensitive devices requiring ESD protection.
The diode features an ultra-low capacitance of 0.47 pF, which minimizes signal distortion.
