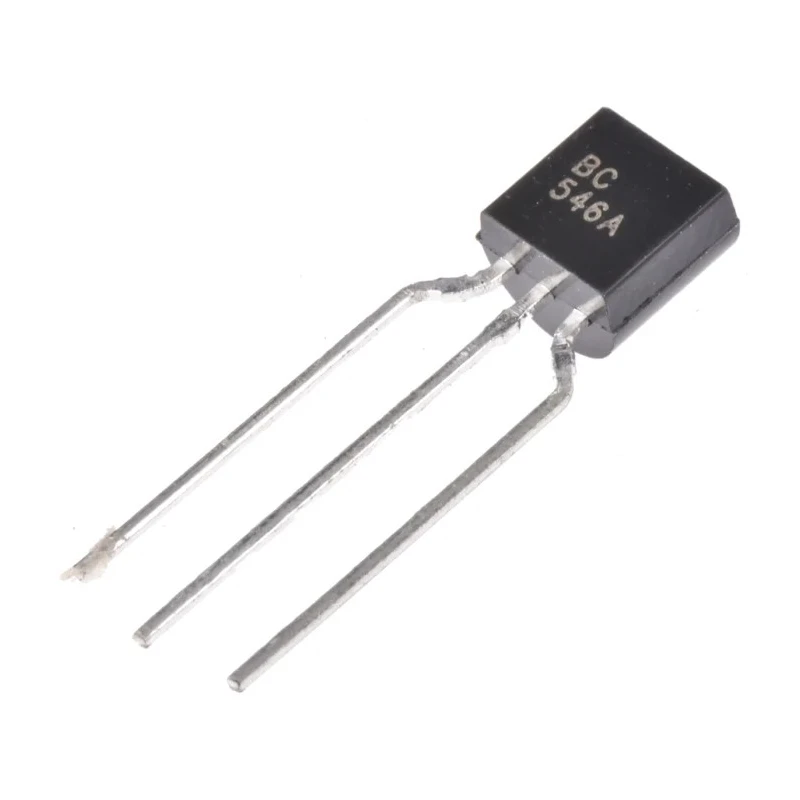

Taiwan Semiconductor Small Signal NPN Transistor 100 mA, 65 V, 3-Pin TO-92 BC546A A1

Taiwan Semiconductor BC546A A1 transistor is a small signal NPN bipolar transistor provided in a 3-pin TO-92 package, designed for through-hole PCB mounting. It has a maximum DC collector current of 100 mA and can withstand a collector emitter voltage up to 65 V, making it suitable for low power amplification needs.

This transistor features a maximum power dissipation of 500 mW for reliable performance in various circuit environments. The operating temperature range extends from -65°C to 150°C, enabling stability in industrial and manufacturing setups. The minimum DC current gain (hFE) of 220 ensures effective signal amplification.

The small form factor dimensions of approximately 4.7 mm height, 5.1 mm length, and 4.1 mm width allow easy fit in compact circuit designs. Its NPN configuration is widely used in switching and amplification in a variety of applications, including electronic components manufacturing, prototyping, and repair.

This transistor is ideal for use in industrial controls, laboratory instruments, and commercial equipment requiring reliable and efficient bipolar transistors. Its through-hole mount type allows robust soldering and mechanical stability.

High reliability for electronic circuit applications. Durable TO-92 package suitable for PCB through-hole mounting. Maximum power dissipation of 500 mW ensures stable operation. Wide operating temperature range from -65°C to 150°C.

Minimum DC current gain (hFE) of 220 for efficient amplification. Compact 3-pin configuration provides ease of installation. Designed for small signal amplification in various electronic devices. Compatible with industrial, laboratory, and commercial electronics projects.
