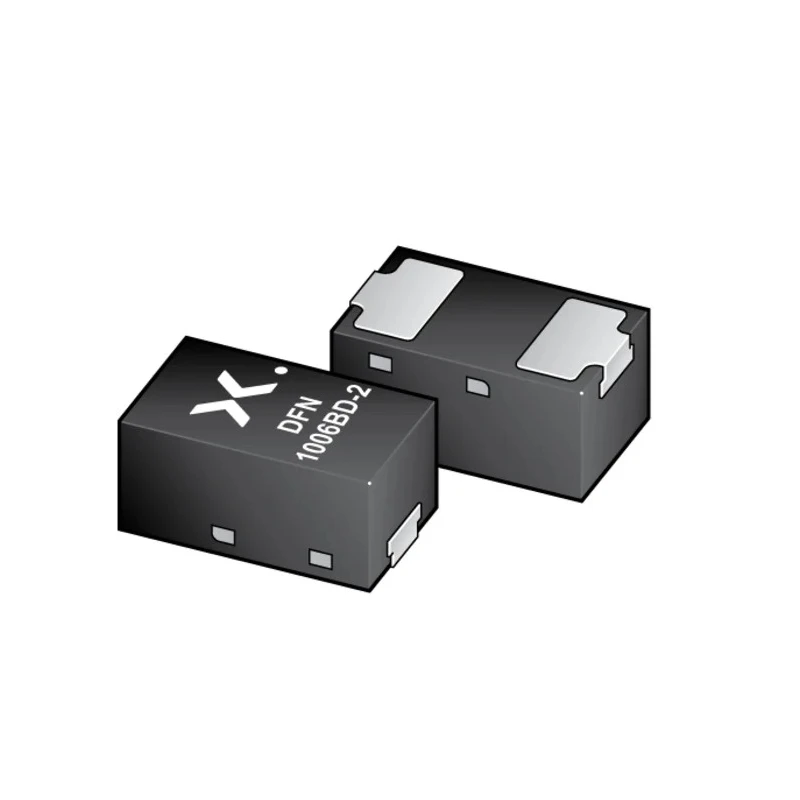

Nexperia Bi-Directional ESD Protection Diode PESD1IVN24-LSYL, 2-Pin DFN1006BD-2, Surface Mount, 24V, 3.5A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | PESD1IVN24-LSYL |
| Width | 0.6mm |
| Mount Type | Surface |
| Series | PESD1IVN24-LS |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS, IEC 61000-4-2 |
| Pin Count | 2 |
| Clamping Voltage VC | 42V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 25.5V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Maximum Peak Pulse Current Ippm | 3.5A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Provides bi-directional ESD protection for sensitive electronics.
- Surface mount DFN1006BD-2 packaging with 2-pin configuration for space-saving installation.
- Reverse stand-off voltage rated at 24 V, suitable for in-vehicle network protection.
- Peak pulse current capacity of 3.5 A ensures robust operation during transients.
- Ultra-low leakage current of less than 1 nA, minimizes impact on signal lines.
- Qualified to AEC-Q101 automotive standards for enhanced reliability.
- Clamping voltage of 42 V for effective surge mitigation.
- RoHS and IEC 61000-4-2 compliant for environmentally responsible manufacturing.
Product Description
Nexperia PESD1IVN24-LSYL Bi-Directional ESD Protection Diode offers high-performance transient voltage suppression for automotive and industrial electronics. Built in an ultra-small DFN1006BD-2 surface-mount package, this 2-pin diode is engineered for protecting in-vehicle network bus lines from the destructive effects of electrostatic discharge and voltage spikes.
This diode features an automotive-grade qualification (AEC-Q101), supporting robust and reliable operation in demanding environments. The device delivers bi-directional protection up to 30 kV ESD (IEC 61000-4-2 and ISO 10605 C330 pF, R330 Ω) with minimal leakage current below 1 nA, making it ideal for critical circuit protection without compromising signal integrity.
Provides bi-directional ESD protection for sensitive electronics. Surface mount DFN1006BD-2 packaging with 2-pin configuration for space-saving installation. Reverse stand-off voltage rated at 24 V, suitable for in-vehicle network protection.
Peak pulse current capacity of 3.5 A ensures robust operation during transients. Ultra-low leakage current of less than 1 nA, minimizes impact on signal lines. Qualified to AEC-Q101 automotive standards for enhanced reliability.
Clamping voltage of 42 V for effective surge mitigation. RoHS and IEC 61000-4-2 compliant for environmentally responsible manufacturing.
The ESD diode is well-suited for use in a range of applications, including industrial automation, automotive electronic control units, communication devices, and consumer electronics. Its compact size (1 mm × 0.6 mm × 0.47 mm) enables efficient integration into modern densely populated PCBs and circuitry.
Engineered for surface-mount assembly, the device supports automated production and improved manufacturing efficiency. The diode's robust protection characteristics safeguard sensitive bus lines and interfaces from transient voltages and ensure system longevity.
Browse more TVS Diodes from Nexperia in the EnvMart semiconductor category to find reliable circuit protection components that match your application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The reverse stand-off voltage is rated at 24 V, making it suitable for in-vehicle network protection.
It has a maximum peak pulse current capacity of 3.5 A, ensuring robust operation during transients.
The dimensions are 1 mm in length, 0.6 mm in width, and 0.47 mm in height.
The clamping voltage is 42 V, which helps in effective surge mitigation.
The maximum operating temperature is 150°C and the minimum operating temperature is -65°C.
Yes, it is qualified to AEC-Q101 automotive standards for enhanced reliability in automotive applications.
The maximum reverse leakage current is 50 nA, which minimizes impact on signal lines.
This model supports surface mounting, allowing for efficient integration into PCBs.
It complies with RoHS and IEC 61000-4-2 standards for environmentally responsible manufacturing.
The diode offers bi-directional protection, suitable for various sensitive electronics applications.
It is suitable for applications in industrial automation, automotive electronic control units, communication devices, and consumer electronics.
The diode is packaged in a DFN1006BD-2 type, which is designed for surface mount installation.
