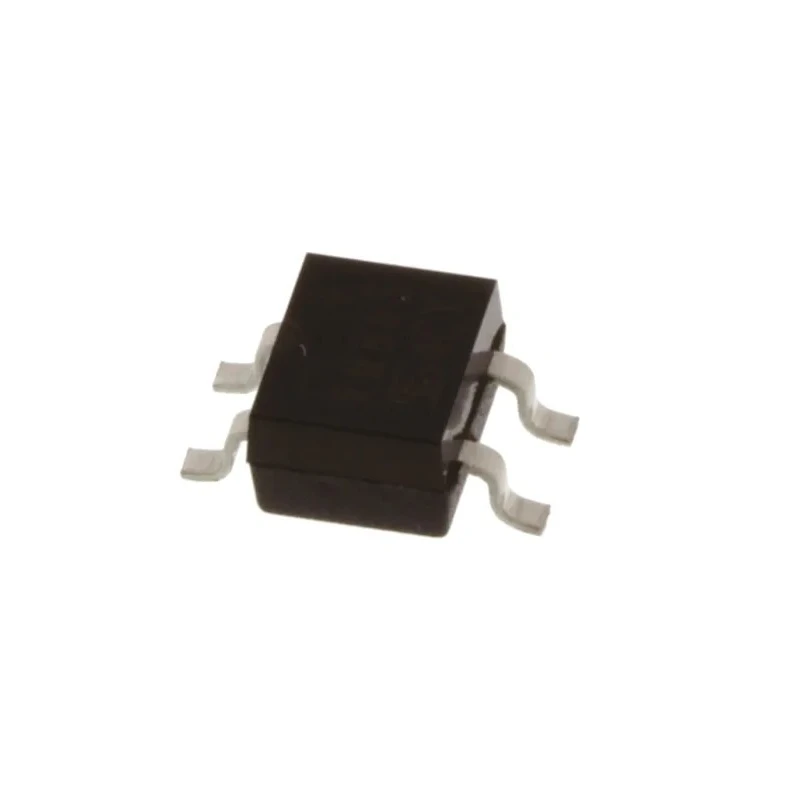

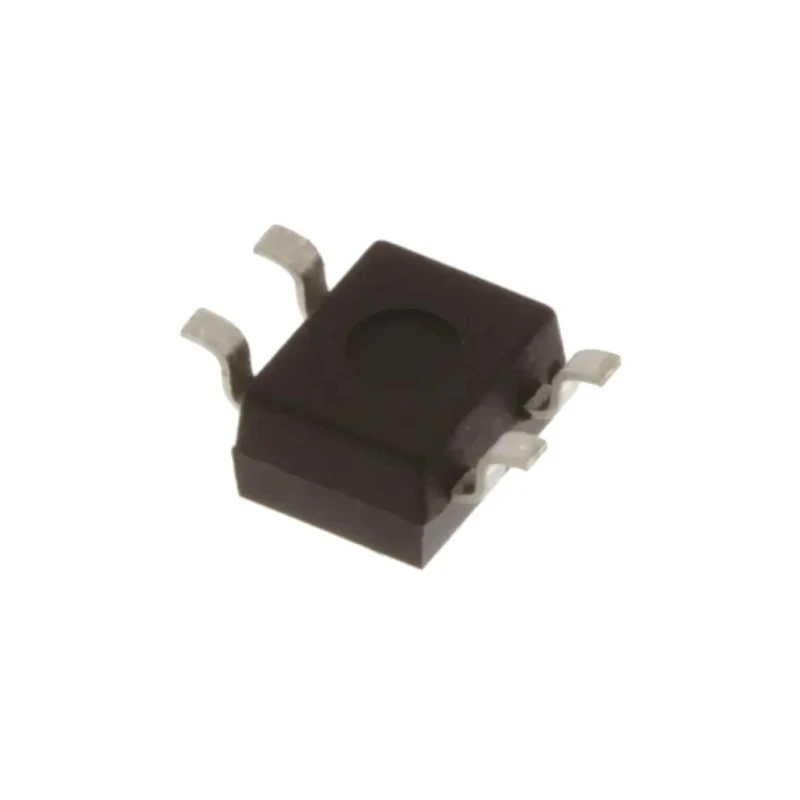

Taiwan Semiconductor Bridge Rectifier 4-Pin Surface Mount, 600 V 30 A, 150°C RMB6S

Name: Taiwan Semiconductor Bridge Rectifier 4-Pin Surface Mount, 600 V 30 A, 150°C RMB6S
Brand: Taiwan Semiconductor
SKU: 407879
Price: 0.35 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	2.7mm
Length	4.9mm
Model	RMB6S
Width	4mm
Mount Type	Surface
Series	RMB
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	MBS
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Automotive Standard	AEC-Q101
Peak Reverse Repetitive Voltage Vrrm	600V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Forward Current If	800mA
Peak Forward Voltage Vf	1V

Key Features

Single-phase 4-pin bridge rectifier with MBS surface mount package.
Peak reverse repetitive voltage rating of 600 V.
Forward current capability up to 30 A with 150°C max operating temperature.
Glass passivated chip junction ensures fast reverse recovery time.
Low peak forward voltage of 1 V and peak reverse current of 5 μA.
Complies with automotive standard AEC-Q101 for quality assurance.
Compact dimensions of 4.9 mm length, 4 mm width, and 2.7 mm height.
Supports peak non-repetitive forward surge current of 30 A.

Product Description

Taiwan Semiconductor RMB6S Bridge Rectifier is a single-phase 4-pin device designed for efficient AC to DC conversion in electronic circuits. It is engineered for surface mount installation on printed circuit boards (PCBs), making it suitable for compact and automated assembly processes.

With a peak reverse repetitive voltage (Vrrm) of 600 V and a forward current (If) rating of 30 A, this component is optimized for robust power handling and durability. The package type is MBS, offering a miniature form factor that supports ease of integration.

The rectifier is specified to operate reliably between temperatures of -55°C and up to a maximum of 150°C, suitable for demanding industrial and automotive environments. Its glass passivated chip junction ensures a fast reverse recovery time, contributing to reduced switching losses and improved efficiency.

Additional electrical parameters include a low peak forward voltage (Vf) of 1 V and a minimal peak reverse current (Ir) of 5 μA. Its peak non-repetitive forward surge current (Ifsm) capability of 30 A allows it to withstand transient surges commonly encountered in power circuits.

The product complies with automotive standard AEC-Q101, underscoring its quality and reliability for automotive applications. Its compact dimensions of 4.9 mm length, 4 mm width, and 2.7 mm height facilitate PCB space-saving designs.

This bridge rectifier is widely used in electronic power supplies, automotive systems, industrial automation, and HVAC control units. Its surface mount configuration supports modern reflow soldering techniques for high-volume production.

Miniature size and robust electrical ratings make RMB6S a preferred choice for designers requiring efficient and reliable rectification solutions. Explore more Taiwan Semiconductor Bridge Rectifiers and related semiconductor components at EnvMart for diverse industrial and electronic applications.
