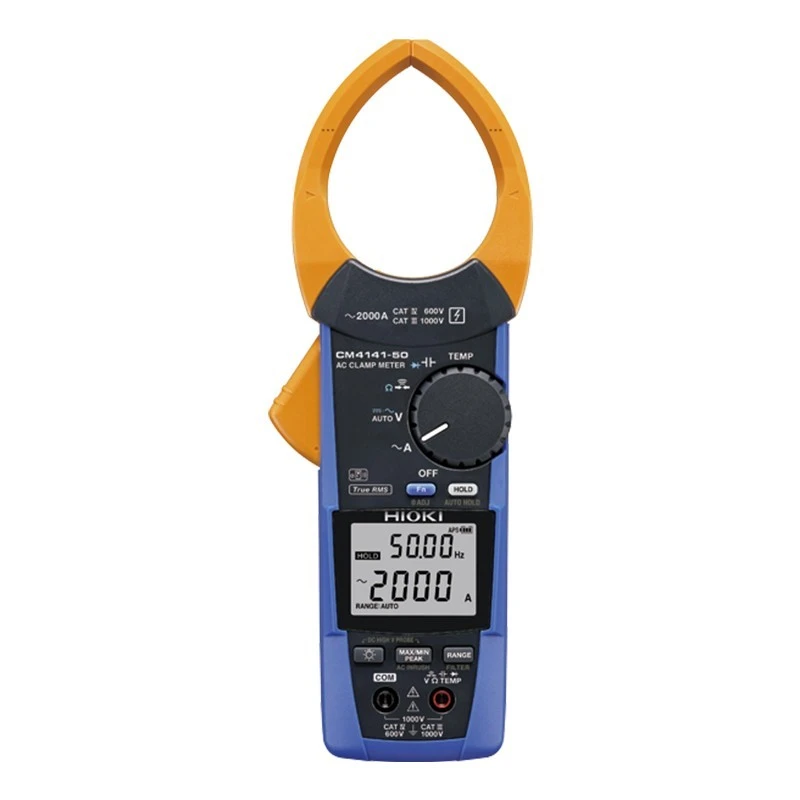

Hioki AC Clamp Meter CM4141-50

Name: Hioki AC Clamp Meter CM4141-50
Brand: HIOKI
SKU: ADECM
Price: 256.41 USD
Availability: InStock



SKU ADECM Category Clamp Meters Brand HIOKI Condition New

Specifications

Country of Origin	Japan
Frequency	Voltage - 9.999 Hz – 999.9 Hz / Current - 99.99 Hz – 999.9 Hz / ±0.1% rdg. ±0.01 Hz (at 99.99 Hz)
Brand	HIOKI
Power Supply	LR03 Alkaline battery ×2
Dimensions	65 × 247 × 35 mm
Protection Type	IP20 (current/voltage under dry conditions) / IP50 (resistance/insulated current measurement)
Model	CM4141-50
Accessories	Test Lead / Carrying Case / Batteries / Manuals
Weight	300 g
AC Voltage (V)	6.000 V – 1000 V / True RMS / ±0.9% rdg. ±0.003 V (at 6 V)
AC Current	60.00 A – 2000 A / True RMS / ±1.5% rdg. ±0.08 A (60 A range)
Resistance	600.0 Ω – 6.000 MΩ / ±0.7% rdg. ±0.5 Ω (at 600 Ω)
DC Voltage (V)	600.0 mV – 1000 V (With P2010 - 600.0 V – 2000 V)
JAW Diameter	φ55 mm / Jaw - 82 mm W × 11 mm D
Capacitance	1.000 μF – 1000 μF / ±1.9% rdg. ±0.005 μF (at 1 μF)
Crest factor	60 A range - 2.5 / 2000 A range - 1.5
Temperature (K)	-40.0 to 400.0 ˚C / ±0.5% rdg. ±3.0 ˚C + probe accuracy
Harmonics	Voltage/Current harmonic levels up to 30th (Z3210 installed)
DC+AC Voltage (V)	6.000 V – 1000 V / ±1.0% rdg. ±0.013 V (at 6 V)

Key Features

Thin sensor (11 mm minimum cross-section) for tight spaces.
Measures up to 2000 A AC.
Measures AC A, AC and DC V, DC+AC V, resistance, and frequency.
Data transfer to smartphone/tablet via GENNECT Cross app.
Data export to Excel.
Harmonic analysis up to 30th order with GENNECT Cross app.

Product Description

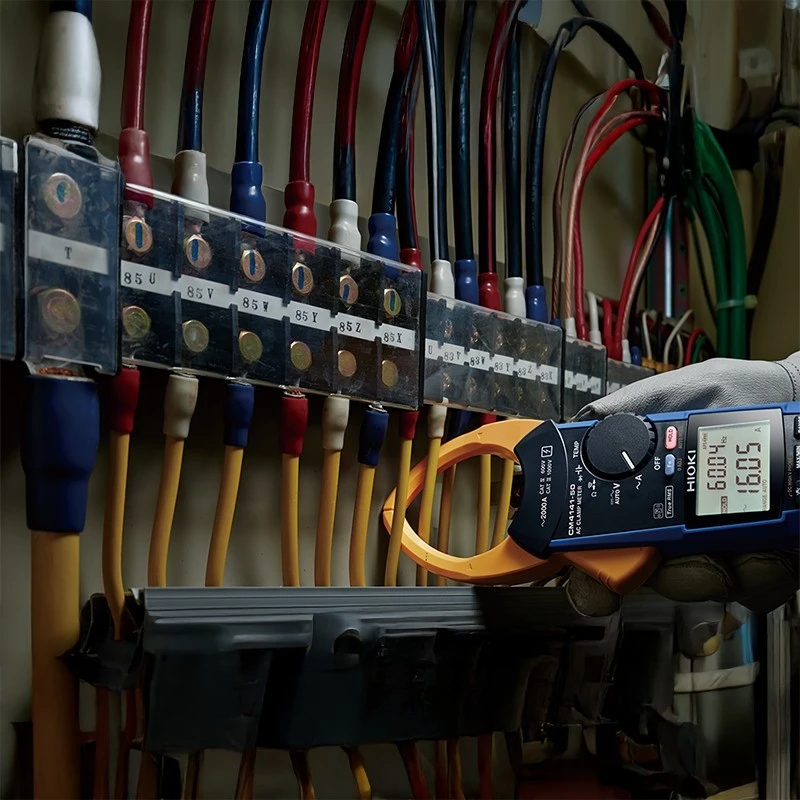

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM4141-50 is a 2000 A AC True RMS clamp meter that features a uniquely designed slim jaw that lets you easily get into the narrow gaps between cables in crowded electrical distribution boxes without fear of damaging the cables or the clamp meter. The high current measurement capability makes it especially useful for industrial applications.

Available on EnvMart, these Clamp Meters are designed for precise measurement of electrical current and voltage in circuits. Hioki Clamp Meters deliver high accuracy and reliability, making them essential for electrical testing, maintenance, and quality control applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model can measure AC current up to 2000 A with a True RMS accuracy of ±1.5% reading ±0.08 A at the 60 A range.

It can measure AC voltage from 6.000 V to 1000 V with a True RMS accuracy of ±0.9% reading ±0.003 V at 6 V.

The frequency range for voltage measurements is 9.999 Hz to 999.9 Hz, while for current measurements, it is 99.99 Hz to 999.9 Hz with an accuracy of ±0.1% reading ±0.01 Hz at 99.99 Hz.

The Hioki CM4141-50 measures 65 × 247 × 35 mm and weighs 300 g.

It can measure AC and DC voltage, AC current, resistance, frequency, and capacitance, as well as perform harmonic analysis up to the 30th order.

The jaw diameter of this clamp meter is φ55 mm, with a jaw width of 82 mm and a depth of 11 mm, allowing access to tight spaces.

Included accessories are a test lead, carrying case, batteries, and manuals for operation.

It can measure temperatures from -40.0 to 400.0 ˚C with an accuracy of ±0.5% reading ±3.0 ˚C plus probe accuracy.

This clamp meter can measure resistance from 600.0 Ω to 6.000 MΩ with an accuracy of ±0.7% reading ±0.5 Ω at 600 Ω.

The Hioki CM4141-50 is powered by two LR03 alkaline batteries.

It has an IP20 rating for current/voltage measurements under dry conditions and an IP50 rating for resistance and insulated current measurements.

Data can be transferred to a smartphone or tablet via the GENNECT Cross app, allowing for data export to Excel and harmonic analysis.
