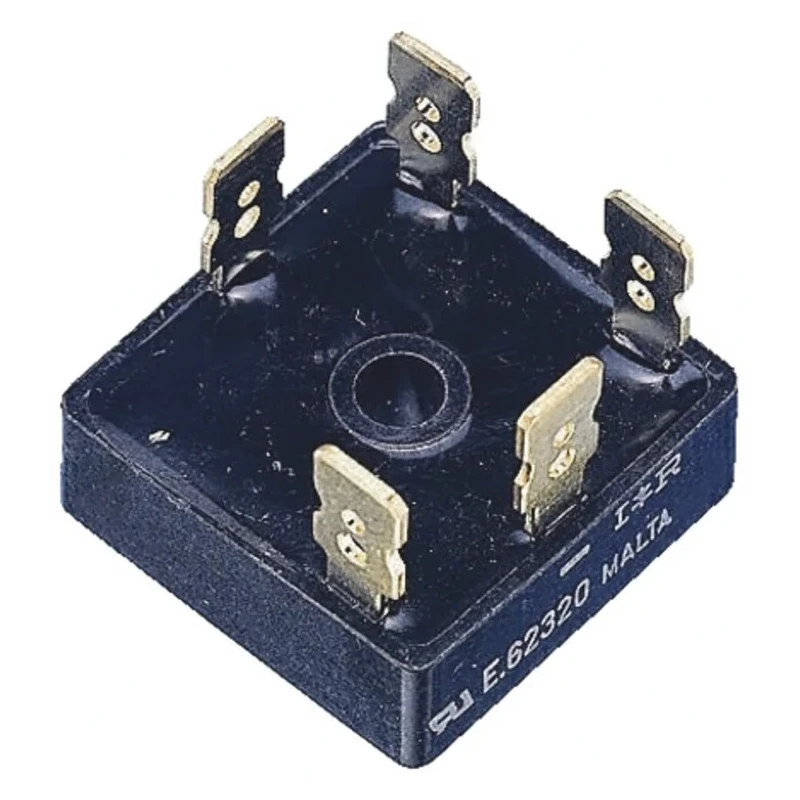

Vishay Three Phase Bridge Rectifier 200 V 35 A Surface Mount D-63 Package 5-Pin Single VS-36MT20
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 10mm |
| Length | 28.5mm |
| Model | VS-36MT20 |
| Width | 28.5mm |
| Mount Type | Surface |
| Series | VS-36MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-63 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 3 |
| Pin Count | 5 |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Forward Current If | 35A |
| Peak Forward Voltage Vf | 1.19V |
| Universal, 3 way terminals | push-on (Fast-on), wrap around or solder |
Key Features
- Surface mount type with D-63 package ensuring compact and reliable installation.
- 5-pin single configuration designed for three-phase full wave rectification.
- Maximum operating temperature of 150°C allows use in demanding environments.
- Peak non-repetitive forward surge current of 500 A supports high transient loads.
- Operates reliably between -55°C to 150°C temperature range.
- Forward voltage drop of 1.19 V improves energy efficiency during conduction.
- High thermal conductivity package with electrically insulated case for safety and performance.
- Chassis mountable with center hole fixing to enhance mechanical stability.
Product Description
Vishay VS-36MT20 is a three-phase bridge rectifier designed for converting AC input into DC output with full-wave rectification. This bridge rectifier features a 200 V peak reverse repetitive voltage and a forward current rating of 35 A, making it suitable for industrial, electronic, and power supply applications.
The device employs a D-63 surface mount package with five pins arranged for a single configuration, optimized for three-phase full wave rectifier circuits. Its high thermal conductivity package is electrically insulated, allowing for efficient heat management and increased reliability.
Operating temperature ranges from -55°C to 150°C, with a peak non-repetitive forward surge current of 500 A, enabling the rectifier to withstand transient current spikes. The forward voltage drop of 1.19 V reduces energy losses during conduction.
The rectifier includes universal three-way terminals with push-on (Fast-on), wrap-around, or solder mounting options, providing versatility for installation. A center hole allows secure chassis mounting, enhancing mechanical stability in various manufacturing and electronic equipment settings.
Produced in India, this Vishay Bridge Rectifier combines excellent power-to-volume ratio and high reliability, suitable for electronics manufacturing, power conversion systems, industrial machinery, and HVAC control panels.
Surface mount D-63 package with push-on terminals. High-temperature operation up to 150°C supports demanding industrial use. Designed for three-phase bridge rectification applications. Efficient thermal performance and electrical insulation.
Suitable for automated machinery integration. Explore more industrial rectifiers and semiconductor components with Vishay on EnvMart for enhanced electronic design and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this bridge rectifier is 150°C, allowing it to be used in demanding environments.
The forward current rating of the VS-36MT20 is 35 A, making it suitable for various industrial and electronic applications.
This model has a peak reverse repetitive voltage of 200 V, which is essential for its operation in three-phase circuits.
The D-63 package has dimensions of 28.5 mm in length, 28.5 mm in width, and a height of 10 mm.
The peak non-repetitive forward surge current for this rectifier is 500 A, allowing it to handle high transient loads effectively.
The forward voltage drop of 1.19 V improves energy efficiency during conduction by reducing energy losses.
It includes universal three-way terminals for push-on (Fast-on), wrap-around, or solder mounting options, providing versatility for installation.
This bridge rectifier operates reliably within a temperature range of -55°C to 150°C.
The rectifier features a single configuration designed for three-phase full wave rectification.
The VS-36MT20 is produced in India, ensuring a specific origin for the product.
This model uses universal three-way terminals that can be mounted using push-on (Fast-on), wrap-around, or solder methods.
It is suitable for applications in electronics manufacturing, power conversion systems, industrial machinery, and HVAC control panels.
