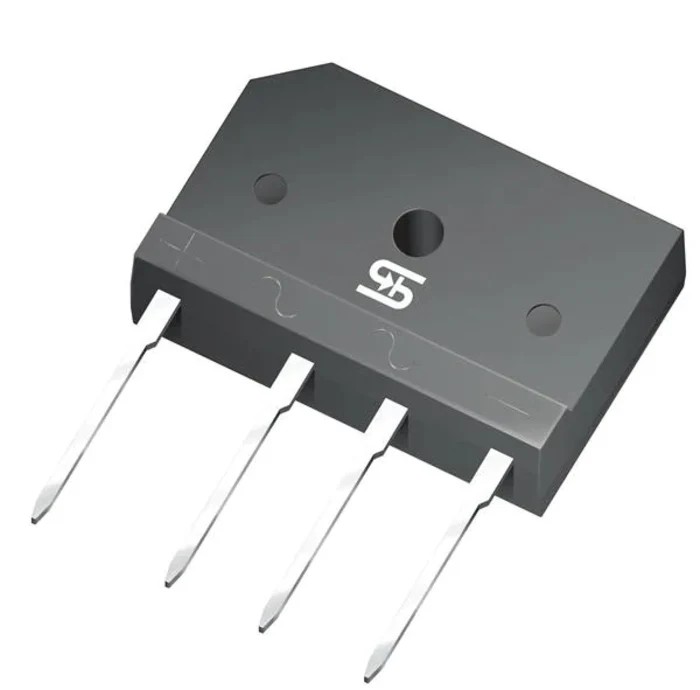

Taiwan Semiconductor Bridge Rectifier, 1000 V, 312 A, 4-Pin Quad TS-6PL T25JA07G-K

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor Bridge Rectifier, 1000 V, 312 A, 4-Pin Quad TS-6PL T25JA07G-K

Name: Taiwan Semiconductor Bridge Rectifier, 1000 V, 312 A, 4-Pin Quad TS-6PL T25JA07G-K
Brand: Taiwan Semiconductor
SKU: 405821
Price: 1.48 USD
Availability: InStock



Category Bridge Rectifier Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	30mm
Length	29.3mm
Model	T25JA07G-K
Mount Type	Through Hole
Configuration	Quad
Maximum Operating Temperature	150°C
Package Type	TS-6PL
Minimum Operating Temperature	-55°C
Number of Phases	1
Standards/Approvals	UL, RoHS, IEC 61249-2-21
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	1000V
Peak Reverse Current Ir	0μA
Peak Non-Repetitive Forward Surge Current Ifsm	312A
Forward Current If	25A
Peak Forward Voltage Vf	1.15V

Key Features

Through hole mount type suited for PCB integration.
Peak non-repetitive forward surge current of 312 A for high surge withstand capability.
Forward current rating of 25 A ensuring reliable continuous conduction.
Wide operating temperature range from -55°C to 150°C for durability.
Glass passivated chip junction for enhanced stability and long service life.
Low peak forward voltage of 1.15 V minimizes power loss.
Zero peak reverse current for efficient rectification performance.
UL recognized and RoHS compliant with halogen-free construction.

Product Description

Taiwan Semiconductor T25JA07G-K bridge rectifier is designed for robust performance with a peak reverse repetitive voltage of 1000 V and a peak surge current of 312 A. Packaged in a TS-6PL through hole mount with 4 pins in a quad configuration, it offers reliable switching and rectification capabilities.

The device operates efficiently over a broad temperature range from -55°C to 150°C, making it suitable for demanding industrial and commercial electronics applications. Its glass passivated chip junction ensures high stability and durability while the low peak forward voltage of 1.15 V reduces conduction losses.

This bridge rectifier is compliant with UL certification and RoHS standards, including halogen-free requirements per IEC 61249-2-21. It is optimized for use in switching mode power supplies (SMPS), adapters, and lighting systems where high surge current and stable voltage handling are critical.

Applications include industrial electronics, power management circuits, and electronic assemblies requiring fabricated discrete semiconductors capable of high current rectification.

Through hole mount type suited for PCB integration. Peak surge current of 312 A ensures robust transient performance. Forward current rating of 25 A supports steady continuous usage. Wide temperature tolerance from -55°C to 150°C enhances reliability.

Glass passivated junction improves long-term circuit stability. Low forward voltage drop minimizes energy loss. Zero microampere peak reverse current for effective blocking. RoHS and UL certified for environmental and safety compliance.

Compact form factor measuring 29.3 mm by 30 mm facilitates space-saving design. Halogen-free construction aligned with IEC 61249-2-21 standards. Choose Taiwan Semiconductor T25JA07G-K for high-quality, efficient power rectification in modern electronic systems.
