HY Electronic Corp Bridge Rectifier 600 V 175 A 4-Pin Single GBJ606

Free Delivery in India | Lowest Global Shipping Charges

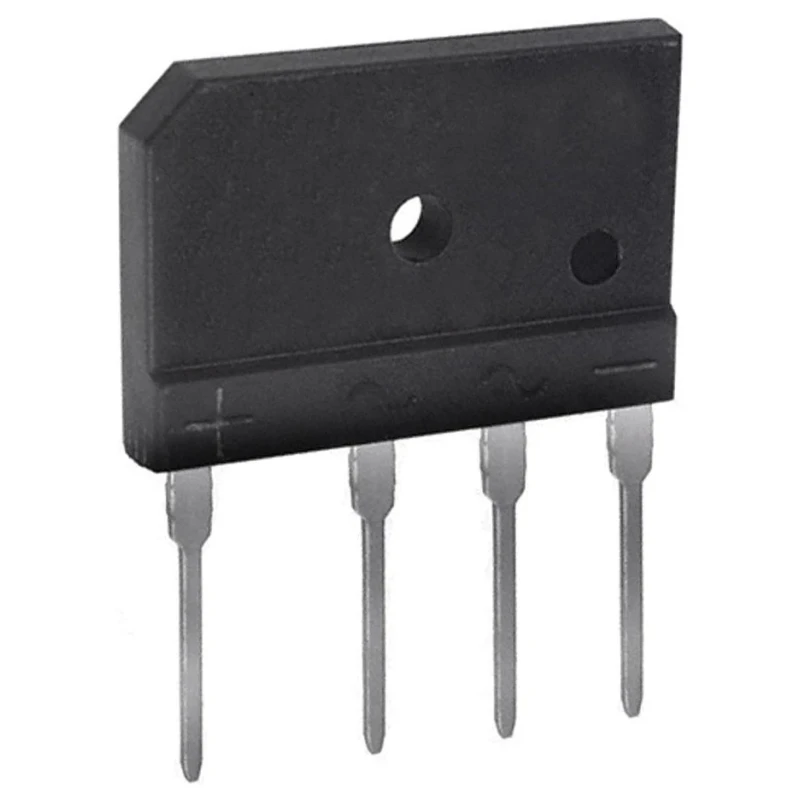

HY Electronic Corp Bridge Rectifier 600 V 175 A 4-Pin Single GBJ606

Name: HY Electronic Corp Bridge Rectifier 600 V 175 A 4-Pin Single GBJ606
Brand: HY Electronic Corp
SKU: 389698
Price: 0.66 USD
Availability: InStock



Category Bridge Rectifier Brand HY Electronic Corp Condition New

Specifications

Country of Origin	China
Brand	HY Electronic Corp
Height	19.7mm
Length	30.3mm
Model	GBJ606
Width	4.8mm
Mount Type	Through Hole
Series	GBJ
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	GBJ
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	600V
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	175A
Forward Current If	6A
Peak Forward Voltage Vf	1V
DiodesZetex Bridge Rectifier, 600 V 170 A, 4-Pin SingleBrand	DiodesZetex

Key Features

The device features a peak reverse repetitive voltage (Vrrm) of 600 volts.
It supports a forward current (If) of 6 amperes with a peak forward voltage (Vf) of 1 volt.
The rectifier operates within a temperature range of -55°C to 150°C maximum.
It has a peak non-repetitive forward surge current (Ifsm) rating of 175 amperes.
The package type is GBJ, with physical dimensions of 30.3 mm length, 19.7 mm height, and 4.8 mm width.
This bridge rectifier transforms AC to DC and is suitable for industrial and electronic circuit applications.

Product Description

HY Electronic Corp GBJ606 Bridge Rectifier is a high-capacity 4-pin single-phase device designed for through-hole mounting. Rated for 600 V peak reverse repetitive voltage and a forward current of 6 A, this bridge rectifier efficiently converts alternating current (AC) into direct current (DC) making it suitable for various electronic and power supply applications.

The rectifier is constructed with glass passivated diodes offering low forward voltage drop and high current capability. With a peak forward voltage of 1 V and a peak non-repetitive forward surge current rating of 175 A, it delivers reliable performance under demanding conditions.

Operating temperature ranges from -55°C minimum to 150°C maximum, ensuring stable operation in industrial environments. Its compact GBJ package measures 30.3 mm in length, 19.7 mm in height, and 4.8 mm in width, allowing easy integration into PCBs.

Manufactured in China, this component is ideal for use in semiconductors, power electronics, and discrete semiconductor assemblies. It does not comply with automotive standards but meets the requirements for general industrial use.

Peak reverse repetitive voltage rating of 600 V ensures voltage durability. Forward current handling capability up to 6 A supports moderate load circuits. Peak non-repetitive surge current of 175 A protects against transient currents.

Glass passivated construction improves reliability and reduces forward voltage drop. Compact GBJ package facilitates PCB through-hole mounting.
