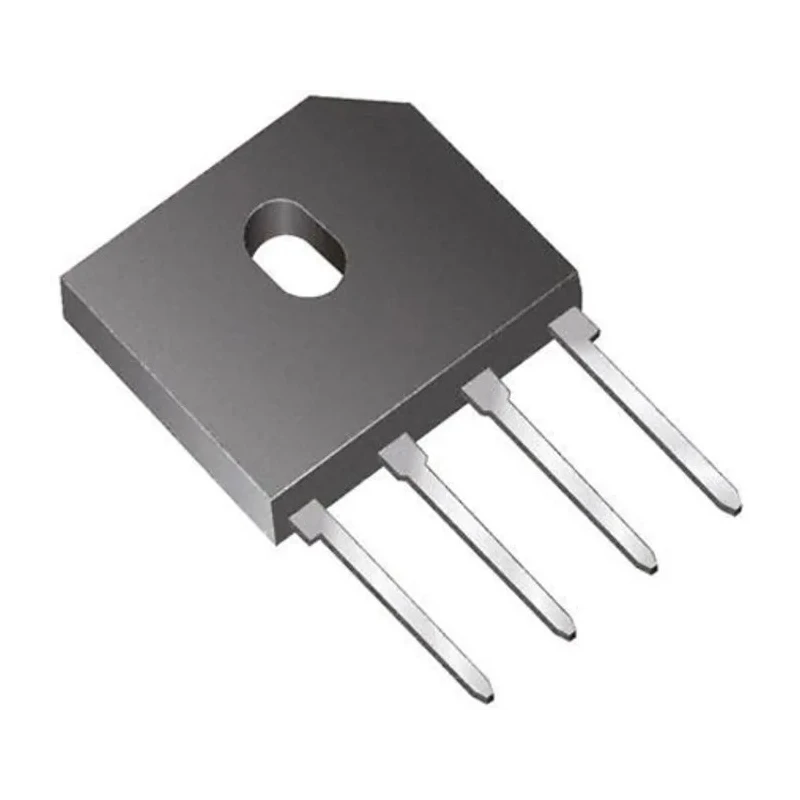

Taiwan Semiconductor Bridge Rectifier 600 V 175 A 4-Pin Single GBU605

Taiwan Semiconductor GBU605 Bridge Rectifier is a high-performance 4-pin single-phase diode bridge rectifier designed for efficient conversion of alternating current (AC) into direct current (DC). With a peak reverse repetitive voltage rating of 600 V and a forward continuous current of 6 A, this device is ideal for printed circuit boards requiring through-hole mounting.

The GBU605 features a robust GBU package with a compact form factor measuring 22.3 mm in length, 18.8 mm in height, and 3.56 mm in width, making it suitable for densely packed electronic assemblies.

Operating over a wide temperature range from -55°C to 150°C maximum, it ensures reliable performance even in harsh thermal conditions. Its peak non-repetitive forward surge current of 175 A provides excellent handling of transient overloads encountered during startup or fault conditions.

With a low peak forward voltage drop of 1.1 V and minimal peak reverse leakage current of 500 μA, the GBU605 enhances energy efficiency and reduces power loss in power conversion circuits.

This bridge rectifier is compliant with the rigorous automotive standard AEC-Q101, reinforcing its suitability for automotive and other high-reliability applications. The high case dielectric strength of 1500 V RMS further ensures its robustness and electrical isolation capabilities.

Typical use cases include power supplies, industrial electronics, and semiconductor circuit boards requiring reliable AC to DC conversion. Its through-hole mount type allows easy installation and stable mechanical connection on PCBs.

The device supports a peak non-repetitive forward surge current of 175 A. It operates reliably across a wide temperature range from -55°C to 150°C maximum. The package type is GBU with compact dimensions of 22.3 mm x 18.8 mm x 3.56 mm.

Provides a low peak forward voltage drop of 1.1 V and minimal reverse leakage current of 500 μA. Meets automotive standard AEC-Q101 for enhanced durability in demanding environments. High case dielectric strength of 1500 V RMS for superior electrical isolation.

Ideal for industrial, automotive, and semiconductor electronic applications. Explore our full range of semiconductor Bridge Rectifiers at EnvMart for additional options suited to diverse electrical and industrial requirements.
