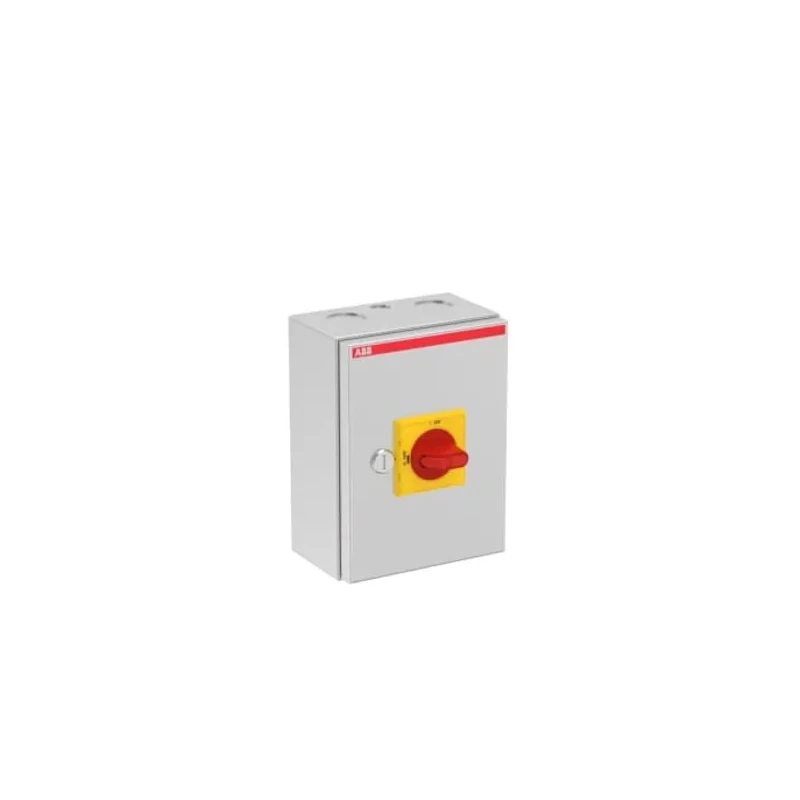

ABB 3-Pole Screw Switch Disconnector IP65 Rated Enclosure, 0A, Series OTR

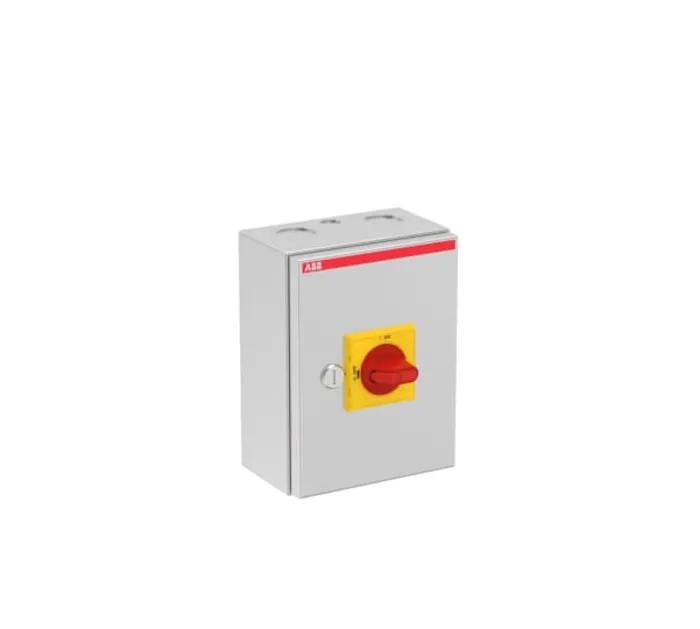

ABB 1SCA022569R6780 OTR63BA3M 3-Pole Screw Switch Disconnector features a durable enclosure constructed from rigid AISI304 stainless steel, classified under the OTR series. This IP65 rated switch disconnector is designed for both indoor and outdoor industrial use, providing excellent protection against dust and water ingress.

The enclosure includes a hinged door equipped with a lock and an interlock mechanism that prevents the door from being opened while the switch is in the 'on' position, enhancing operator safety. The interlock function can be overridden for thermographing purposes.

Equipped with three poles, this switch disconnector supports a rated operational voltage of up to 750V and includes screw clamp terminals for secure wiring connections. It also incorporates N- and PE terminals for grounding and neutral connections. The product includes one mounted auxiliary contact set, consisting of 1 normally open (NO) and 2 normally closed (NC) contacts, allowing integration with control circuits.

The cable entries are knock-out types, simplifying the cable installation process and enabling flexibility in wiring arrangements. The handle is black colored for clear visibility, and the switch is designed to operate reliably from a minimum temperature of 0°C. The product complies with RoHS standards ensuring environmental safety and regulatory compliance.

Physical dimensions are 150mm in width, 100mm in depth, and 100mm in length, making it compact for various industrial installations including electrical panels, control systems, and automation equipment.

This 3-pole screw switch disconnector is suitable for applications in industrial electrical systems, automation, manufacturing plants, HVAC systems, water treatment facilities, and commercial electrical installations.

Explore the ABB range of isolator switches and Switch Disconnectors at EnvMart for reliable industrial-grade electrical components. The enclosure is made of rigid AISI304 stainless steel with a hinged door and lock for security.

The interlocked cover prevents the door from opening when the switch is turned on. Featuring 3 poles, the switch supports a rated operational voltage of 750V. Includes screw clamp terminals, N- and PE terminals, and one set of auxiliary contacts (1NO/2NC).

Cable entries use knock-out types for easy wiring installation. Designed for a minimum operating temperature of 0°C, ensuring reliable operation in various environments. Complies with RoHS standards and is suitable for use in electrical automation and control systems.

Compact dimensions of 150mm width, 100mm depth, and 100mm length facilitate installation.
