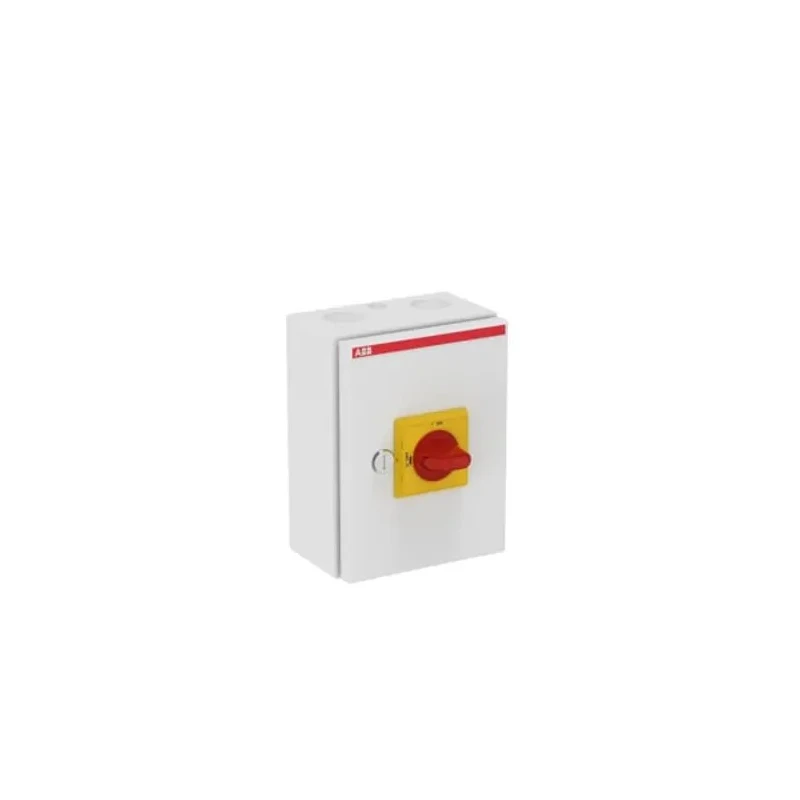

ABB 6-Pole Screw Mount Switch Disconnector IP65 Rated Handle Yellow Red Series OTL

ABB 1SCA022612R9560 is a 6-pole screw mount switch disconnector from the OTL series, rated IP65 for outdoor and industrial use. With a robust enclosure made from rigid alu-zinc coated steel with polyester powder coating, it ensures excellent durability. The enclosure includes a hinged door with a lock and an interlock feature that prohibits opening the door when the switch is in the ON position, enhancing safety.

The switch disconnector is suitable for environments exposed to Ultraviolet light, water exposure, and immersion as per UL746C standards. Knockout type cable entries enable flexible wiring options, and a PE terminal is included for grounding purposes.

This device operates at a rated voltage of 750V and supports 6 poles, making it ideal for isolating multi-phase circuits. It features screw clamp terminals and a handle colored yellow and red for easy identification. The device supports mounting up to 2 auxiliary contacts (2NO/2NC) for additional control functions.

The enclosure dimensions are 150mm width, 100mm length, and 100mm depth, designed for screw mounting in various electrical panels or setups. Its minimum operating temperature is 0°C, and it complies with RoHS standards ensuring environmentally safe manufacturing.

The ABB 6-Pole Screw Switch Disconnector is typically used in electrical automation, industrial controls, and machinery isolation to securely isolate electrical circuits for maintenance and protection.

Designed with 6 poles for comprehensive switching capability. Mounted using screw type ensuring robust and stable installation. IP65 rated enclosure provides protection against dust and water ingress. Handle colored yellow and red for clear operational identification.

Constructed with rigid alu-zinc coated steel with polyester powder coating for durability. Equipped with interlocked hinged door prevents opening when the switch is on. Suitable for outdoor applications with UV and water exposure resistance per UL746C.

Terminal type includes screw clamp with PE terminal provided. Supports rated operational voltage up to 750V. Capable of mounting up to 2 auxiliary contacts for enhanced functionality. Explore more industrial electrical switches and disconnectors from ABB and other leading brands through EnvMart’s extensive catalog.
