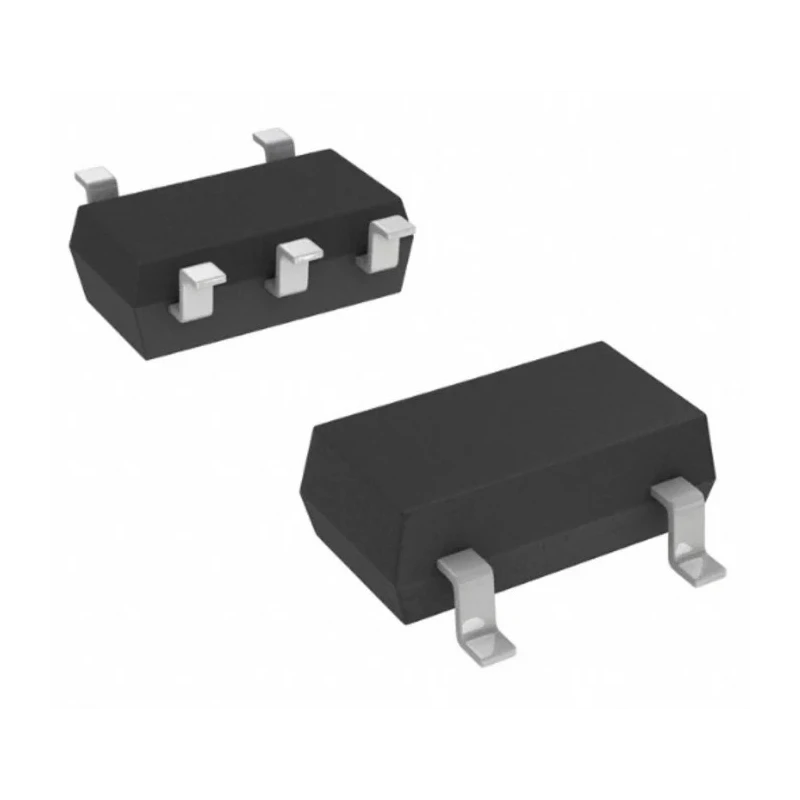

Toshiba Power Switch IC 5-Pin SOT-25 Low On-Resistance 0.063Ω Maximum Supply Voltage 5.5V TCK106AF,LF(T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Model | TCK106AF,LF(T |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-25 |
| Minimum Operating Temperature | -40°C |
| Operating Current | -0.5A |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Switch On Resistance RdsOn | 0.063Ω |
Key Features
- The IC supports wide input voltage operation from 1.1 to 5.5 volts.
- Compact 5-pin SOT-25 package ensures easy PCB integration.
- Built-in slew rate control driver for smooth switching performs efficiently.
- Operating current rating of -0.5A with temperature range from -40°C to 85°C.
- Includes auto discharge function improving circuit safety and reliability.
- Ideal for industrial, electronic component, and power management system applications.
- Designed without automotive standard compliance, suitable for general electronics.
- Ensures low power loss with switch ON resistance optimized at 0.063 ohms.
Product Description
Toshiba TCK106AF,LF(T is a Power Switch IC designed for general power management tasks within electronic circuits. Packaged in a compact 5-pin SOT-25 format, it features a low switch ON resistance of 0.063 ohms which ensures efficient power switching and minimal energy loss.
This device operates reliably with a wide voltage range between 1.1 volts minimum and a maximum supply voltage of 5.5 volts. It integrates a built-in slew rate control driver which smoothens the switching process, reducing noise and electrical surges.
The TCK106AF,LF(T supports an operating current up to -0.5 amperes and withstands temperatures ranging from -40 to 85 degrees Celsius, making it suitable for a variety of standard environments in electronics manufacturing and maintenance.
Additional built-in auto discharge function enhances circuit safety by discharging residual power when the switch is turned off, preventing unexpected current flows. This power switch IC is commonly applied in power management systems, industrial systems, and electronic component assemblies where efficient power control is required.
The IC supports wide input voltage operation from 1.1 to 5.5 volts. Compact 5-pin SOT-25 package ensures easy PCB integration. Built-in slew rate control driver for smooth switching performs efficiently. Operating current rating of -0.5A with temperature range from -40°C to 85°C.
Includes auto discharge function improving circuit safety and reliability. Ideal for industrial, electronic component, and power management system applications. Designed without automotive standard compliance, suitable for general electronics.
Ensures low power loss with switch ON resistance optimized at 0.063 ohms. Explore the Power Switch IC category at EnvMart for reliable electronic components from top brands like Toshiba to meet your industrial and electronic design needs.
Explore more products in our Power Switch ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.5 volts.
It supports an operating current rating of -0.5 amperes.
This power switch IC operates within a temperature range of -40°C to 85°C.
The switch ON resistance is optimized at 0.063 ohms.
It is packaged in a compact 5-pin SOT-25 format, ensuring easy PCB integration.
Yes, it includes an auto discharge function that improves circuit safety by discharging residual power when the switch is turned off.
This power switch IC is ideal for industrial applications, electronic component assemblies, and power management systems.
The minimum operating voltage is 1.1 volts.
This model has a pin count of 5.
The built-in slew rate control driver smoothens the switching process, reducing noise and electrical surges during operation.
The country of origin for this power switch IC is India.
No, it is designed without automotive standard compliance and is suitable for general electronics.
