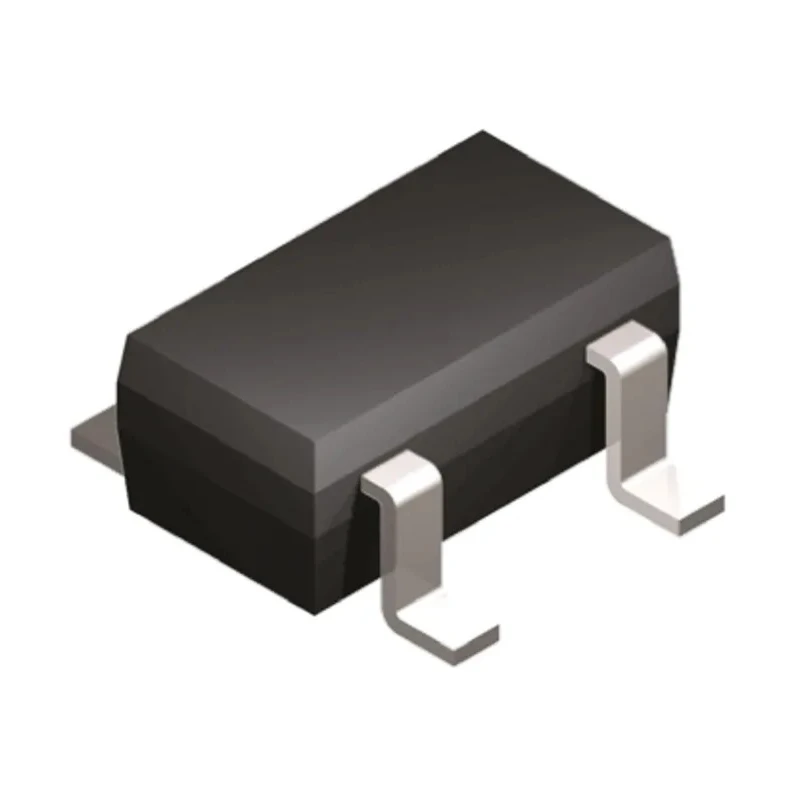

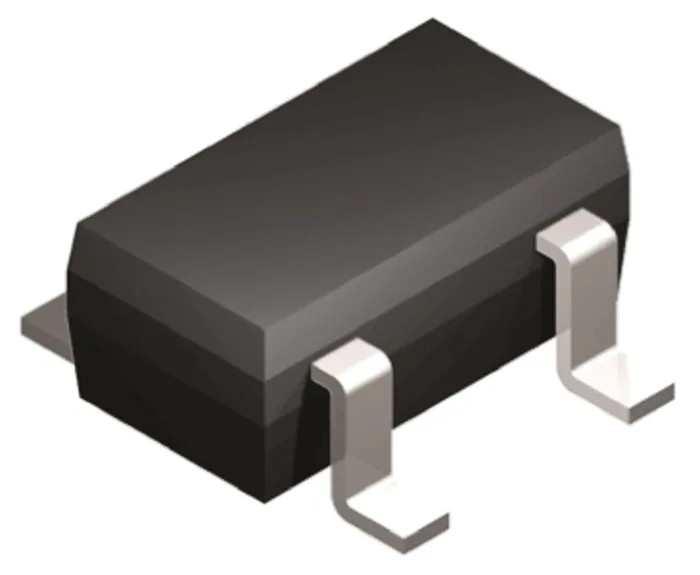

DiodesZetex Single Channel Current Monitor Amplifier 3-Pin SOT-25 Package ZXCT1110W5-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.1mm |
| Length | 3mm |
| Model | ZXCT1110W5-7 |
| Mount Type | Surface |
| Series | ZXCT1110 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-25 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 100nA |
| GBP - Gain Bandwidth Product | 0.65MHz |
Key Features
- Operates over a supply voltage range of 2.5V to 36V.
- Low supply current of 100nA for energy-efficient applications.
- Gain Bandwidth Product of 0.65MHz for responsive signal amplification.
- Temperature range from -40°C to 125°C compliant with AEC-Q100 automotive standard.
- Compact 3mm length and 1.1mm height for space-constrained PCB integration.
- Surface mount SOT-25 package simplifies PCB assembly processes.
- Suitable for industrial, automotive, and power monitoring current measurement applications.
Product Description
DiodesZetex ZXCT1110W5-7 is a high-precision single channel current monitor amplifier in a compact 3-pin SOT-25 surface mount package, designed to measure current by sensing voltage across very low-value resistors in power rails.
Operating over a wide voltage range from 2.5V to 36V with a low supply current of 100nA, this device is optimized for energy-efficient industrial and automotive applications. It operates reliably across a broad temperature spectrum from -40°C up to 125°C, conforming to the stringent AEC-Q100 automotive standard.
The device's Gain Bandwidth Product of 0.65MHz ensures rapid and stable signal amplification suitable for dynamic current sensing needs. Its compact dimensions (3mm length, 1.1mm height) make it ideal for use in dense PCB environments with space constraints.
Packaging in the SOT-25 surface mount type enables straightforward assembly and integration into electronic components, power connectors, and semiconductor systems for precise current monitoring.
The device supports single channel current monitoring with a pin count of 3. Typical applications include industrial power rail monitoring, automotive electronics, and general current measurement in semiconductor systems.
Its output voltage is directly proportional to the current flow through the connected resistor, allowing accurate real-time measurements. Surface mounting capability allows efficient manufacturing workflows. This current sensing amplifier is manufactured in China and is supplied new, ready for use in demanding electronic and automotive systems.
Explore EnvMart’s extensive range of electronic components and amplify your design efficiency with quality semiconductor devices like the ZXCT1110W5-7 Current Monitor amplifier.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This current monitor amplifier operates over a supply voltage range of 2.5V to 36V.
The supply current for the ZXCT1110W5-7 is 100nA, making it suitable for energy-efficient applications.
The Gain Bandwidth Product (GBP) of the ZXCT1110W5-7 is 0.65MHz, which supports responsive signal amplification.
This model operates reliably within a temperature range of -40°C to 125°C, compliant with the AEC-Q100 automotive standard.
The SOT-25 package of the ZXCT1110W5-7 has a length of 3mm and a height of 1.1mm, making it compact for PCB integration.
This current monitor amplifier supports a single channel for current monitoring.
The ZXCT1110W5-7 has a pin count of 3, suitable for surface mount applications.
This amplifier is suitable for industrial power rail monitoring, automotive electronics, and general current measurement in semiconductor systems.
The ZXCT1110W5-7 features a surface mount design, which simplifies PCB assembly processes.
This model complies with the AEC-Q100 automotive standard, ensuring reliability in automotive applications.
The ZXCT1110W5-7 is manufactured in China.
The primary function of this model is to measure current by sensing voltage across very low-value resistors in power rails.
