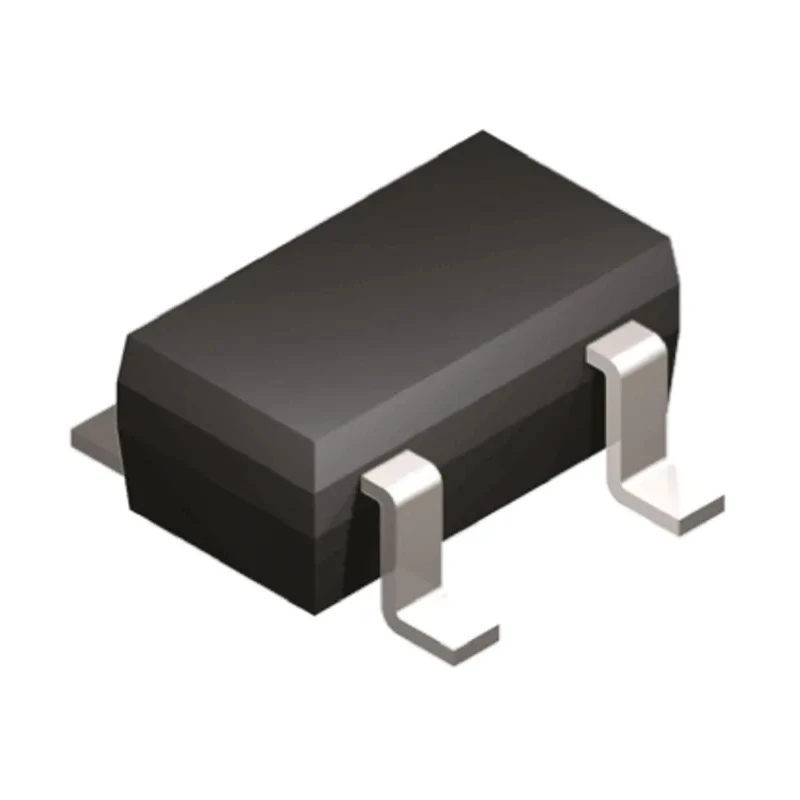

DiodesZetex Current Monitor Single 5-Pin SOT-23, 2.5V to 20V Supply, 35μA Supply Current ZXCT1022E5TA
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | ZXCT1022E5TA |
| Mount Type | Surface |
| Series | ZXCT1022 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 5 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 35μA |
| GBP - Gain Bandwidth Product | 2MHz |
Key Features
- The device operates over a wide supply voltage range from 2.5V to 20V.
- It features a low supply current of only 35μA for energy-efficient applications.
- The gain bandwidth product (GBP) is 2MHz, enabling accurate sensing.
- Operating temperature range spans from -40°C to 85°C, ensuring reliability in harsh environments.
- The compact SOT-23 surface mount package measures 3.1mm in length and 1.3mm in height.
- It provides a voltage output proportional to the volt drop across a low-value resistor for current monitoring.
- Designed without automotive standards, it is suitable for industrial and consumer electronics.
- Ideal for measuring current in high-current power rails with minimal intrusion.
Product Description
DiodesZetex ZXCT1022E5TA current monitor is a precision current sensing amplifier equipped with a single channel and integrated within a 5-pin SOT-23 surface mount package. This current monitor is designed to convert the voltage drop across a very low-value shunt resistor into a proportional voltage output, facilitating accurate current measurement in various electronic power rails.
Operating from a supply voltage as low as 2.5V up to 20V, the device draws a minimal supply current of 35μA, making it highly energy efficient. Its gain bandwidth product of 2MHz supports rapid and accurate current sensing, important for dynamic power management applications.
This device is capable of operating reliably across a temperature range from -40°C to 85°C, suitable for industrial and commercial environments. The compact 3.1mm length and 1.3mm height SOT-23 package ensures easy integration on PCBs, optimizing space usage.
While it does not possess automotive certification, this current sensing amplifier is well suited for industrial automation, consumer electronics, power supplies, and similar domains requiring precise Current Monitoring. The low output voltage relative to current flow across the shunt resistor allows for straightforward interfacing with control systems.
The device supports surface mount technology with a 5-pin configuration for efficient installation. Its small footprint enables compact device design. Voltage output proportional to load current aids in diagnostics and control.
Wide operating temperature and supply voltage range offer flexibility in various applications. Low supply current conserves battery life in portable devices.
China is the country of origin for this product. It is supplied new in packaging ready for rapid assembly into machinery, boosting production efficiency. The product is part of the DiodesZetex ZXCT1022 series of current sensing amplifiers.
Explore the electronics and semiconductor category for similar current sensing and monitoring solutions suited to your design and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a supply voltage range from 2.5V to 20V.
It features a low supply current of only 35μA, making it energy-efficient for various applications.
The gain bandwidth product of this current monitor is 2MHz, enabling accurate current sensing.
This unit operates reliably across a temperature range from -40°C to 85°C.
The compact SOT-23 package measures 3.1mm in length and 1.3mm in height.
It is equipped with a single channel for current measurement.
This current monitor supports surface mount technology with a 5-pin configuration for efficient installation.
It is suitable for industrial automation, consumer electronics, power supplies, and other domains requiring precise current monitoring.
It provides a voltage output proportional to the volt drop across a low-value resistor, facilitating accurate current monitoring.
No, this device is designed without automotive standards and is intended for industrial and consumer electronics.
The country of origin for this product is China.
It is designed to convert the voltage drop across a very low-value shunt resistor into a proportional voltage output for accurate current measurement.
