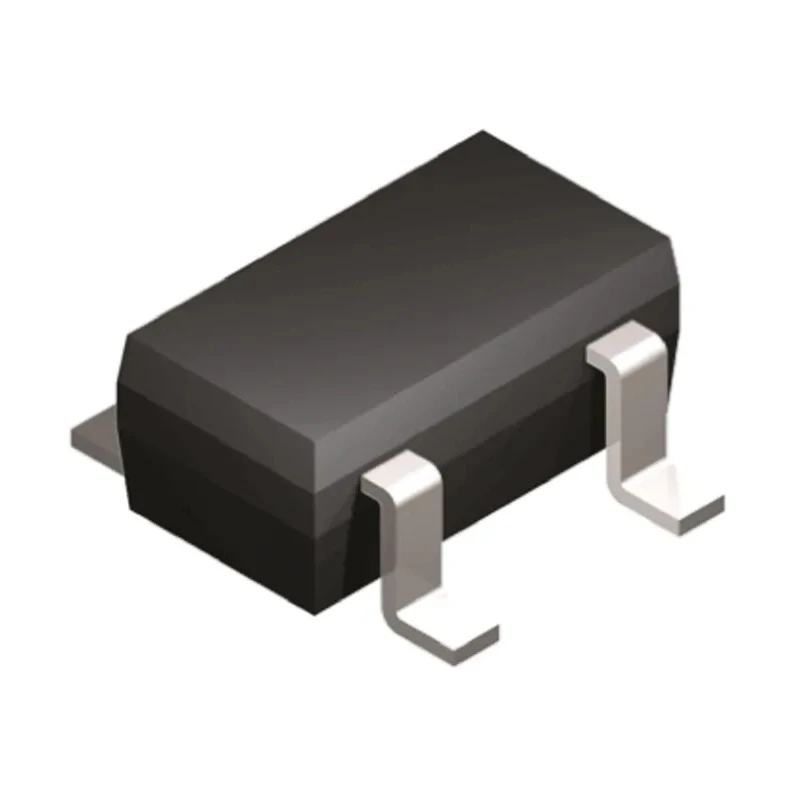

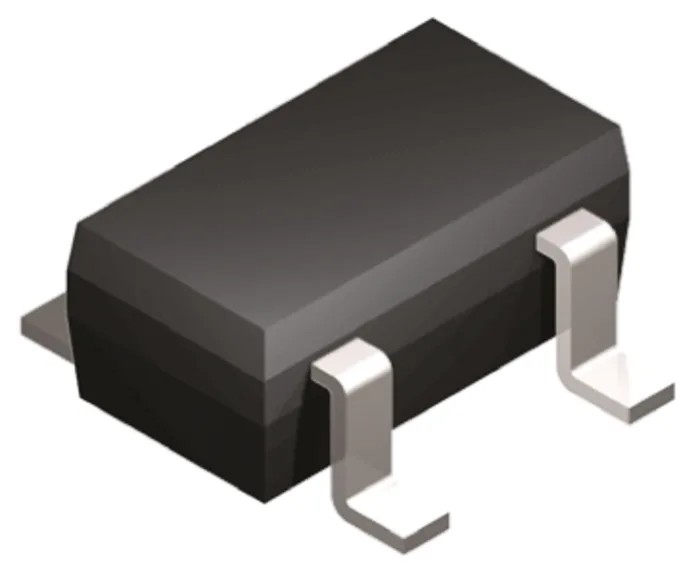

DiodesZetex Current Monitor Single Channel 3-Pin SOT-25 2.5V-36V Supply ZXCT1110W5-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.1mm |
| Length | 3mm |
| Model | ZXCT1110W5-7 |
| Mount Type | Surface |
| Series | ZXCT1110 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-25 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 100nA |
| GBP - Gain Bandwidth Product | 0.65MHz |
Key Features
- Operates over a supply voltage range of 2.5V to 36V.
- Low supply current of 100nA ensures minimal power consumption.
- Gain Bandwidth Product (GBP) of 0.65 MHz allows accurate signal processing.
- Meet automotive standard AEC-Q100 for reliability in harsh environments.
- Compact dimensions of 3 mm length and 1.1 mm height for space-constrained applications.
- Designed for surface mount technology with 3-pin SOT-25 package.
- Wide operating temperature range from -40°C to 125°C.
- Measures voltage output proportional to current flowing through low-value resistors in power rails.
Product Description
DiodesZetex ZXCT1110W5-7 is a highly reliable single-channel current monitor amplifier designed to deliver a voltage output proportional to the voltage drop across a low value resistor in high-current power rails. Packaged in a compact 3-pin SOT-25 surface mount package, it provides accurate current sensing for various industrial and automotive applications.
This device operates with a supply voltage range from 2.5V to a maximum of 36V and consumes an ultra-low supply current of just 100 nanoamps, making it ideal for power-sensitive designs. The gain bandwidth product of 0.65 MHz supports efficient signal amplification and filtering, enabling precise current measurement in demanding environments.
Certified to meet the automotive AEC-Q100 standard, the ZXCT1110W5-7 assures dependable performance under extreme conditions, with an operating temperature range from -40°C to 125°C. Its compact size of 3 mm by 1.1 mm helps integrate the current monitor into space-restricted circuit boards effortlessly.
This current sensing amplifier is widely used in industrial automation, power management modules, and automotive electronics where monitoring of current flow is critical for operational safety and efficiency. It provides engineers with an easy solution for enhancing equipment performance with accurate current feedback.
Operates from 2.5V to 36V supply voltage. Extremely low 100nA supply current consumption. Surface mount 3-pin SOT-25 package with compact size. Automotive grade AEC-Q100 qualified. Wide temperature operating range of -40°C to 125°C.
Gain bandwidth product suitable for current sensing applications. Reliable Current Monitoring in industrial and automotive equipment. Voltage output directly proportional to current sensed.
Available with technical documents and RoHS compliance certification, this product is ideal for electronics manufacturers and system integrators to improve production efficiency. It supports modern PCB design workflows, including 3D mechanical modeling and footprints for easy integration.
Explore our full range of current sensing amplifiers and related semiconductors on EnvMart to find complementary components for your design and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a supply voltage range of 2.5V to 36V.
It has an ultra-low supply current consumption of just 100 nanoamps (nA).
The Gain Bandwidth Product (GBP) is 0.65 MHz, suitable for efficient signal amplification and filtering.
This unit operates within a wide temperature range from -40°C to 125°C.
It is packaged in a compact 3-pin SOT-25 surface mount package.
Yes, it meets the automotive standard AEC-Q100 for reliability in harsh environments.
The dimensions of this model are 3 mm in length and 1.1 mm in height.
This device supports a single channel for current monitoring.
It is widely used in industrial automation, power management modules, and automotive electronics for monitoring current flow.
It provides a voltage output that is proportional to the voltage drop across a low-value resistor in power rails.
This model has a pin count of 3.
The country of origin for this device is China.
