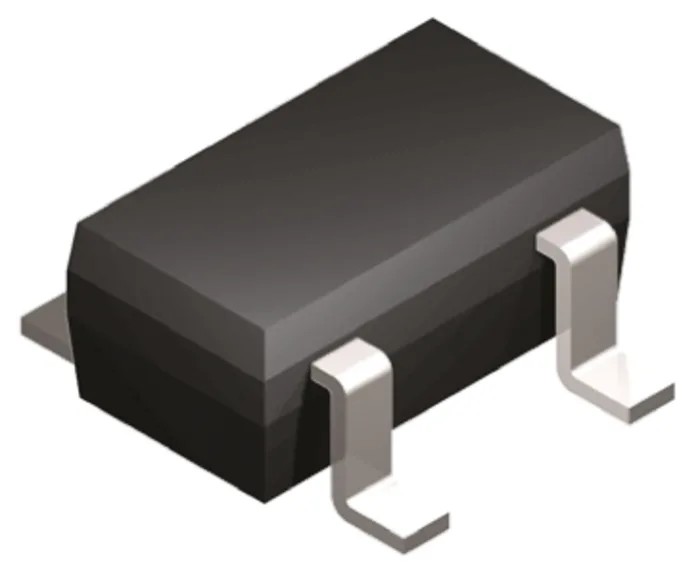

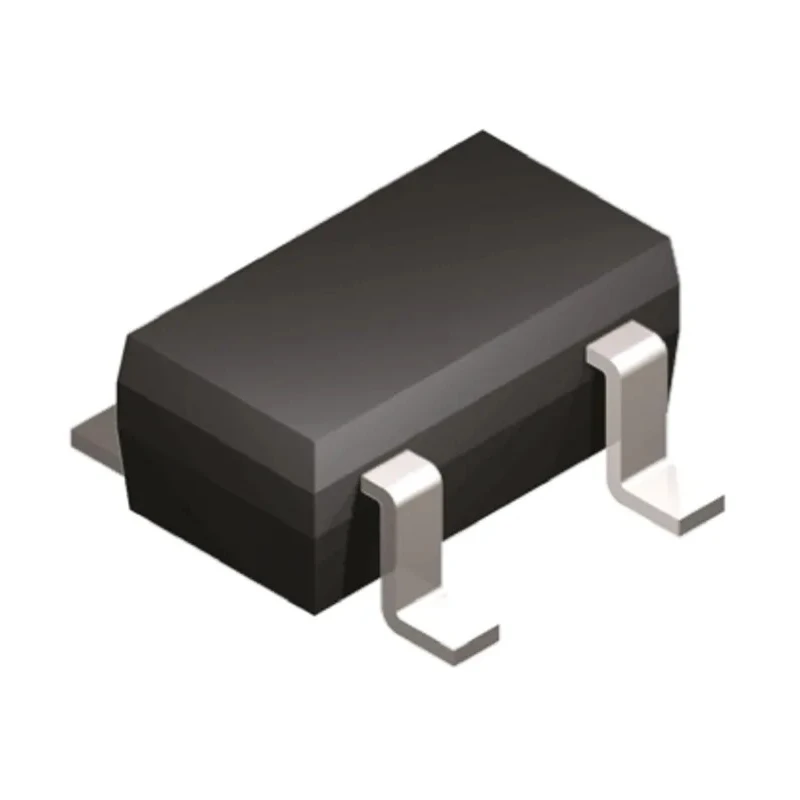

DiodesZetex Current Monitor Single 5-Pin SOT-25 2.7V to 60V Supply ZXCT1084E5TA
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | ZXCT1084E5TA |
| Mount Type | Surface |
| Series | ZXCT1084 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-25 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 60V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 2μA |
| GBP - Gain Bandwidth Product | 500kHz |
| CMRR - Common Mode Rejection Ratio | 100dB |
Key Features
- Operates with a supply voltage range from 2.7 volts to 60 volts.
- Features a single channel configuration with a 5-pin SOT-25 surface mount package.
- Exhibits a low supply current of just 2 microamperes for energy efficiency.
- Provides a common mode rejection ratio (CMRR) of 100 dB for noise reduction.
- Has a gain bandwidth product (GBP) of 500 kHz for precise amplification.
- Designed to operate reliably in temperatures from minus 40 degrees Celsius to 125 degrees Celsius.
- Complies with automotive standard AEC-Q100, suitable for harsh automotive environments.
- Compact dimensions measuring 3.1 mm in length and 1.3 mm in height.
Product Description
DiodesZetex ZXCT1084E5TA Current Monitor Single 5-Pin SOT-25 operates as a high-precision current sensing amplifier with voltage output proportional to the voltage drop across a low-value resistor in high-current power rails. It is engineered to accurately measure current flow in demanding industrial, automotive, and electronic systems.
This device supports a wide supply voltage range from 2.7 V up to 60 V, making it versatile for various power supply configurations. It draws an ultra-low supply current of 2 μA, enhancing energy efficiency in battery-powered and low-power designs.
The 5-pin SOT-25 surface mount package offers a compact form factor, measuring 3.1 mm in length and 1.3 mm in height, ideal for space-constrained PCB layouts. The amplifier achieves a high common mode rejection ratio (100 dB) to minimize noise interference in measured signals.
With a gain bandwidth product of 500 kHz, ZXCT1084E5TA delivers accurate amplification over a wide frequency spectrum. It is specified for operation in extreme environments with a temperature range from -40°C to 125°C and meets the rigorous AEC-Q100 automotive qualification standard, ensuring durability and reliability for automotive applications.
This current sensing amplifier is suitable for monitoring current in power rails, motor control systems, battery management, and industrial instrumentation. It facilitates precise current measurement and protection functions in electronic designs.
Operates over 2.7 V to 60 V supply voltage range. Ultra-low supply current of 2 μA for efficient power consumption. Compact 5-pin SOT-25 surface mount package. High common mode rejection ratio of 100 dB improves noise immunity.
Gain bandwidth product of 500 kHz enables precise amplification. Automotive grade AEC-Q100 certification for reliability. Wide operating temperature range from -40°C to 125°C. Compact dimensions: 3.1 mm length by 1.3 mm height.
Explore EnvMart’s comprehensive range of semiconductor Current Sensing Amplifiers for your industrial, automotive, and electronic projects to ensure optimal current monitoring and control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a supply voltage range from 2.7 volts to 60 volts.
The device exhibits a low supply current of just 2 microamperes, enhancing energy efficiency.
This model has compact dimensions measuring 3.1 mm in length and 1.3 mm in height.
It provides a common mode rejection ratio (CMRR) of 100 dB for noise reduction.
The gain bandwidth product (GBP) is 500 kHz, enabling precise amplification over a wide frequency spectrum.
It is designed to operate reliably in temperatures from -40 degrees Celsius to 125 degrees Celsius.
This model complies with the automotive standard AEC-Q100, suitable for harsh automotive environments.
It features a single channel configuration.
It comes in a 5-pin SOT-25 surface mount package, ideal for space-constrained PCB layouts.
It is suitable for monitoring current in power rails, motor control systems, battery management, and industrial instrumentation.
The maximum operating temperature is 125 degrees Celsius.
The minimum supply voltage is 2.7 volts.
