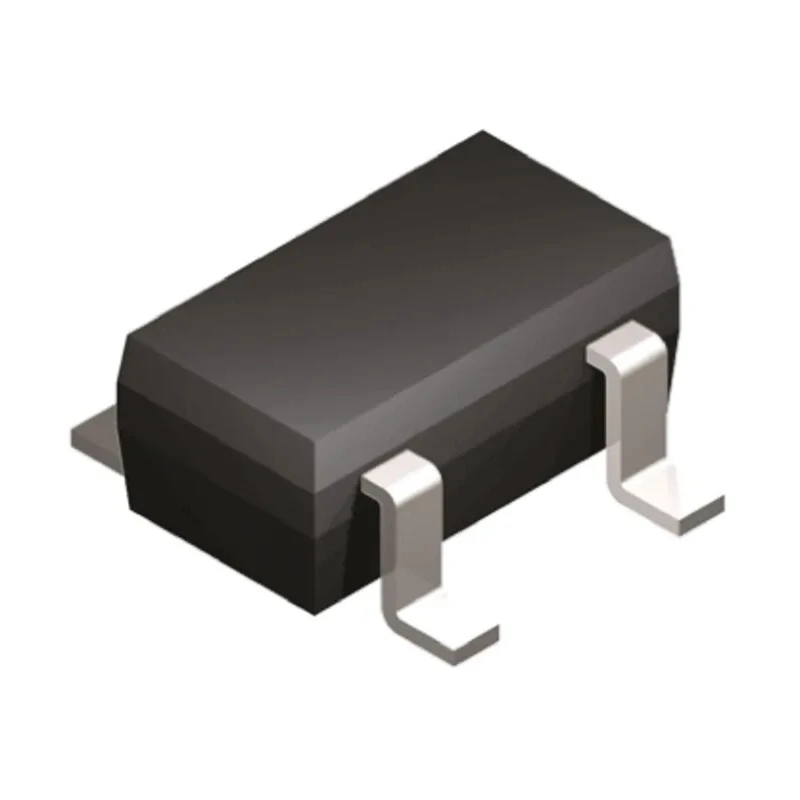

DiodesZetex Current Monitor Single Channel 5-Pin SOT-23 Package ZXCT1022E5TA
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | ZXCT1022E5TA |
| Mount Type | Surface |
| Series | ZXCT1022 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-5131Brand: DiodesZetexManufacturers Part No.: ZXCT1022E5TA |
| Pin Count | 5 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 35μA |
| GBP - Gain Bandwidth Product | 2MHz |
| ZXCT1022E5TA DiodesZetex Current Monitor Single 5-Pin SOT-23RS Stock No. | 738-5131Brand: DiodesZetexManufacturers Part No.: ZXCT1022E5TA |
Key Features
- Operates with a minimum supply voltage of 2.5V and maximum of 20V.
- Low supply current consumption of 35μA for power-efficient applications.
- Single channel configuration with 5-pin SOT-23 surface mount package.
- Wide temperature operation range from -40°C to 85°C.
- Gain bandwidth product of 2MHz ensures fast and accurate current sensing.
- Compact device dimensions with 3.1mm length and 1.3mm height.
- Designed for surface mount applications requiring precise current measurements.
- Manufactured in China with high reliability for industrial electronics use.
Product Description
DiodesZetex ZXCT1022E5TA Current Monitor is a highly reliable single channel current sensing amplifier housed in a compact 5-pin SOT-23 package. It operates efficiently over a wide supply voltage range of 2.5V to 20V, consuming minimal power with a supply current of only 35μA.
This device is optimized for precise current measurement by providing a voltage output proportional to the voltage drop across a low-value shunt resistor in high-current power rails. Its gain bandwidth product of 2MHz ensures high-speed response suitable for modern industrial and electronic applications.
The ZXCT1022E5TA supports surface mount assembly and is ideal for integration in compact, high-density electronic circuits. Its robust operating temperature range from -40°C to 85°C makes it suitable for automotive and industrial environments where temperature fluctuations are common.
Measuring just 3.1mm in length and 1.3mm in height, the SOT-23 package ensures a small PCB footprint, enabling space-saving designs in power management and current monitoring circuits.
Applications of this current monitor include voltage and current sensing in industrial machinery, automotive electronics, power supplies, laboratory instrumentation, and other commercial electronic systems where accuracy and efficiency are critical.
Operates within a wide supply voltage range of 2.5V to 20V with low power consumption. Single channel current sensing suitable for accurate measurement in power rails. Compact SOT-23 package facilitates surface mount assembly in tight PCB layouts.
Robust temperature range of -40°C to 85°C supports harsh environment operation. High gain bandwidth product of 2MHz enables fast and precise monitoring. Designed for industrial, automotive, and commercial electronic applications.
Manufactured in China maintaining high quality and durability standards.
Explore our wide selection of semiconductor components in the Current Monitor category at EnvMart for reliable power and signal management solutions across diverse industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a minimum supply voltage of 2.5V and a maximum of 20V.
The supply current consumption is 35μA, making it suitable for power-efficient applications.
The gain bandwidth product is 2MHz, ensuring fast and accurate current sensing.
It has a robust operating temperature range from -40°C to 85°C, suitable for various environments.
The dimensions are 3.1mm in length and 1.3mm in height, allowing for compact PCB layouts.
This model supports a single channel configuration for current sensing.
It is designed for surface mount assembly, making it ideal for high-density electronic circuits.
It is suitable for voltage and current sensing in industrial machinery, automotive electronics, and power supplies.
The ZXCT1022E5TA is manufactured in China.
This current monitor features a 5-pin configuration.
It belongs to the ZXCT1022 series of current monitors.
It provides a voltage output proportional to the voltage drop across a low-value shunt resistor in high-current power rails.
