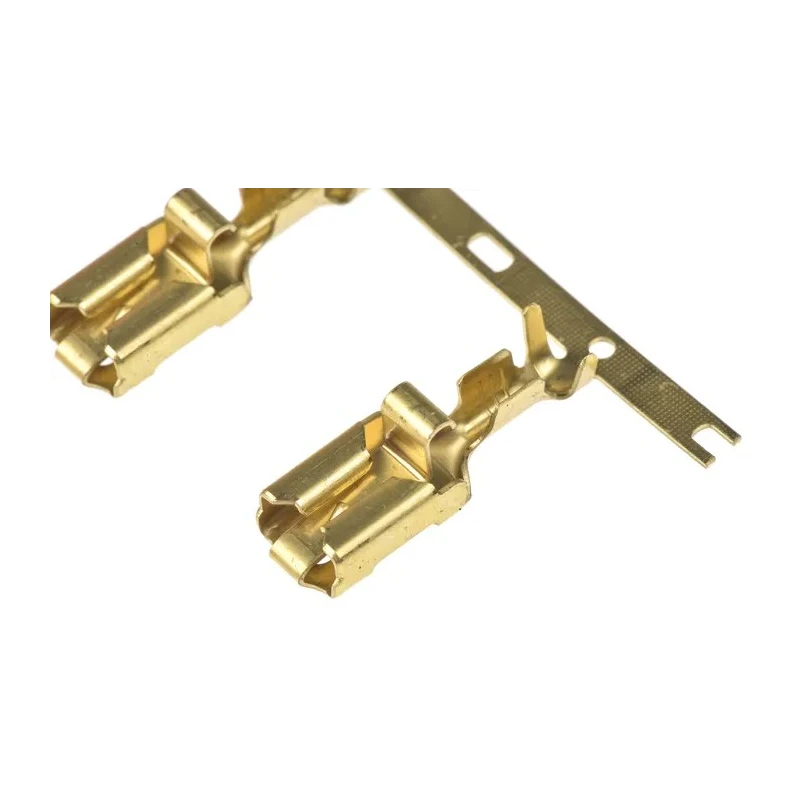

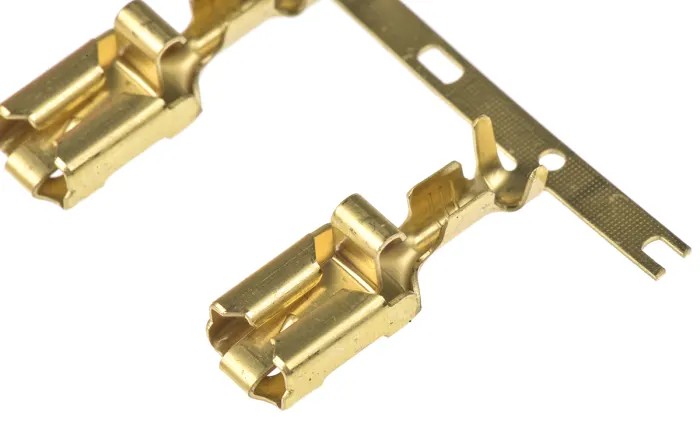

TE Connectivity Positive Lock .250 Mk I Yellow Uninsulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 170233-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| Orientation | Straight |
| Model | 170233-1 |
| Gender | Female |
| Insulation | Uninsulated |
| Overall Length | 22.1mm |
| Contact Material | Brass |
| Series | Positive Lock .250 Mk I |
| Termination Type | Crimp |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2.27mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 14AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
Key Features
- Made with brass contact material plated with tin for enhanced conductivity and corrosion resistance.
- Uninsulated design allowing direct connection with minimal insertion force.
- Suitable for wire sizes ranging from 0.5 mm² (20 AWG) to 2.27 mm² (14 AWG).
- Straight orientation for easy and secure connections in various electronic applications.
- Overall length of 22.1 mm for compatibility with standard .250 series connectors.
- Positive Lock series ensures a mechanical snap for secure mating connection and easy release using integral depressor.
Product Description
TE Connectivity 170233-1 Positive Lock .250 Mk I Yellow Uninsulated Female Spade Connector offers a reliable and secure connection solution for electronic and electrical systems. The crimp termination method ensures a strong mechanical and electrical bond for wire sizes between 20 AWG and 14 AWG, making it suitable for a wide range of industrial and commercial applications.
The connector features a brass contact material with tin plating, providing excellent conductivity and corrosion resistance for prolonged service life. Its uninsulated construction ensures minimal insertion force and easy access when mating with compatible male tabs.
Designed with a straight orientation, this female spade connector measures 22.1 mm in overall length and incorporates the Positive Lock feature for an audible and tactile snap fit onto mating tabs containing holes or dimples. This locking mechanism enhances connection security, reducing accidental disconnections in industrial, manufacturing, and electronic assembly settings.
The yellow color coding supports easy identification and wire gauge recognition according to industry standards. This connector is ideal for use in power distribution, wire terminal assemblies, and control panel wiring where dependable and maintainable connections are critical.
Made from brass contact with tin plating for reliable conductivity. Uninsulated design enables direct crimping and connection. Wide wire gauge compatibility from 20 AWG to 14 AWG. Positive Lock mechanism provides a secure, snap-fit connection.
Straight orientation fits standard .250 series tabs. Overall length of 22.1 mm ensures standard compatibility.
This product is designed to meet demanding electrical and electronic industrial requirements, including manufacturing, power, automation, and maintenance operations. With its robust material construction and precision design, TE Connectivity’s 170233-1 ensures safety and reliability in wiring and connection tasks.
Explore more products in the Spade Connector category and other electronic connector solutions at EnvMart for comprehensive industrial electronics component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 0.5 mm² (20 AWG) to 2.27 mm² (14 AWG).
The overall length of this connector is 22.1 mm, ensuring compatibility with standard .250 series connectors.
The contact material is brass, which is plated with tin to enhance conductivity and corrosion resistance.
It uses a crimp termination method, providing a strong mechanical and electrical bond.
This connector has a straight orientation, allowing for easy and secure connections.
The Positive Lock feature ensures a mechanical snap for a secure mating connection, which can be easily released using an integral depressor.
The tab size is 6.35 x 0.81 mm, which is standard for .250 series applications.
The TE Connectivity 170233-1 is manufactured in India.
This model features yellow color coding for easy identification and wire gauge recognition according to industry standards.
No, this connector is uninsulated, allowing for direct crimping and connection with minimal insertion force.
It is suitable for a wide range of industrial and commercial applications, including power distribution and control panel wiring.
This connector is a female spade connector, designed to mate with compatible male tabs.
