DiodesZetex Inverter Schmitt Trigger Logic IC, 1-Input, 5-Pin SOT-323, 2V to 5.5V Supply, Automotive Grade 74AHC1G14QSE-7

Free Delivery in India | Lowest Global Shipping Charges

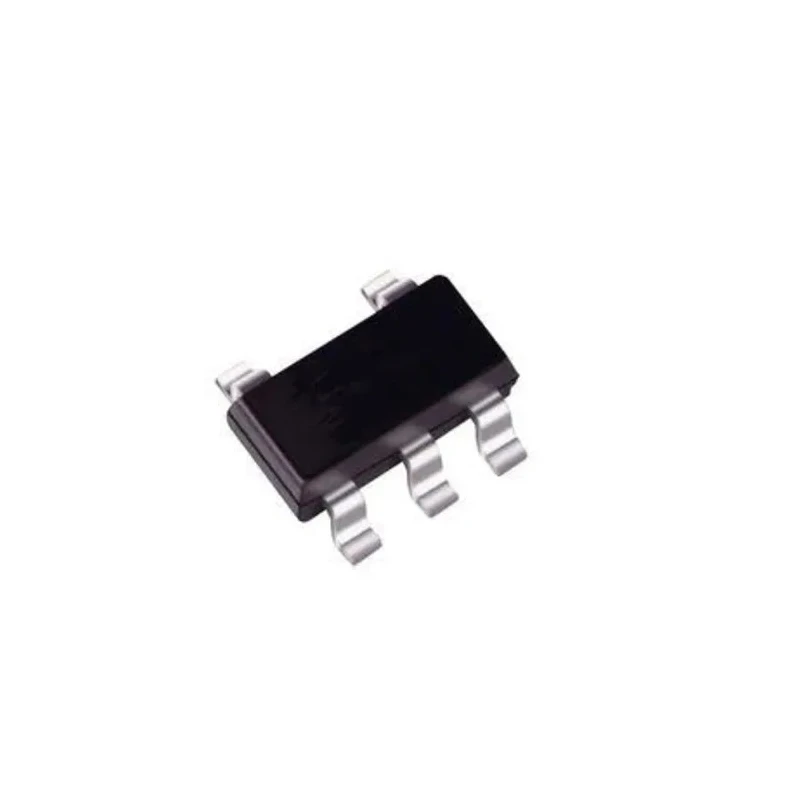

DiodesZetex Inverter Schmitt Trigger Logic IC, 1-Input, 5-Pin SOT-323, 2V to 5.5V Supply, Automotive Grade 74AHC1G14QSE-7

Name: DiodesZetex Inverter Schmitt Trigger Logic IC, 1-Input, 5-Pin SOT-323, 2V to 5.5V Supply, Automotive Grade 74AHC1G14QSE-7
Brand: DiodesZetex
SKU: 291619
Price: 0.1 USD
Availability: InStock



Category Integrated Circuits Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1mm
Length	2.2mm
Model	74AHC1G14QSE-7
Mount Type	Surface
Output type	Push Pull
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Package Type	SOT-323
Minimum Operating Temperature	-40°C
Pin Count	5
Number of Elements	1
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Logic Family	AHC
Logic Function	Inverter Schmitt Trigger
Minimum Supply Voltage	2V
Maximum High Level Output Current	-8mA
Maximum Propagation Delay Time @ CL	13.5ns
Maximum Low Level Output Current	8mA
Number of Inputs per Gate	1

Key Features

Designed for surface mount applications with a 5-pin SOT-323 package.
Features a single inverter Schmitt trigger gate with one input per gate.
Operates reliably from -40°C up to 125°C for automotive applications.
Maximum propagation delay time is 13.5 nanoseconds under typical load conditions.
Push-pull output type ensures fast switching and drive capability.
Maximum supply voltage is 5.5V and minimum supply voltage is 2V.
Adheres to automotive standard AEC-Q100 for quality and reliability.
Logic family is Advanced High-Speed CMOS (AHC) technology.

Product Description

DiodesZetex 74AHC1G14QSE-7 inverter Schmitt trigger logic IC is designed for industrial, automotive, and electronic systems requiring reliable logic level conversion and switching functions within a compact and robust surface mount package. It features a single inverter Schmitt-trigger gate with a standard 5-pin SOT-323 form factor, suitable for space-constrained PCB layouts.

Operating over a supply voltage of 2V to 5.5V, it guarantees stable performance across a wide ambient temperature range from -40°C to 125°C, meeting Grade 1 automotive compliance and AEC-Q100 standards. The device uses Advanced High-Speed CMOS (AHC) technology, ensuring balanced propagation delays, balanced drive capability, and inputs that are not limited by Vcc.

The logic IC has a maximum propagation delay time of 13.5 nanoseconds at typical load capacitance, allowing fast switching for timing-sensitive digital circuits. The push-pull output stage delivers both sourcing and sinking current capabilities with maximum high-level output current of -8mA and maximum low-level output current of 8mA.

This component is ideal for automotive electronic control units (ECUs), industrial automation, consumer electronics, and other embedded systems where precise logic gate behavior and robustness are critical. The compact SOT-323 package supports surface mount technology for high-volume manufacturing.

Designed for surface mount applications with a 5-pin SOT-323 package. Features a single inverter Schmitt trigger gate with one input per gate. Operates reliably from -40°C up to 125°C for automotive applications. Maximum propagation delay time is 13.5 nanoseconds under typical load conditions.

Push-pull output type ensures fast switching and drive capability. Robust construction complies with AEC-Q100 automotive standards. Operates on a supply range from 2V to 5.5V. Part of Advanced High-Speed CMOS (AHC) logic family.

Explore a broad range of logic gate ICs and semiconductor products in the Electronics & Electricals category at EnvMart for your design and production needs.

Explore more products in our Integrated Circuits category.
