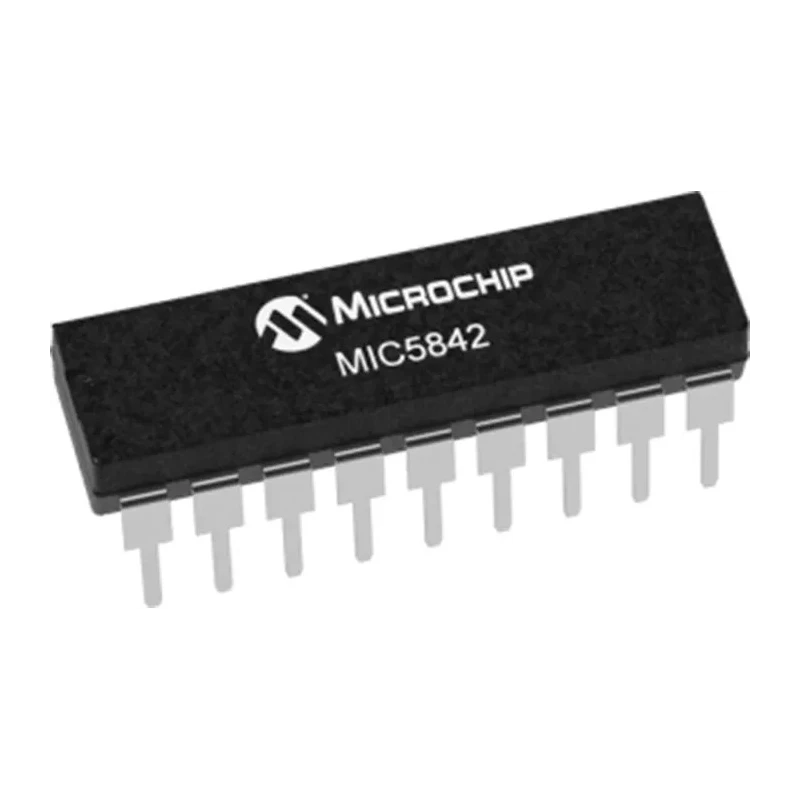

Microchip 8-Bit Transparent Latch 18-Pin DIP MIC5842YN

Microchip MIC5842YN is an 8-bit transparent latch integrated circuit housed in an 18-pin Dual Inline Package (DIP). Utilizing advanced BiCMOS technology, this latch is engineered for various peripheral power driver applications where reliable data latching and output drive strength are essential.

The device features an 8-bit CMOS shift register and control circuitry combined with eight CMOS data latches and bipolar current-sink Darlington outputs. This design ensures high voltage sustaining capability with a minimum output breakdown voltage rating of 80V, enabling robust operation in demanding industrial environments.

With a data input rate minimum of 3.3 MHz, the MIC5842YN supports fast and efficient data handling compatible with CMOS, PMOS, NMOS, and TTL logic interfaces. Internal pull-up and pull-down resistors simplify interface circuitry and improve signal integrity.

The latch operates from a single or split supply with a minimum voltage tolerance down to -0.3V and maximum supply voltage reaching 15.3V. Designed for through-hole mounting, it measures 23.27 mm in length and 3.3 mm in height, making it suitable for a wide range of PCB layouts.

Operating within a temperature range of -40°C to 85°C, the MIC5842YN is reliable for industrial and commercial applications including automation control, power management, and signal processing circuits. Protective diodes guard against output transients, enhancing durability in complex electronic systems.

Uses BiCMOS technology with CMOS shift register and Darlington output drivers. High voltage output breakdown of 80V minimal rating. 3.3 MHz minimum data input rate supports fast data operations. Compatible with various logic families including CMOS and TTL.

Internal pull-up/down resistors improve interface stability. Single or split supply operation range from -0.3V to 15.3V. Operating temperature -40°C to 85°C for industrial applications. Package type: 18-Pin DIP for through-hole mounting.

Compact size with length 23.27 mm and height 3.3 mm.

This product is ideal for industrial, laboratory, and power electronics applications requiring reliable transparent latching functionality. Explore more Microchip semiconductor components and Integrated Circuits at EnvMart.
