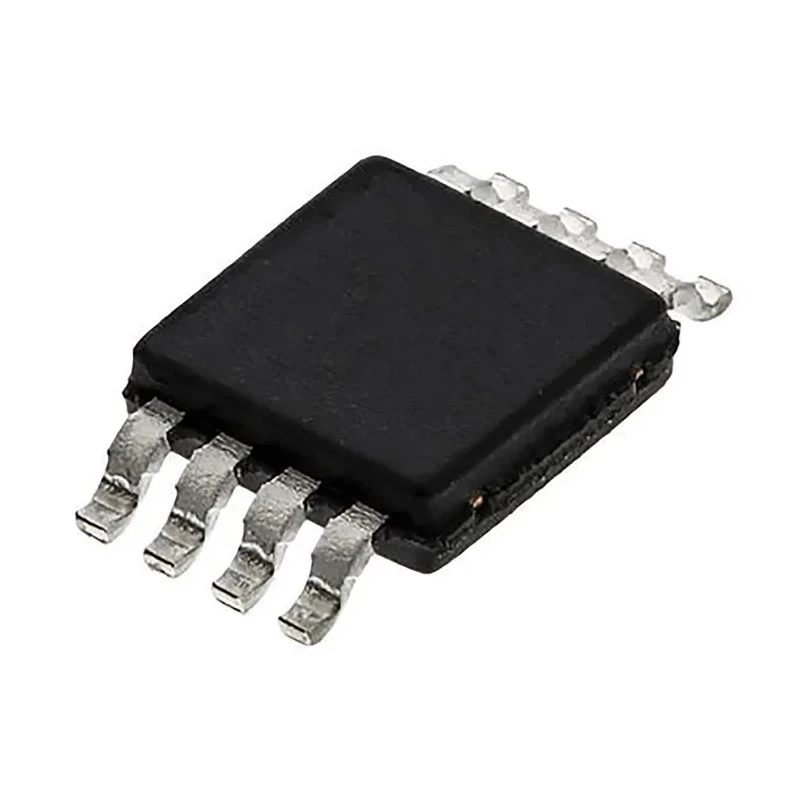

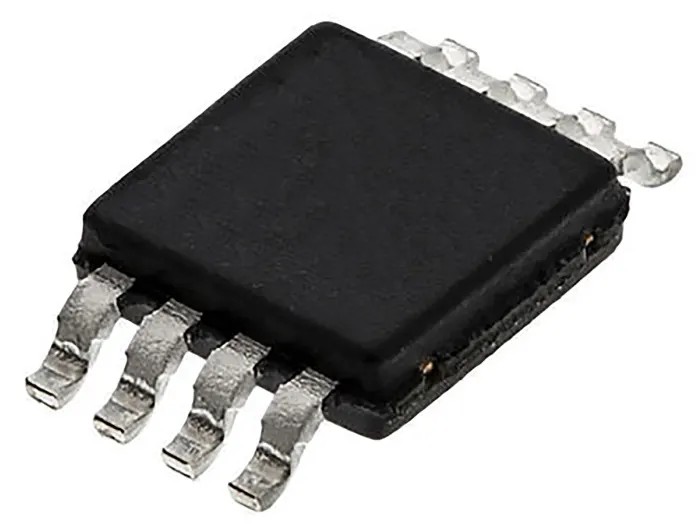

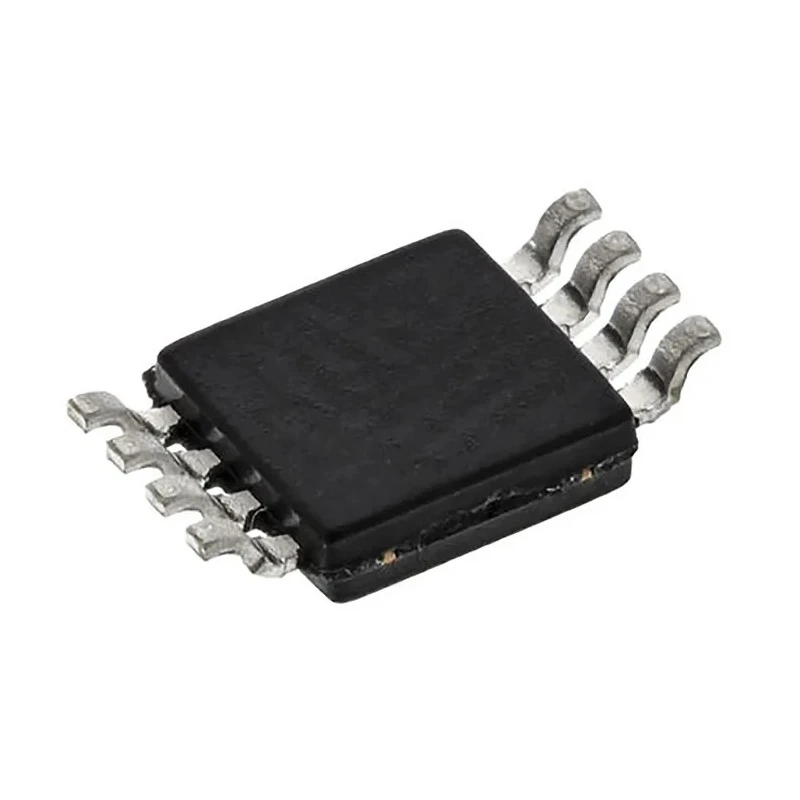

DiodesZetex Dual Channel High Side Power Switch IC, 8-Pin MSOP, 2.7V to 5.5V Supply AP2156MPG-13
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 0.95mm |
| Length | 3.1mm |
| Model | AP2156MPG-13 |
| Width | 3.1mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | AP2156 |
| Maximum Operating Temperature | 85°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Operating Current | 1A |
| Number of outputs | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Switch On Resistance RdsOn | 160mΩ |
Key Features
- This IC features a low switch on resistance of 160mΩ providing efficient conduction.
- Operates with a maximum current rating of 1A, suitable for moderate load applications.
- Compact surface mount MSOP package with 8 pins supports space-saving PCB designs.
- Operational temperature range from -40°C to 85°C ensures reliability in industrial environments.
- Provides dual output channels with a single input for versatile switching use cases.
- Designed for high side switching topology for protection and control of power lines.
- Automotive standard not applied, but engineered for robust performance in electronic circuits.
Product Description
DiodesZetex AP2156MPG-13 is a dual channel high side power switch IC designed for efficient power management in electronic systems. This component comes in a compact 8-pin MSOP surface mount package, ideal for high-density PCB layouts. It operates over a wide supply voltage range from 2.7V to 5.5V, making it suitable for various low voltage applications.
The device offers a low switch on resistance of 160mΩ, which helps minimize power loss and thermal buildup during operation. With a maximum operating current of 1A, the AP2156MPG-13 supports applications requiring moderate power switching capabilities.
This high side switch includes dual outputs controlled by a single input, simplifying design complexity while providing reliable high side load switching. It is engineered to perform across a temperature range of -40°C to 85°C, ensuring dependable performance in industrial, electronic control, and automotive-adjacent environments.
The dimensions of the IC are 3.1 mm by 3.1 mm in length and width, with a height of 0.95 mm, supporting small form factor device requirements. Although it does not conform to automotive standards, it is optimized for power switching tasks in general electronic components and power management use cases.
This power switch IC is suitable for industrial automation, consumer electronics, telecommunications equipment, and any application demanding effective line power switching and load protection using a high side switch topology.
Efficient low resistance switching reduces conduction losses. Compact MSOP 8-pin package for space constrained designs. Rated for 1A maximum operating current supporting versatile load requirements. Wide supply voltage range from 2.7V to 5.5V enhances adaptability.
Industrial operating temperature range provides robust reliability. Dual channel switched outputs controlled by a single input simplifies circuit design. High side topology protects power lines and connected loads. Applicable in electronics, industrial automation, and telecommunications sectors.
Explore the complete range of Power Switch ICs and semiconductor components available to optimize your electronic design with advanced power management capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating current for this model is 1A, making it suitable for moderate load applications.
It operates over a supply voltage range from 2.7V to 5.5V, enhancing its adaptability for various low voltage applications.
The switch on resistance (RdsOn) is 160mΩ, which helps minimize power loss during operation.
The dimensions of the AP2156MPG-13 are 3.1 mm in length and width, with a height of 0.95 mm.
It has an operational temperature range from -40°C to 85°C, ensuring reliability in various environments.
This model provides dual outputs controlled by a single input, simplifying design complexity.
It comes in a compact 8-pin MSOP surface mount package, suitable for high-density PCB layouts.
Yes, it is designed for high side switching topology, which is used for the protection and control of power lines.
It is suitable for applications in industrial automation, consumer electronics, and telecommunications equipment.
This power switch IC has a pin count of 8.
The country of origin for the AP2156MPG-13 is India.
It belongs to the AP2156 series of power switch ICs.
