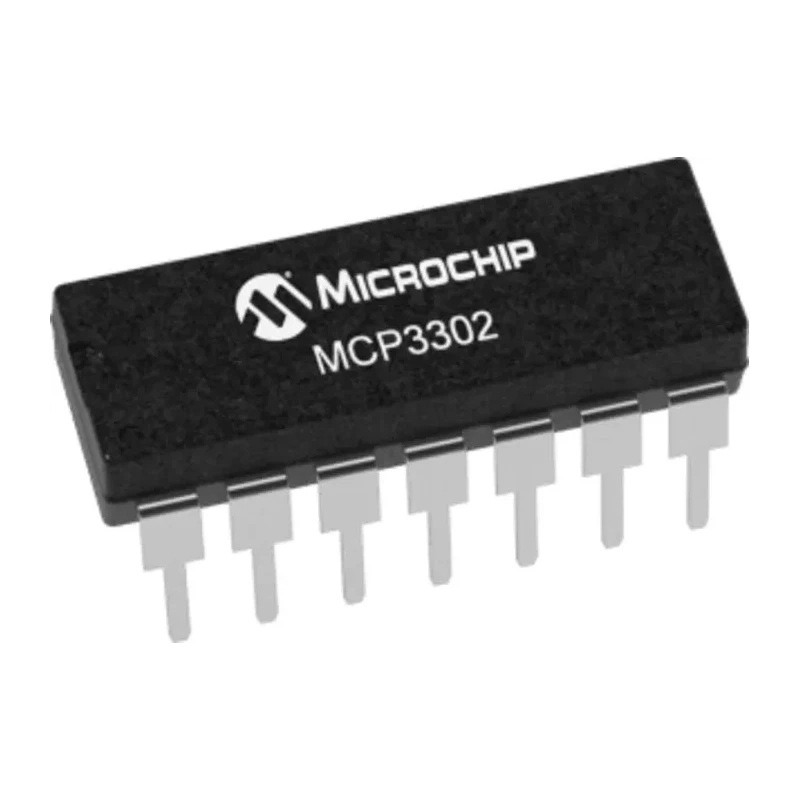

Microchip SAR Analogue to Digital Converter MCP3302-CI/P 2-Channel 12-bit + Sign 100ksps PDIP 14-Pin
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12-bit + Sign |
| Brand | Microchip |
| Height | 5.89mm |
| Length | 19.69mm |
| Model | MCP3302-CI/P |
| Mount Type | Through Hole |
| Sampling rate | 100ksps |
| Series | MCP3302/04 |
| Input Type | Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 2 |
Key Features
- Successive Approximation Register (SAR) architecture for high-performance conversion.
- Provides 2 independent ADC channels for versatile analogue input measurement.
- Delivers 12-bit resolution plus sign for accurate signal processing.
- Supports a sampling rate of up to 100ksps for fast data acquisition.
- Operates in a through-hole PDIP package with 14 pins for easy prototyping and integration.
- Compatible with SPI interface for seamless communication with microcontrollers.
- Wide operating temperature range from -40°C to 125°C for robust industrial and laboratory use.
- Automotive standard AEC-Q100 approved, suitable for demanding electronic environments.
Product Description
The Microchip MCP3302-CI/P is a high-precision Analogue to Digital Converter (ADC) designed with Successive Approximation Register (SAR) architecture. It provides two independent channels, each capable of handling voltage inputs with 12-bit resolution plus an additional sign bit, all in a compact 14-pin PDIP package. This converter is engineered for applications demanding precise analogue signal processing and rapid acquisition rates up to 100ksps.
The device is well suited for integration into industrial automation, laboratory instruments, automotive electronics, and embedded systems where accurate, real-time analogue measurement is required. Its SPI interface ensures smooth communication and easy integration with a broad array of microcontrollers and digital processors, making it an ideal choice for developers and engineers seeking reliable data conversion solutions.
The MCP3302-CI/P exhibits robustness through its wide operating temperature range (-40°C to 125°C) and compliance with automotive industry standards (AEC-Q100, RoHS). The through-hole mounting style (PDIP) makes it convenient for rapid prototyping and versatile circuit designs. With minimum supply voltage requirements of 5V and maximum of 5.5V, it fits well into standard electronic power architectures. Its size, with a length of 19.69mm and height of 5.89mm, allows straightforward inclusion in PCB layouts.
This converter is particularly valued in precise measurement tasks such as industrial sensor monitoring, laboratory test equipment, automotive sensing modules, and embedded system signal acquisition, enabling reliable conversion from voltage analogue inputs to digital data.
Explore more Microchip converters and other semiconductor solutions in the Analogue to Digital Converter category on EnvMart. For engineers and system integrators, MCP3302-CI/P serves as a benchmark for performance, reliability, and ease of use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a resolution of 12-bit plus a sign bit, allowing for accurate signal processing.
The MCP3302-CI/P supports a maximum sampling rate of 100ksps, enabling fast data acquisition.
This model accepts voltage inputs, making it suitable for various analogue signal applications.
It operates within a wide temperature range from -40°C to 125°C, suitable for industrial and laboratory environments.
The MCP3302-CI/P comes in a PDIP package type with 14 pins, facilitating easy prototyping and integration.
The minimum supply voltage is 5V, and the maximum is 5.5V, making it compatible with standard electronic power architectures.
Yes, it is AEC-Q100 approved, ensuring suitability for demanding electronic environments in automotive applications.
It has a height of 5.89mm and a length of 19.69mm, allowing for straightforward inclusion in PCB layouts.
The MCP3302-CI/P complies with RoHS standards, ensuring it meets environmental regulations.
