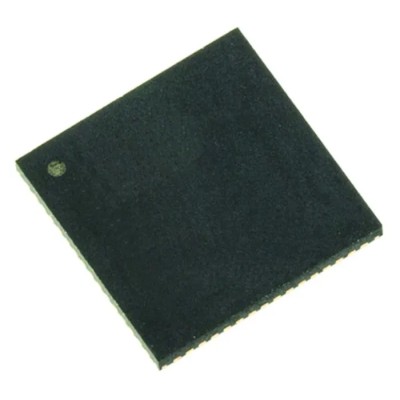

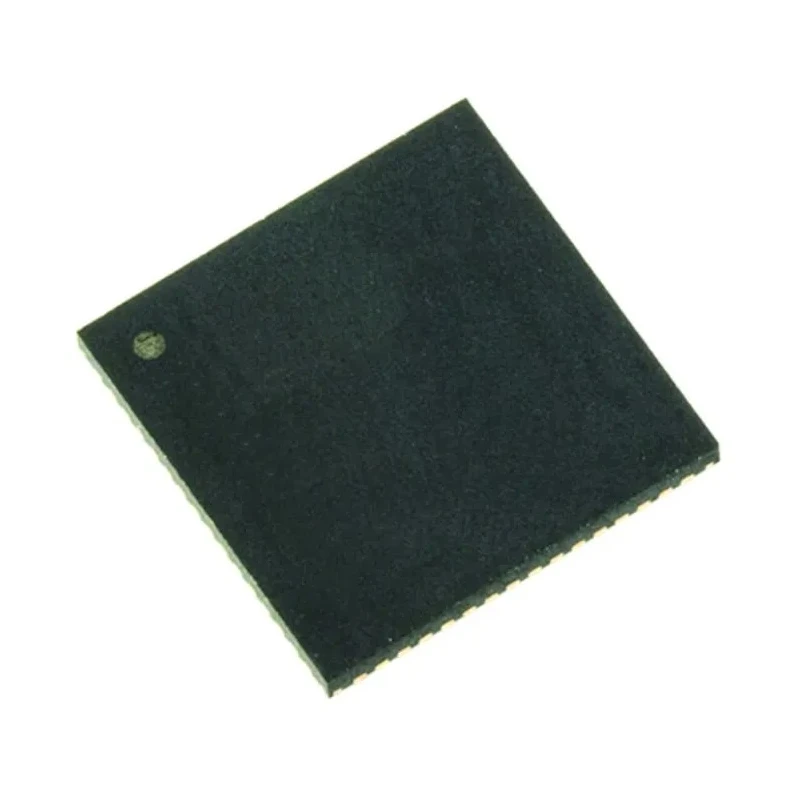

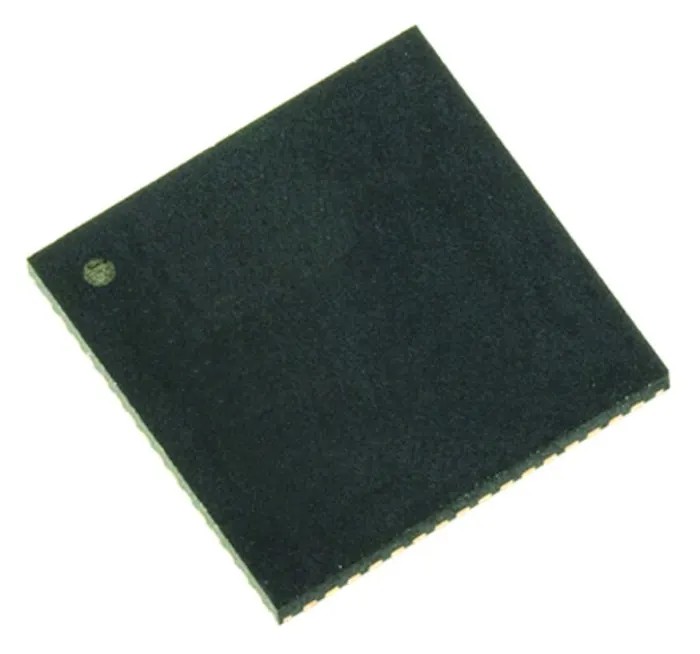

Skyworks Solutions Inc Frequency Synthesiser 5 Output 64-Pin QFN 3.14-3.47V Si5341A-D-GM

Skyworks Solutions Inc Si5341A-D-GM frequency synthesiser is a high-performance clock generator IC featuring 5 independent outputs in a 64-Pin QFN surface-mount package measuring 9mm by 9mm and a height of 0.85mm. It operates on a supply voltage range from 3.14 to 3.47 volts and supports CMOS output logic levels, enabling wide compatibility with digital systems.

This IC delivers a maximum output frequency of 712.5 MHz and accepts input frequencies up to 750 MHz, including differential clock inputs, external crystals in the 25 MHz and 48-54 MHz range, and LVCMOS clocks up to 250 MHz. Its wide input frequency support and output configurability make it ideal for complex clock distribution in industrial, laboratory, and communication equipment.

The Si5341A-D-GM model features ultra-low jitter of less than 100 fs RMS typical, providing high stability and accuracy critical in timing-sensitive applications. It supports programmable output formats compatible with LVDS, LVPECL, CML, LVCMOS, and HCSL, enabling replacement of multiple clock ICs or oscillators by consolidating clock generation functionality into a single chip.

Operating over a broad temperature range from -40°C to 85°C, this frequency synthesiser is robust enough for demanding environments including industrial manufacturing and communication hardware. The package’s small footprint and surface mount design allow for efficient PCB layout in compact devices.

Manufactured in Taiwan, Province Of China, the Si5341A-D-GM ensures compliance with quality and reliability standards, though it does not carry specific automotive certifications. This device is suitable for applications in electronic systems requiring precise clock generation and distribution such as network equipment, test instrumentation, and embedded systems.

Supports CMOS output logic level for compatibility. Maximum output frequency up to 712.5 MHz for high-speed applications. Surface mount with a compact 9mm x 9mm QFN package. Operates across temperature range of -40°C to 85°C for industrial reliability.

Designed to synthesize a wide range of integer and fractional related frequencies. Minimum supply voltage of 3.14 V and maximum of 3.47 V for stable operation. Input frequency support up to 750 MHz covering differential and LVCMOS clocks.

Ultra-low jitter performance ensuring precision timing. Suitable for replacing multiple clock ICs and oscillators in clock tree applications. Manufactured in Taiwan, Province Of China, ensuring quality standards. Explore more high-quality semiconductor Clock Synthesizers from Skyworks Solutions Inc at EnvMart for your industrial and electronic development needs.
