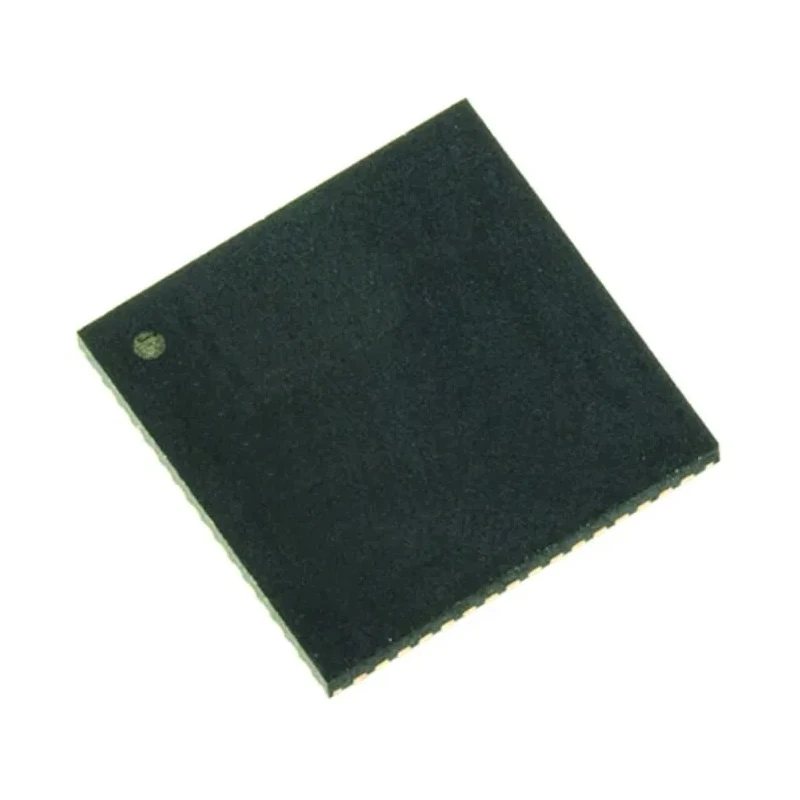

Skyworks Solutions Inc Frequency Synthesiser 5 Output 64-Pin QFN 3.14-3.47V Si5341A-D-GM

Free Delivery in India | Lowest Global Shipping Charges

Skyworks Solutions Inc Frequency Synthesiser 5 Output 64-Pin QFN 3.14-3.47V Si5341A-D-GM

Name: Skyworks Solutions Inc Frequency Synthesiser 5 Output 64-Pin QFN 3.14-3.47V Si5341A-D-GM
Brand: Skyworks Solutions Inc
SKU: 384715
Price: 20.22 USD
Availability: InStock



Category Clock Synthesizers Brand Skyworks Solutions Inc Condition New

Specifications

Country of Origin	Taiwan
Brand	Skyworks Solutions Inc
Height	0.85mm
Length	9mm
Model	Si5341A-D-GM
Width	9mm
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	QFN
Minimum Operating Temperature	-40°C
Maximum input frequency	750MHz
Number of outputs	5
Maximum Output Frequency	712.5MHz
Pin Count	64
Maximum Supply Voltage	3.47V
Minimum Supply Voltage	3.14V
Output Logic Level	CMOS
- differential	100 Hz to 712.5 MHz
Si5340	4 input, 4 output in a 44-Pin QFN package (7x7mm)
Si5341	4 input, 10 output in a 64-Pin QFN package (9x9mm)
- External crystal	25, 48-54 MHz
- Differential clock	10 to 750 MHz
- LVCMOS clock	10 to 250 MHz
- LVCMOS	100 Hz to 250 MHz

Key Features

Operates with a supply voltage range of 3.14 to 3.47 volts.
Supports up to 10 independent output clocks with ultra-low jitter performance.
Maximum output frequency of 712.5 MHz for differential outputs.
Input logic level and output logic level are CMOS compatible.
Designed for surface mount applications with a compact 9 mm x 9 mm footprint.
Operating temperature range from -40°C to 85°C ensures robust industrial performance.
Package type is Quad Flat No-lead (QFN) with 64 pins for reliable connectivity.
Supports various output formats including LVDS, LVPECL, CML, LVCMOS, and HCSL.

Product Description

Skyworks Solutions Inc Si5341A-D-GM frequency synthesiser is a precision clock generation IC designed for industrial and commercial electronic applications. Featuring five configurable outputs, this device supports a wide range of frequencies with exceptional low jitter performance, making it suitable for demanding timing and synchronization tasks.

Supplied in a robust 64-Pin QFN package measuring 9 mm by 9 mm by 0.85 mm, the synthesiser supports surface mount assembly for space-efficient PCB layouts. Operating at supply voltages from 3.14 V up to 3.47 V, it offers CMOS logic level compatibility for both input and output signals.

This clock synthesiser is capable of handling input frequencies up to 750 MHz differentially and output frequencies up to 712.5 MHz. Its flexible output format compatibility includes LVDS, LVPECL, CML, LVCMOS, and HCSL, enabling integration with various system requirements. The device maintains performance over a wide industrial temperature range from -40°C to 85°C.

Ideal for use in industrial, communication, computing, and manufacturing equipment, the Si5341A-D-GM allows the replacement of multiple clock ICs and oscillators by synthesizing multiple frequencies on a single chip.

Operates with low jitter to enhance signal integrity in timing applications. Configurable outputs support multiple protocols and voltage levels. Compact QFN package supports modern surface mount technology. High input frequency range maximizes application flexibility.

Wide operating temperature range suits harsh industrial environments. Supports complex clock trees and synchronization for system-wide timing.

Skyworks Solutions Inc continues to deliver innovative semiconductor products, and the Si5341A-D-GM exemplifies their commitment to advanced frequency and timing solutions. For more products and detailed technical specifications, explore EnvMart's extensive clock synthesizer category.
