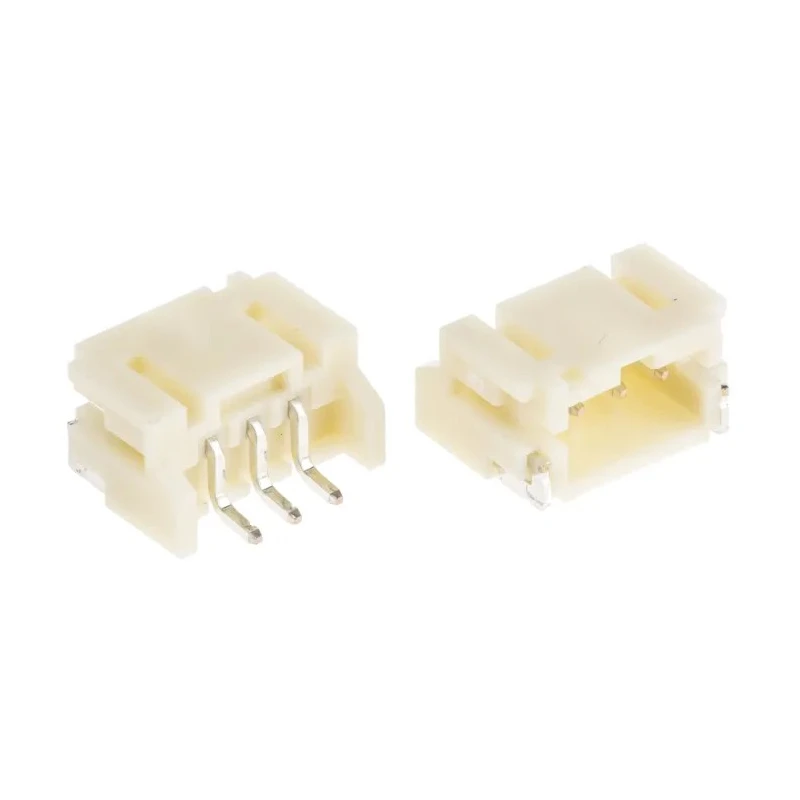

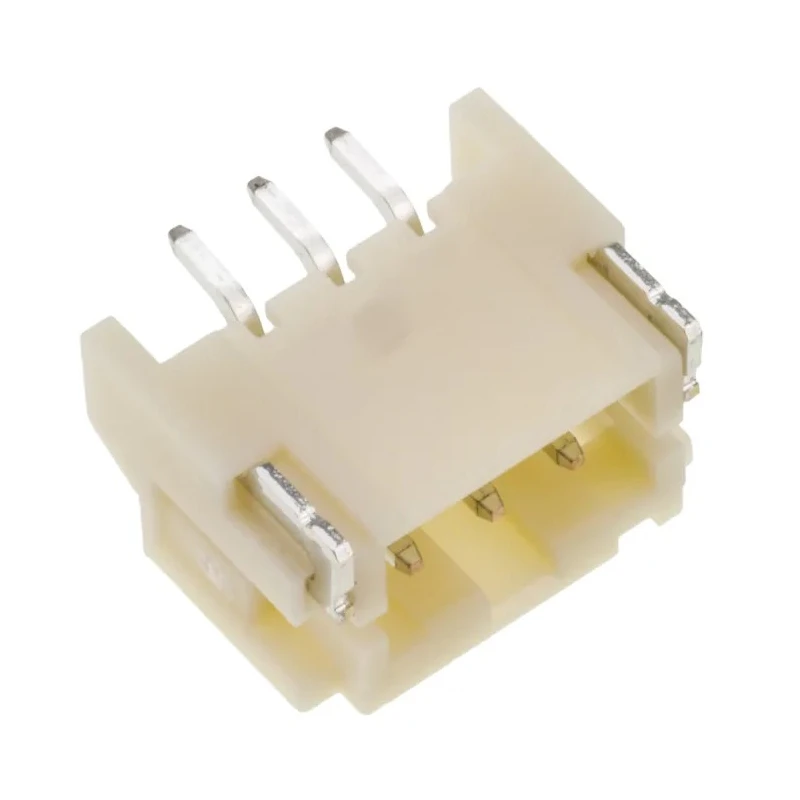

JST PH Series Right Angle Surface PCB Header, 3 Contact(s), 2 mm Pitch, 1 Row, Shrouded S3B-PH-SM4-TB(LF)(SN)

JST S3B-PH-SM4-TB(LF)(SN) PH Series Right Angle Surface PCB Header is engineered for high-density wire-to-board connections in electronic assemblies. The 3-contact, single-row header with 2 mm pitch is designed for surface mount applications requiring reliable and compact connectors. Its fully shrouded design ensures protection against accidental disconnections while maintaining low insertion force for easy assembly.

This connector supports a current rating of 2A and voltage rating of 100 V, suitable for a range of industrial and commercial electronics. The contact material is high-quality copper alloy with tin plating to offer excellent electrical conductivity and corrosion resistance.

Operating temperature spans from -25°C to 85°C, making it suitable for various environmental conditions in manufacturing, automation, and power electronics. The right angle orientation allows flexible PCB layout design, optimizing space utilization.

Termination is via soldering, compatible with standard PCB assembly processes. Compatible wire gauges span from 32 AWG to 24 AWG, enhancing its versatility in wiring options. Applications include industrial control systems, laboratory equipment, electronic devices, and more where secure wire-to-board connections are critical.

The connector features 3 contacts arranged in a single row with a 2 mm pitch. It is fully shrouded to enhance protection and reliability. Rated for a current of 2 Amps and operating voltage of 100 V. Supports wide temperature range from -25°C to 85°C for varied industrial applications.

Made with copper alloy contact material plated with tin for excellent conductivity. Designed for surface mount (SMT) with solder termination type. Orientation is right angle to accommodate specific PCB layouts. Wire size range supported: 32 AWG to 24 AWG ensuring versatile usage.

Ideal for use in electronic, industrial, and manufacturing equipment requiring secure wire-to-board connections.

This product belongs to the PH series of JST connectors and is part of the PCB Headers category at EnvMart. It provides high reliability essential for industrial-grade electronic assemblies and manufacturing.

Explore more PCB connectors and headers within EnvMart’s extensive Electronics & Electricals catalog to find compatible components for your projects.
