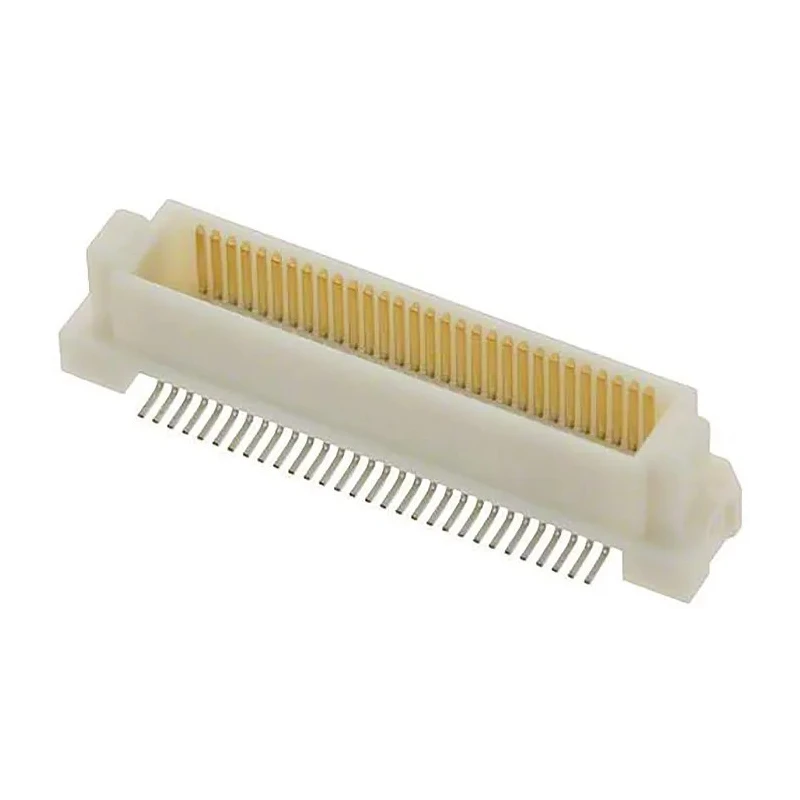

Hirose FunctionMAX FX8C Series Straight Surface PCB Header, 60 Contacts, 0.6 mm Pitch, 2 Row, Shrouded FX8C
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 400mA |
| Model | FX8C |
| Mount Type | Surface |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | FunctionMAX FX8C |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.6mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 688-3476Brand: HiroseManufacturers Part No.: FX8C-60P-SV2(91) |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- High-speed transmission capability of up to 3.125 Gbit/s.
- Built-in mating guide ribs provide +/- 0.6 mm self-alignment tolerance.
- Surface mount type board-to-board connector system.
- Phosphor bronze contacts with gold plating ensure reliable conductivity.
- Operates in temperature range from -55°C to 85°C.
- Spring deflection design contacts increase reliability.
- Wide stacking height range from 5 mm to 16 mm.
- Suitable for industrial, medical, broadcast, and POS terminal applications.
Product Description
Hirose FX8C Series Straight Surface PCB Header FX8C is a high-performance 60-contact board-to-board connector designed with a 0.6 mm pitch and arranged in 2 rows. This shrouded PCB header is constructed using polyphenylene sulphide housing for durability and phosphor bronze contact material with gold plating for excellent conductivity and corrosion resistance.
The FunctionMAX FX8C connectors support high-speed data transmission up to 3.125 Gbit/s, making them highly suitable for industrial, medical, broadcast, and commercial electronic applications requiring reliable signal integrity. The built-in mating guide ribs provide a +/- 0.6 mm self-alignment tolerance to simplify connector mating and enhance design flexibility.
These connectors feature surface mount technology (SMT) for easy PCB assembly, along with guide posts on the bottom for precise alignment and prevention of misinsertion. The contact spring deflection design improves electrical continuity and reliability over extended use.
The header's temperature range spans from a minimum operating temperature of -55°C up to a maximum of 85°C, catering to diverse environmental conditions. This shrouded connector ensures protection and durability, complying with electronic component standards, though it does not possess specific certifications.
High-speed transmission capability of up to 3.125 Gbit/s. Self-alignment tolerance of +/- 0.6 mm enabled by built-in guide ribs. Surface mount type board-to-board connector system. Phosphor bronze contacts with gold plating ensure reliable conductivity.
Wide stacking height range from 5 mm to 16 mm. Temperature operational range: -55°C to 85°C. Spring deflection contact design for enhanced electrical reliability. Ideal for industrial, medical, broadcast, and POS terminal applications.
Hirose's FunctionMAX range is engineered to meet advancing technology demands with high-performance board-to-board connectors offering excellent noise resistance and superior mechanical reliability. This FX8C Series model provides robust connection solutions for modern electronic device designs.
Explore the full range of PCB Headers and connectors in EnvMart’s electronics components category to find compatible parts and related items for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose FX8C Series PCB header supports high-speed data transmission capabilities of up to 3.125 Gbit/s.
This model features a pitch size of 0.6 mm.
The operating temperature range for this connector spans from -55°C to 85°C.
The FX8C PCB header is designed with 60 contacts arranged in 2 rows.
It is constructed with polyphenylene sulphide housing and phosphor bronze contacts that are gold plated for conductivity.
This model utilizes surface mount technology (SMT) for easy PCB assembly.
The current rating for this connector is 400 mA.
Yes, it includes built-in mating guide ribs that provide a +/- 0.6 mm self-alignment tolerance.
The connector system type for this model is board-to-board.
The orientation of this PCB header is straight.
The voltage rating for this connector is 100V.
This connector is suitable for industrial, medical, broadcast, and POS terminal applications.
