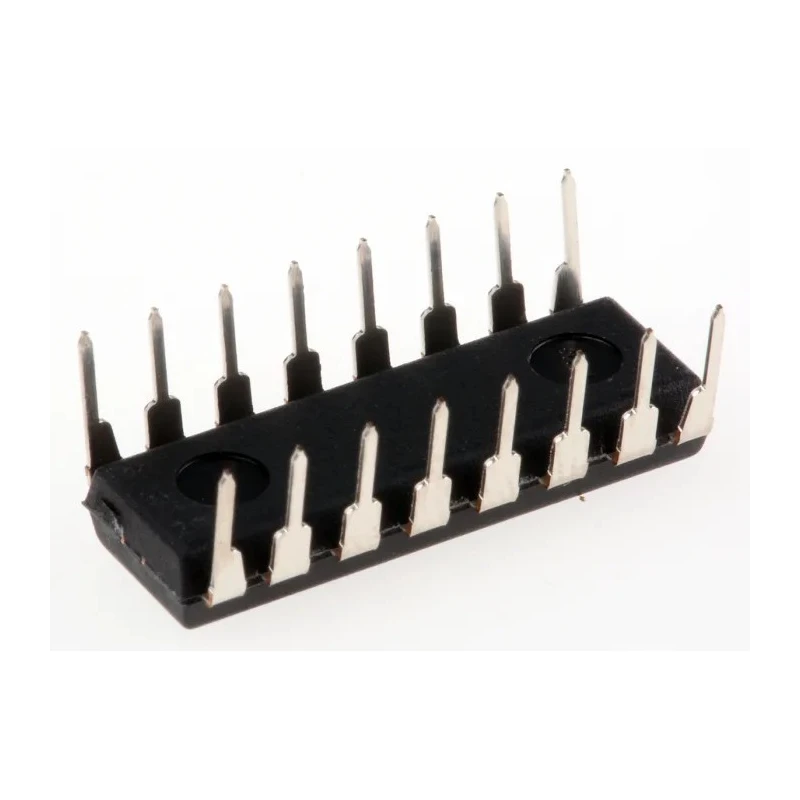

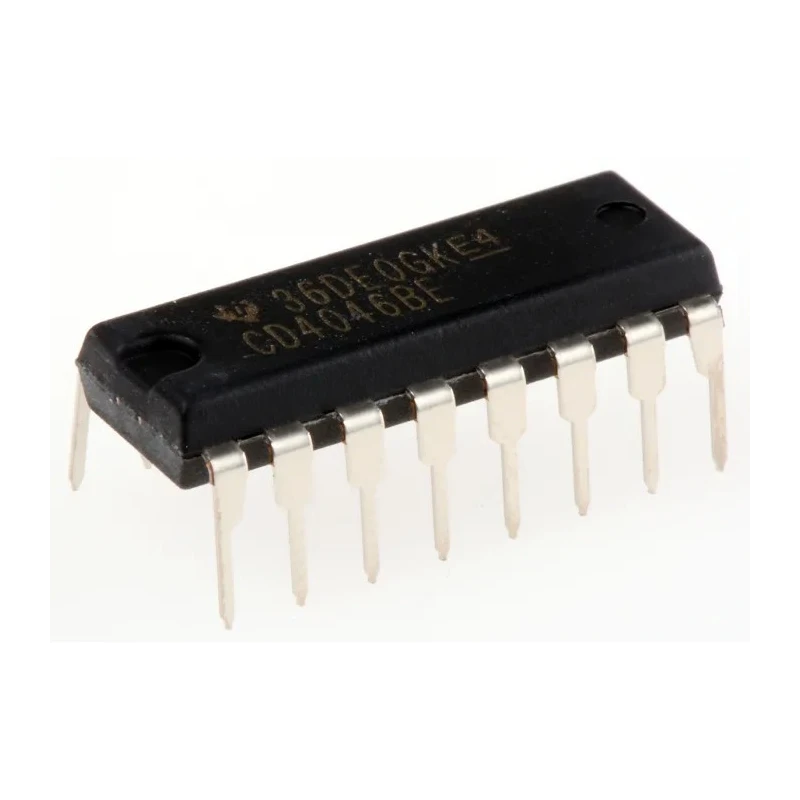

Texas Instruments Clock Synthesiser 1 Output 16-Pin PDIP 3-18V Operating Voltage CD4046BE

Texas Instruments CD4046BE Clock Synthesiser is a complex function integrated circuit from the renowned 4000 Series CMOS logic family. This 16-pin PDIP device operates at a wide supply voltage range of 3 to 18 volts, making it versatile for multiple clock, timing, and frequency synthesis applications in electronics and semiconductor manufacturing.

The device integrates one output with CMOS logic levels, suitable for through-hole mounting in circuit boards with standard pin spacing. It is robust, supporting an extensive operating temperature range of -55°C to 125°C, which ensures functionality in industrial, commercial, and laboratory environments.

Physical package dimensions measure 19.3mm length, 6.35mm width, and 4.57mm height, facilitating compact and reliable device integration. Compliance with the EN 61340-5-1 standard certifies it for electrostatic discharge protection, essential for maintaining reliability in handling and industrial processes.

This clock synthesiser is widely used in timing circuits, phase-locked loops, and frequency synthesis modules found in instrumentation, communication, and automated equipment systems. Its single output and stable operation make it an indispensable component for electronics manufacturing and testing.

This clock synthesiser features a 16-pin PDIP package for through-hole mount applications. Wide operating temperature range from -55°C to 125°C ensures reliable performance in harsh environments. Operates across a wide voltage range from 3V to 18V.

Complies with electrostatic discharge standard EN 61340-5-1. Compact package size improves PCB design flexibility. Part of the 4000 Series CMOS logic family offering complex function ICs. One output channel ideal for clock, timing, and frequency synthesis applications.

Explore EnvMart’s extensive catalog of semiconductor components and Clock Synthesizers for reliable industrial-grade electronic components designed for precision and durability.
