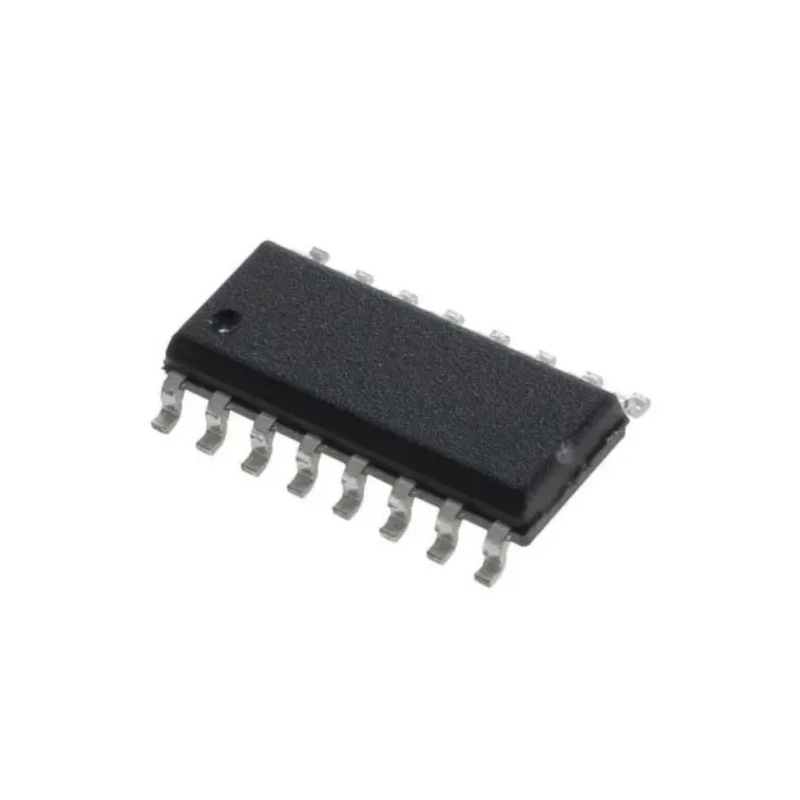

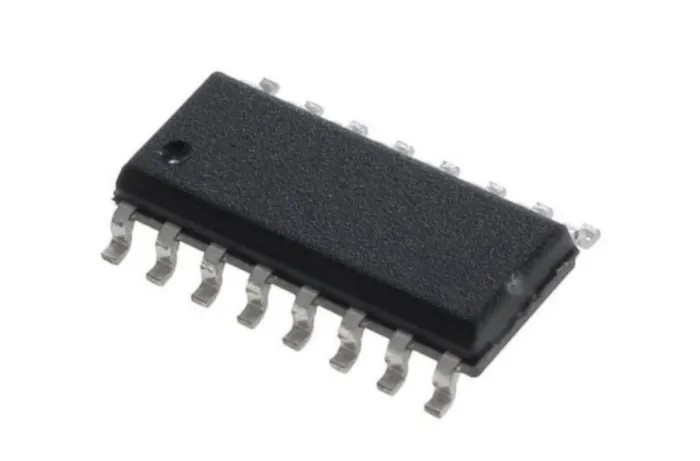

Vishay Analogue Switch 4 CMOS Quad SPST Surface Mount 16-Pin SOIC DG441DY-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG441DY-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG441 |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, REACH |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 44V |
| Logic Family | CMOS |
| Maximum On State Resistance | 100Ω |
Key Features
- This analogue switch features CMOS logic family technology.
- It supports 4 elements per chip with quad SPST configuration.
- The device operates with a maximum supply voltage of 44V and maximum on state resistance of 100 ohms.
- The operating temperature ranges from -40°C to 85°C, suitable for industrial environments.
- Surface mount type with a compact 16-pin SOIC package ensures easy PCB integration.
- Complies with RoHS and REACH standards ensuring environmental safety.
- Ideal for applications in test equipment, computer peripherals, and portable instruments.
Product Description
Vishay DG441DY-E3 analogue switch is a high-accuracy, low-power consumption CMOS quad SPST switch encapsulated in a 16-pin SOIC surface mount package. The device supports a maximum supply voltage of 44V and provides a maximum on state resistance of 100 ohms, making it suitable for precise analogue switching applications in various electronic systems.
The switch operates reliably across a wide temperature range from -40°C to 85°C, suitable for industrial, laboratory, and commercial uses. Its compact dimensions (10mm length, 4mm width, and 1.55mm height) facilitate efficient PCB space utilization.
Compliant with RoHS and REACH directives, this switch meets environmental regulations for safer electronics manufacturing. Commonly employed in test equipment, computer peripheral devices, and portable instruments, the DG441DY-E3 offers dependable performance for analogue signal switching with CMOS logic compatibility.
The quad SPST configuration provides four independent switches per chip, enhancing functionality and versatility in complex circuits. Surface mount mounting type ensures easy assembly, supporting modern SMT manufacturing processes.
This analogue switch features CMOS logic family technology. It supports 4 elements per chip with quad SPST configuration. The device operates with a maximum supply voltage of 44V and maximum on state resistance of 100 ohms.
The operating temperature ranges from -40°C to 85°C, suitable for industrial environments. Surface mount type with a compact 16-pin SOIC package ensures easy PCB integration. Dimensions include a length of 10mm, width of 4mm, and height of 1.55mm.
Complies with RoHS and REACH standards ensuring environmental safety. Ideal for applications in test equipment, computer peripherals, and portable instruments. Explore a wide range of semiconductor components including Analogue Switches at EnvMart for reliable and efficient electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 44V.
It has a maximum on state resistance of 100 ohms.
The operating temperature ranges from -40°C to 85°C, making it suitable for industrial environments.
This analogue switch features a quad SPST configuration, providing four independent switches per chip.
The dimensions of this model are 10mm in length, 4mm in width, and 1.55mm in height.
It comes in a compact 16-pin SOIC surface mount package, facilitating easy PCB integration.
This model supports CMOS logic family technology.
Yes, it complies with RoHS and REACH standards, ensuring environmental safety.
It is commonly used in test equipment, computer peripherals, and portable instruments.
This model features a surface mount type, supporting modern SMT manufacturing processes.
The output type is compatible with CMOS and TTL logic levels.
The country of origin for this model is India.
