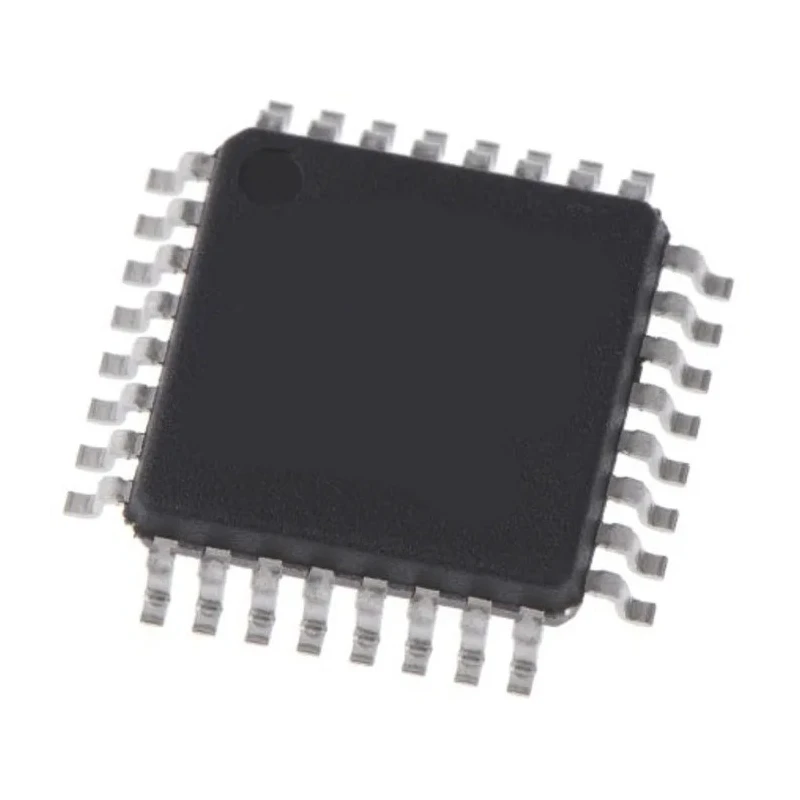

onsemi Programmable Delay Line 12.2 ns Total Delay 32-Pin LQFP MC100EP195FAG

The onsemi MC100EP195FAG is a high-precision programmable delay line IC designed for semiconductor timing applications. It operates over a supply voltage range from 3 V to 3.6 V and comes in a compact 32-pin LQFP package measuring 7 mm in length and 1.45 mm in height. This device features a total programmable delay time of 12.2 ns with the ability to set increments as fine as 10 ps, providing users full control over delay requirements.

With 10 independent delays and 1024 taps or steps available, the MC100EP195FAG delivers highly flexible timing and clock interface solutions. It supports both PECL mode (VCC=3.0 V with VEE=0 V) and NECL mode (VCC=0 V with VEE=-3.0 V), making it suitable for various signaling environments. The D[0:10] pins accept multiple logic input standards including ECL, CMOS, and TTL, enhancing its compatibility across multiple system designs.

The device includes safety clamps on inputs to protect signal integrity and a logic-controlled enable pin to force the output to a defined state for predictable operation. Its wide operating temperature range of -40°C to 85°C ensures robust performance in industrial and commercial applications.

Typical use cases for the onsemi MC100EP195FAG include automated test equipment (ATE), general-purpose data and clock interface tasks, and other timing-critical systems within industrial, laboratory, and manufacturing environments.

Operates from 3 V to 3.6 V supply voltage with surface mount LQFP package. Programmable delay from 2.2 ns to 12.2 ns in 10 ps increments. 10 independent delays and 1024 taps for flexible timing control. PECL and NECL mode operation supported.

Accepts ECL, CMOS, or TTL inputs for versatile interfacing. Safety clamps protect inputs; enable pin provides logic control over output. Compact 7 mm by 1.45 mm footprint suitable for space-constrained designs. Operating temperature from -40°C to 85°C for industrial reliability.
