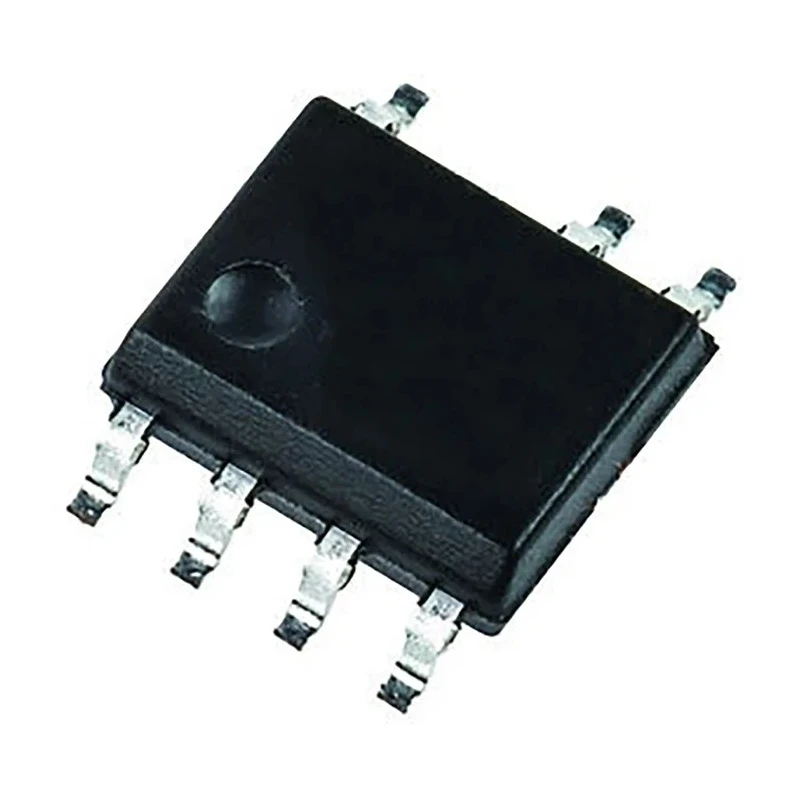

DiodesZetex Ideal Diode Controller 7-Pin SO, 4V - 20V Surface Mount, ZXGD3112N7TC
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.45mm |
| Length | 4.9mm |
| Model | ZXGD3112N7TC |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SO |
| Minimum Operating Temperature | -50°C |
| Pin Count | 7 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 4V |
| Typical Switching Time | 400ns |
| FET Type | Type N |
Key Features
- Operates as an ideal diode controller using external power MOSFETs for highly efficient switching.
- Supports supply voltage from 4V to 20V for a wide range of system compatibility.
- Compact 7-pin SO surface mount package saves board space and simplifies assembly.
- Fast typical switching time of 400ns improves response and efficiency in high-speed circuits.
- Wide operating temperature range from -50°C to 150°C for robust performance in demanding environments.
- Designed for applications such as power OR-ing, redundancy, and efficient rectification.
- No internal MOSFETs, allowing choice of external MOSFET type for flexibility.
Product Description
The DiodesZetex ZXGD3112N7TC is a high-performance ideal diode controller designed for advanced power management solutions. This controller enables an external low RDS(on) power MOSFET to function as an ideal diode, effectively replacing conventional rectifiers and providing significant improvements in forward voltage drop and energy efficiency.
With a wide compatible supply voltage range from 4V to 20V, the ZXGD3112N7TC is suitable for numerous applications in power redundancy, OR-ing systems, and DC-DC power modules. The device is presented in a compact 7-pin Surface Mount (SO) package, making it ideal for densely populated PCBs and modern assembly techniques. Its typical switching time of 400ns ensures rapid and reliable operation in high-speed power conversion and switching environments.
This controller does not include internal MOSFETs, allowing designers to select the optimum external N-type MOSFET for their specific power and efficiency requirements. It operates reliably in extreme temperature conditions, with a range from -50°C up to 150°C, ensuring stability even in harsh industrial, communications, automotive, and computing environments.
The ZXGD3112N7TC's design is aimed at improving power transfer efficiency by reducing loss from conventional diode voltage drops, making it especially valuable in systems or devices that demand high reliability and efficient power conversion. Its 7-pin SO package offers a small form factor, with a length of 4.9mm and height of 1.45mm, easing integration into space-restricted circuit boards.
Engineers deploying this device benefit from its fit for critical redundancy and OR-ing functions - ensuring uninterrupted power supply in demanding applications. The controller is suitable for telecommunications, industrial automation, instrumentation, and computing power systems where efficiency and reliability are paramount.
Explore other power management ICs and advanced Ideal Diode Controllers by DiodesZetex and similar brands in the EnvMart semiconductor catalog for reliable and efficient component sourcing.
