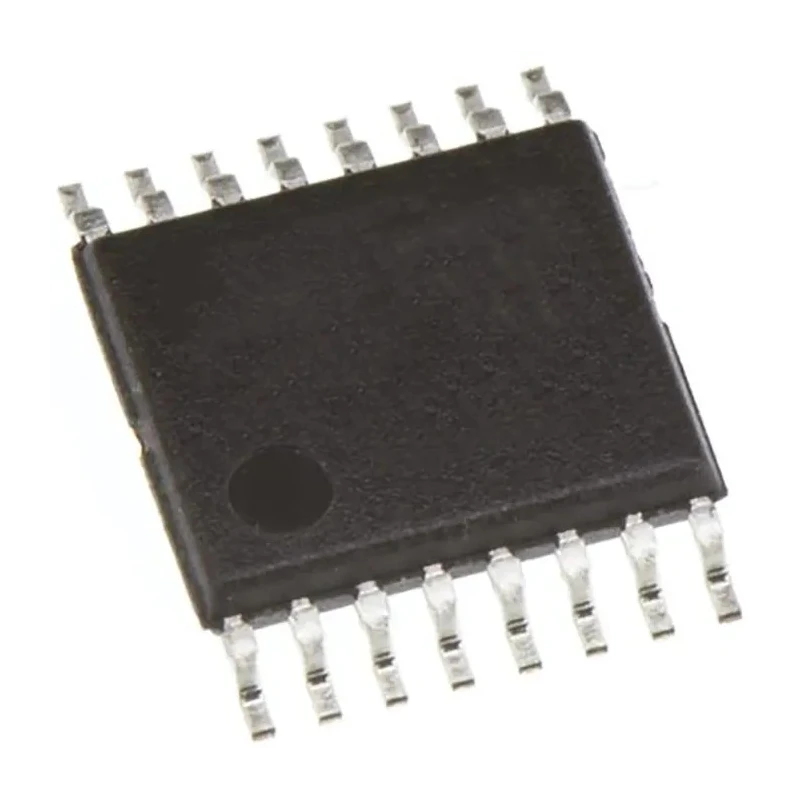

Infineon PLL Clock Buffer 16-Pin TSSOP, Maximum Input Frequency 133MHz CY2309SXI-1H

Category Clock Buffers Brand Infineon Condition New

Specifications

Country of Origin India
Brand Infineon
Height 0.95mm
Length 5.1mm
Model CY2309SXI-1H
Maximum Operating Temperature 85°C
Package Type TSSOP
Minimum Operating Temperature -40°C
Maximum input frequency 133MHz
Pin Count 16

Key Features

  • This PLL clock buffer is designed for high speed clock distribution applications.
  • It features on-chip PLL with zero delay for precise timing.
  • Operates at input frequencies up to 133MHz for demanding signal processing.
  • Compact 16-pin TSSOP package with low height of 0.95mm and length of 5.1mm.
  • Wide operating temperature range from -40°C to 85°C for industrial environments.
  • Contains two independent output banks configurable for power saving.
  • Low power consumption in power-down mode with less than 25.0 μA current draw.

Product Description

Infineon CY2309SXI-1H PLL Clock Buffer is a high-performance semiconductor device designed to distribute high-speed clock signals with minimal skew and zero delay functionality. Packaged in a 16-pin TSSOP form factor, this device supports maximum input frequencies up to 133MHz, providing reliable timing accuracy for complex electronic systems.

The device incorporates an on-chip phase-locked loop (PLL) which locks the output clocks precisely to the reference input clock. There are two banks of four outputs each, allowing flexible configuration and enabling power saving by three-stating unused outputs.

Operating over a wide temperature range from -40°C to 85°C, the CY2309SXI-1H clock buffer is robust for industrial applications. Its compact 0.95mm height and 5.1mm length package allows integration into space-constrained PCB layouts.

This clock buffer seamlessly integrates into electronic and semiconductor applications requiring stable timing signals, including telecom equipment, industrial control systems, and clock distribution networks.

This PLL clock buffer is designed for high speed clock distribution applications. It features on-chip PLL with zero delay for precise timing. Operates at input frequencies up to 133MHz for demanding signal processing. Compact 16-pin TSSOP package with low height of 0.95mm and length of 5.1mm.

Wide operating temperature range from -40°C to 85°C for industrial environments. Contains two independent output banks configurable for power saving. Low power consumption in power-down mode with less than 25.0 μA current draw.

This product is ideal for industrial, telecommunications, electronics manufacturing, and research laboratory applications requiring precise clock management. Explore more Infineon semiconductor solutions and Clock Buffers at EnvMart for professional, high-quality electronics components.

Infineon PLL Clock Buffer 16-Pin TSSOP, Maximum Input Frequency 133MHz CY2309SXI-1H
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum input frequency of this model is 133MHz, making it suitable for high-speed clock distribution applications.

It comes in a 16-pin TSSOP package, which is compact and suitable for space-constrained PCB layouts.

This clock buffer operates over a wide temperature range from -40°C to 85°C, making it robust for industrial environments.

It contains two independent output banks, each configurable for power saving by three-stating unused outputs.

The dimensions are a height of 0.95mm and a length of 5.1mm, allowing for compact integration.

In power-down mode, it consumes less than 25.0 μA of current, which contributes to energy efficiency.

This clock buffer is suitable for applications in telecommunications, industrial control systems, and clock distribution networks.

Yes, it features an on-chip PLL with zero delay for precise timing in clock distribution.

The CY2309SXI-1H has a pin count of 16, which is typical for its TSSOP package type.

Yes, it is designed specifically for high-speed clock distribution applications, ensuring minimal skew and accurate timing.

The country of origin for the CY2309SXI-1H is India.

It is classified as a PLL clock buffer, which is a type of semiconductor used for distributing clock signals.
