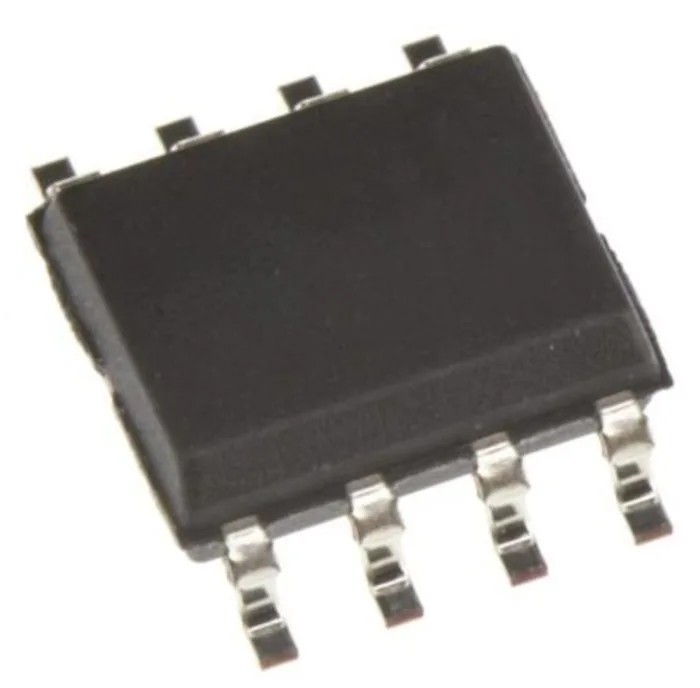

Renesas Electronics Clock Buffer 8-Pin SOIC, Surface Mount, 3.3-5 V, Max Input Frequency 50 MHz 501MLF

Renesas Electronics 501MLF Clock Buffer 8-Pin SOIC is a surface-mount semiconductor device designed to generate precise high-frequency clock signals from lower frequency crystals or clock inputs. The device uses a low-cost phase-locked loop (PLL) technique to multiply input frequencies up to 160 MHz, delivering zero ppm multiplication error and exceptionally low jitter of 25 ps, ideal for modern digital and embedded systems.

This clock buffer operates within a supply voltage range of 3.3 to 5 V and a commercial temperature range of 0°C to 70°C, making it suitable for various industrial and commercial electronic applications. It is housed in a compact 8-pin SOIC package, facilitating easy surface mounting on printed circuit boards with limited space.

The integrated output enable (OE) pin enables tri-state control of the clock output, useful for bus-oriented designs and power management. This product is compatible with a wide range of CPUs and digital logic families, supporting input crystal frequencies from 5 MHz to 27 MHz and input clock frequencies from 2 MHz to 50 MHz.

Renesas 501MLF replaces the need for traditional crystal oscillators in many systems, reducing costs while improving performance parameters such as frequency stability and jitter. It is ideal for applications in industrial electronics, communications equipment, embedded systems, and laboratory instrumentation where high-quality timing signals are essential.

Maximum input frequency of 50 MHz allowing high-speed timing applications. Operates with supply voltage from 3.3 V to 5 V ensuring versatile usage. Compact SOIC package with 8 pins suitable for tight PCB layouts. Operating temperature range from 0°C to 70°C for standard industrial use.

Low-cost PLL technology replacing traditional crystal oscillators. Produces output clocks up to 160 MHz with stable phase-locked loop operation. Output enable pin allows tri-state output control for flexible system design.

Extremely low jitter of 25 ps one sigma ensuring precise timing. Compatible with all popular CPUs and digital logic systems.

This clock buffer serves industrial electronics, embedded computing, communications, and laboratory applications demanding accurate clock distribution and synchronization. Explore more semiconductor and clock buffer products at EnvMart for your precise timing needs.
