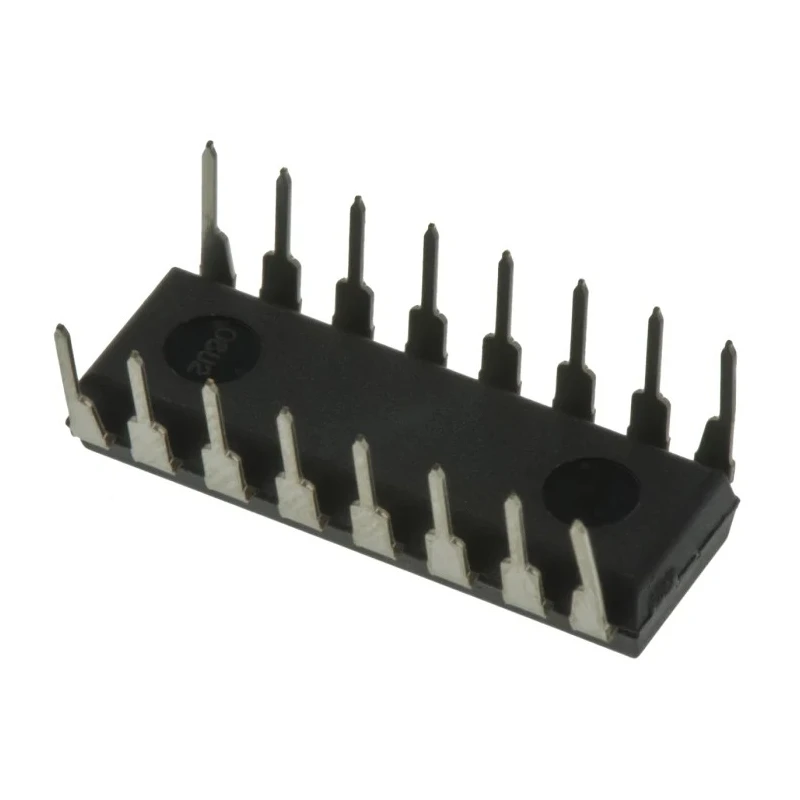

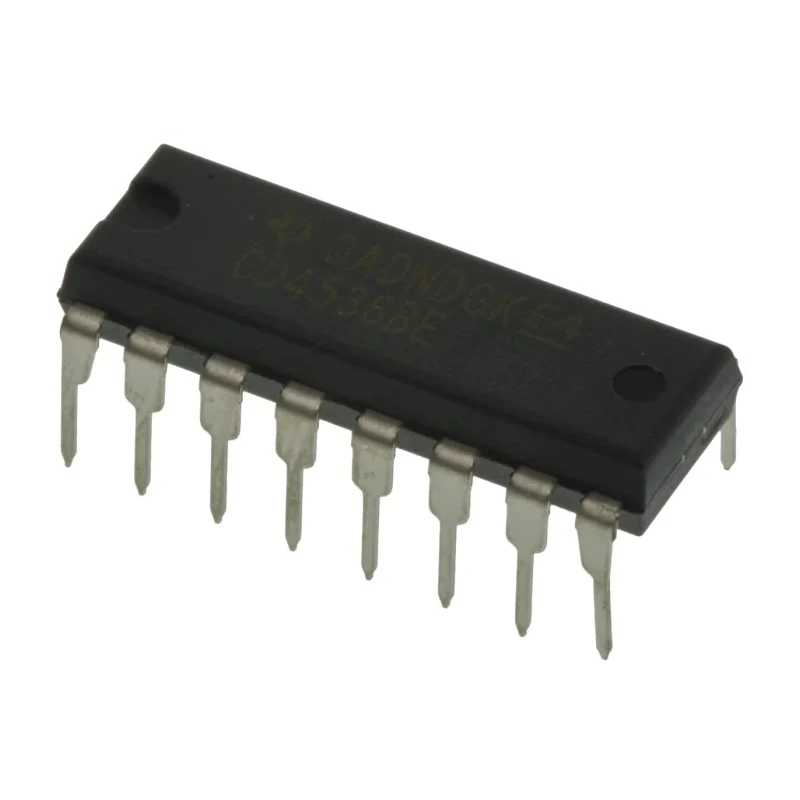

Texas Instruments Programmable Timer Circuit, 1 Internal Timer, 16-Pin PDIP, 3-18V CD4536BE

Texas Instruments CD4536BE Programmable Timer Circuit is a versatile 16-pin PDIP device engineered for precise timing control in electronic circuits. Operating within a wide voltage range of 3V to 18V, it offers robust performance for various timing applications including monostable and astable multivibrators. This device is part of the 4000 Series CMOS Logic Family, known for low power consumption and high noise immunity.

The CD4536BE features one internal timer and is mounted using through-hole technology with its PDIP package, facilitating straightforward integration into printed circuit boards. Its operational temperature range from -55°C up to 125°C allows reliable function under extreme environmental conditions.

Measuring 19.3 mm in length and 4.57 mm in height, this compact timer circuit suits numerous industrial, laboratory, and electronic manufacturing applications where accurate timing and frequency control are required. It does not hold automotive standard certifications but is ideal for standard electronic design requiring programmable timers.

Key technical aspects include a 16-pin count, no specific standards approvals, and compatibility with a broad voltage supply making it a flexible solution for clock, timing, and frequency IC circuits.

Operates with a supply voltage range of 3 to 18 volts. Features a 16-pin PDIP packaging type for through-hole mounting. Contains one programmable internal timer ideal for timing applications. Wide operating temperature range from -55°C to 125°C ensures durability.

Part of the 4000 Series CMOS Logic Family offering stable monostable and astable multivibrator functions. Suitable for various timing, clock, and frequency circuit applications. Designed without automotive certification, focusing on standard industrial use.

Compact device dimensions measuring 19.3mm length and 4.57mm height. Implements CMOS technology for low power consumption and high noise immunity.

This programmable timer circuit is suited for electronics manufacturers, industrial automation systems, and laboratory instrumentation where control of timing processes is critical. Environmentally, the device meets typical RoHS standards for compliance. Trust Texas Instruments' CD4536BE for reliability and performance in your timing circuit requirements.
