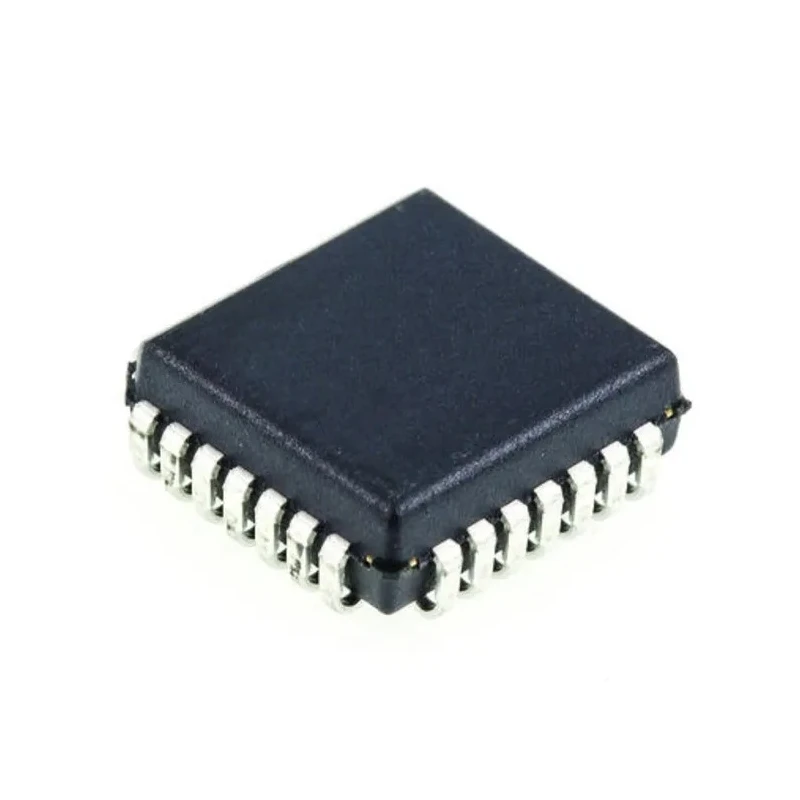

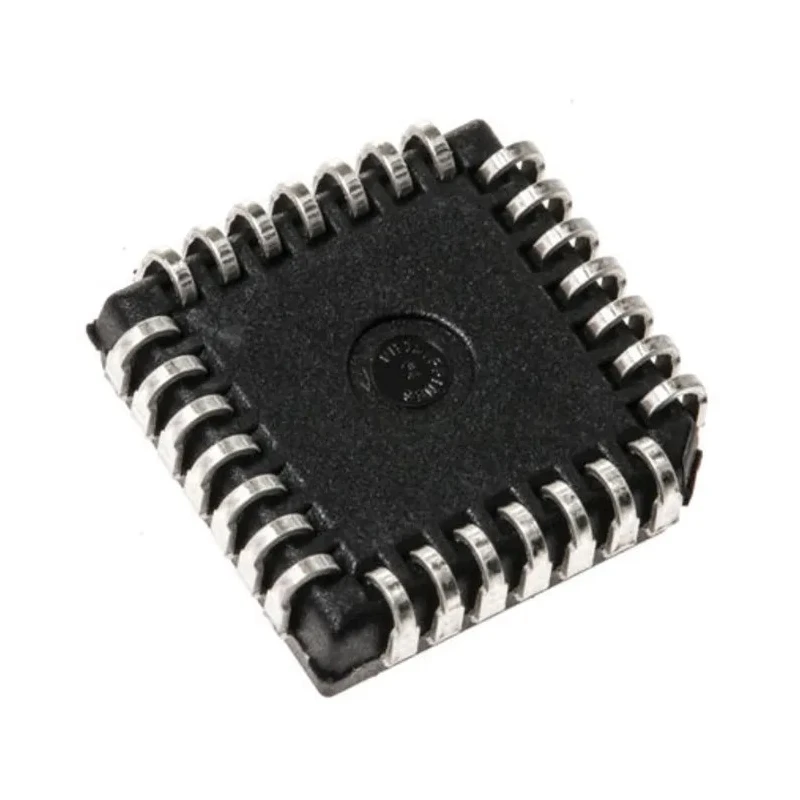

Renesas Electronics Programmable Timer Circuit 1 Internal Timer 28-Pin PLCC CS82C54Z

Renesas Electronics CS82C54Z programmable timer circuit offers high precision timing control with its integrated 1 internal timer and 28-pin PLCC surface mount package. Operating with a 4.5V to 5.5V supply voltage and clock input range of 8 MHz to 12 MHz, it efficiently handles timing functions in electronic devices.

This timer features three independent 16-bit counters allowing for multi-functional timing configurations and supports six programmable counter modes with both binary and BCD counting capabilities.

Designed for compatibility with TTL logic families, the CS82C54Z facilitates seamless integration in digital circuits while maintaining low power consumption for extended use. The device supports a status read back command, providing users the ability to monitor timer operation effectively.

Its operating temperature range is between 0°C and 70°C, making it suitable for industrial and commercial electronic applications requiring stable performance. The compact dimensions of 11.58 mm by 3.69 mm make it suitable for space-constrained PCB designs.

The timer includes three independent 16-bit counters for versatile timing applications. Offers six programmable counter modes with binary or BCD counting options. Fully TTL compatible and designed for low power consumption operation.

Supports status read back commands to monitor counter status. Operates reliably at temperatures from 0°C to 70°C, suitable for industrial electronics. Compact form factor with dimensions of 11.58 mm length and 3.69 mm height.

RoHS compliant ensuring environmentally friendly design. Single 5 V power supply simplifies integration in electronic systems.

This timer circuit is ideal for use in industrial, laboratory, manufacturing, and commercial electronics systems, providing precise timing and control functions necessary for automation and embedded system designs.

Explore more Timer Circuits and semiconductor components to optimize your project requirements in the Electronics & Electricals category at EnvMart.
