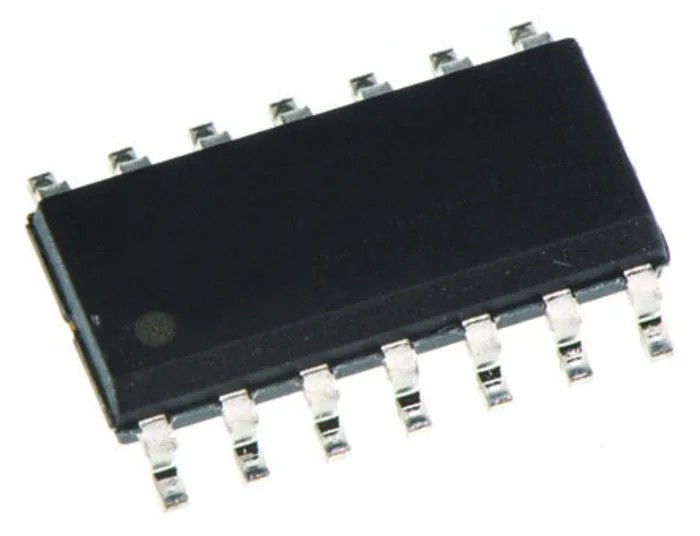

Texas Instruments Schmitt Trigger Input CMOS Inverter 6 Elements, 14-Pin SOIC SN74AC14DR

Texas Instruments SN74AC14DR Schmitt Trigger Input CMOS Inverter is a high-performance electronic component designed to provide stable and fast switching operations in digital circuits. This device contains six independent inverter gates, each with Schmitt trigger inputs, allowing clear signal transitions even in noisy environments, making it ideal for industrial electronics, automation systems, and embedded designs.

The inverter operates reliably across a wide supply voltage range from 2 V to 6 V, with compatibility extending to lower voltages as well. Its fast maximum propagation delay of 15 nanoseconds ensures minimal lag in signal processing, suited for high-speed logic circuits. The surface-mount 14-pin SOIC package provides a compact footprint facilitating space-saving PCB layouts and efficient manufacturing assembly.

Designed to operate within a temperature range of -40°C to 85°C, the SN74AC14DR ensures robust performance under varying environmental conditions commonly found in industrial and commercial applications. Its logic family is AC type and supports CMOS input and output compatibility, providing versatility in circuit interface design.

Contains six independent Schmitt trigger inverter gates for noise-immune signal shaping. Wide operating voltage range from 2 V to 6 V with support for 1.5 to 5.5 V operation. Fast switching with a maximum propagation delay time of 15 nanoseconds.

Compact 14-pin SOIC surface-mount package dimensions: 8.65 mm length, 3.91 mm width, 1.58 mm height. Extended operating temperature range from -40°C to 85°C. Maximum output currents: -24 mA (High Level), 24 mA (Low Level) for driving various logic loads.

AC logic family with CMOS compatibility for input and output signals.

This product is perfectly suited for use in industrial control systems, consumer electronics, and embedded processor interfaces requiring reliable inverter logic functions with Schmitt trigger input to ensure clean signal transitions. Its compact package and wide operating specifications also enable versatility in design and application across various electronics manufacturing sectors.
