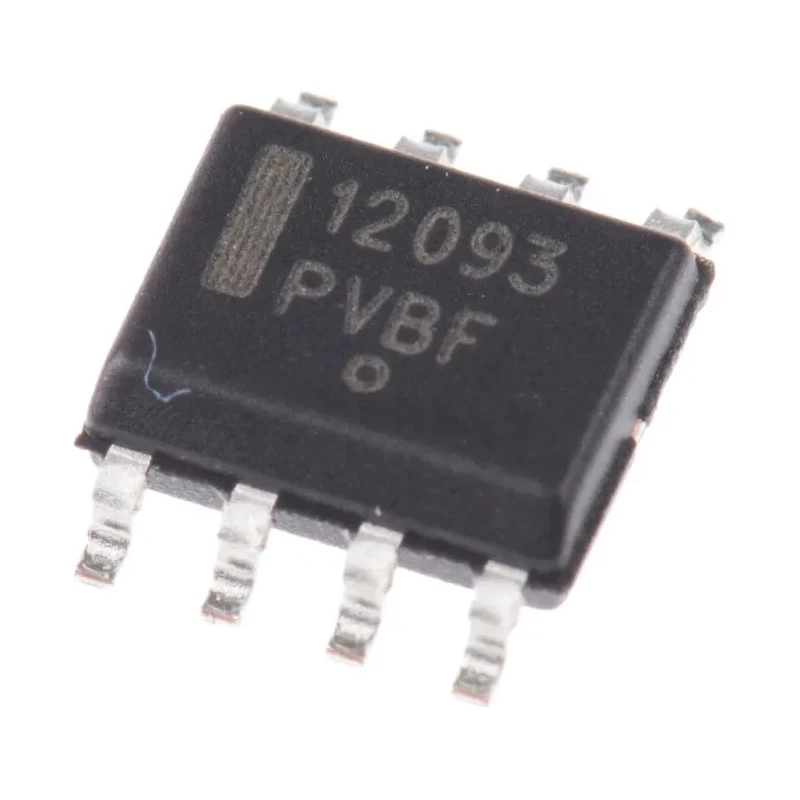

onsemi RF Prescaler 1.1 GHz, 8-Pin SOIC, Surface Mount MC12093

onsemi MC12093 RF Prescaler is designed for clock division in high-frequency signal processing, providing selectable division of 2, 4, or 8 to suit various RF, communication, and test instrumentation needs. Its wide frequency range, from 100 MHz up to a maximum of 1.1 GHz, makes it compatible with modern digital and analog systems requiring precise frequency management.

The MC12093 operates at a typical output voltage of 0.8 V and draws a low supply current of 3 mA, ensuring efficient performance with minimal power consumption. Its surface mount SOIC-8 package eases PCB integration and streamlines production for commercial and industrial electronics applications. The device supports supply voltages from 2.7 V to 5.5 V, offering flexibility in system-level design.

With robust operation supported across an industrial temperature range of -40°C to 85°C, the prescaler is suitable for environments demanding stability and reliability. Its compact dimensions, measuring 5 mm in length and 1.5 mm in height, help facilitate dense layouts and miniaturized assemblies. The MC12093 is particularly useful in communication infrastructure, wireless modules, broadcasting, and frequency synthesizer circuits.

Division ratios of 2, 4, and 8 allow efficient frequency reduction for phase-locked loop (PLL) circuits, frequency counters, and signal generators. It is not automotive-qualified, but meets general-purpose standards needed for industrial semiconductor applications.

Utilize this prescaler in clock divider systems or RF front-end processing where precise control and low-noise division are required. Its reliability and proven performance make it a preferred component for designers and engineers seeking robust RF solutions.

Explore more in the Prescaler category and discover onsemi's broad semiconductor portfolio for advanced electronics and communication systems.
