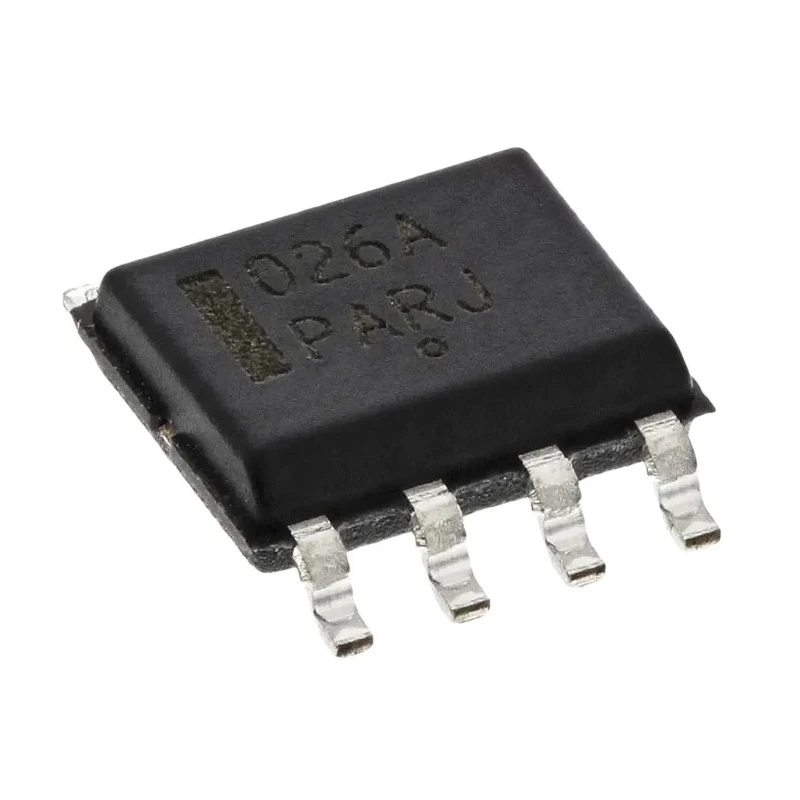

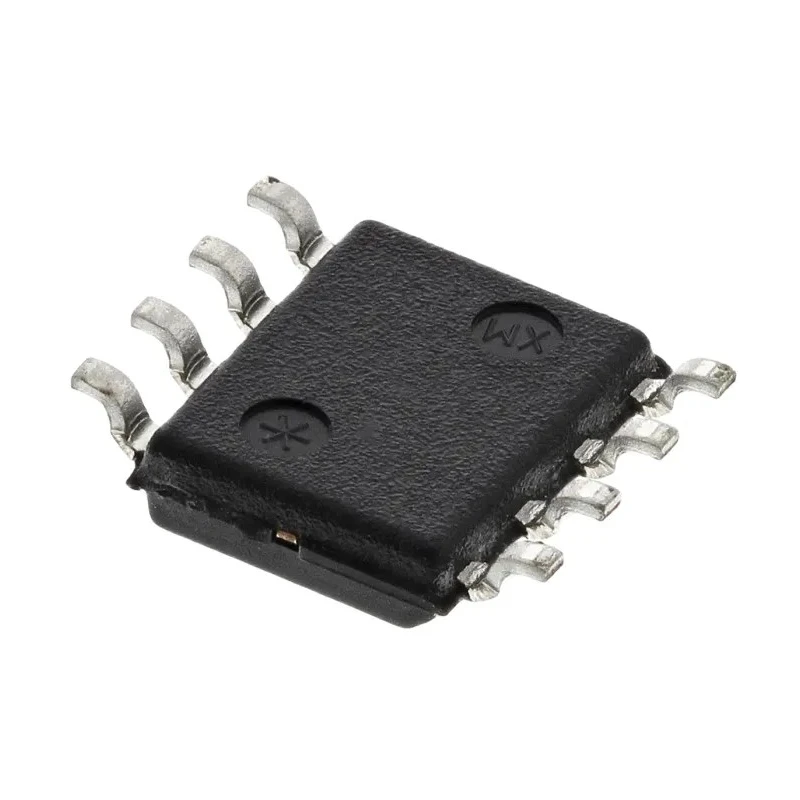

onsemi Dual Modulus Prescaler 1.1 GHz 8-Pin SOIC Surface Mount MC12026A

Free Delivery in India | Lowest Global Shipping Charges

onsemi Dual Modulus Prescaler 1.1 GHz 8-Pin SOIC Surface Mount MC12026A

Name: onsemi Dual Modulus Prescaler 1.1 GHz 8-Pin SOIC Surface Mount MC12026A
Brand: onsemi
SKU: 119378



Category Prescaler Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.5mm
Length	5mm
Model	MC12026A
Mount Type	Surface
Series	MC12026A
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Division	8/9/16/17
Standards/Approvals	RoHS, Pb-Free
Maximum Frequency	1.1GHz
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Minimum Frequency	100MHz
Typical Output Voltage	1.6V
Typical Supply Current	4mA

Key Features

Operates with a maximum frequency of 1.1 GHz and minimum of 100 MHz.
Typical output voltage of 1.6 V ensures signal integrity.
Supplies a typical current of 4 mA with supply voltage ranging from 4.5 V to 5.5 V.
Features surface mount design with an 8-pin SOIC package for compact PCB integration.
Operating temperature range from -40°C to 85°C for extended industrial applications.
Complies with RoHS and Pb-Free standards promoting environmental safety.
Division series supports 8/9/16/17 count frequencies suitable for communication modules.
Precise length of 5 mm and height of 1.5 mm aid in efficient PCB footprint management.

Product Description

onsemi MC12026A Dual Modulus Prescaler is a high-performance semiconductor device designed for frequency division applications. Packaged in an 8-pin SOIC surface mount form factor, it supports wide frequency ranges from 100 MHz to 1.1 GHz, making it ideal for communication and wireless electronic components.

This prescaler delivers a typical output voltage of 1.6 V and operates reliably within supply voltages of 4.5 V to 5.5 V. Its typical supply current of 4 mA ensures energy-efficient operation without sacrificing performance.

Engineered for industrial and commercial electronic use, the MC12026A supports division counts of 8, 9, 16, and 17, providing versatility for clock division tasks in RF applications and other frequency synthesis circuits.

The device features a compact size with a length of 5 mm and height of 1.5 mm, facilitating its integration on printed circuit boards with limited space. Its operational temperature spans from -40°C to 85°C, suitable for harsh environmental conditions commonly found in industrial and automotive electronics (though not automotive standard certified).

Operates between 100 MHz and 1.1 GHz frequency range. Typical output voltage of 1.6 V for signal clarity. Low current consumption of 4 mA typical supply current. 8-pin SOIC surface mount package ensuring small PCB footprint.

Industrial temperature rating from -40°C to 85°C. RoHS and Pb-Free compliant for environmental safety. Supports division values of 8, 9, 16, and 17 for versatile frequency division. Compact dimensions aid in dense electronic assemblies.

This Prescaler is widely used in industrial communication equipment, RF module design, manufacturing of electronic semiconductor assemblies, and other applications requiring precise frequency division and clocking.
